FR NBR Rubber Diaphragm Seal For Dust Removal Equipment Solenoid Valve Diaphragm

Place of Origin CHINA
Brand Name HONGUM
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 5sets
Price USD 5-150/PCS
Packaging Details CARTON
Delivery Time 5-15DAYS
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000SETS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Toughness, Wear Resistance, High Strength Name FR NBR Rubber Diaphragm Seal
Color Black Or Customized Material FR NBR
Temperature -20℃~80℃ Model HF-DN62、HF-DN62Y
High Light

NBR Rubber Diaphragm Seal

,

FR Rubber Diaphragm Seal

,

Nbr Diaphragm Seal

Leave a Message
Product Description

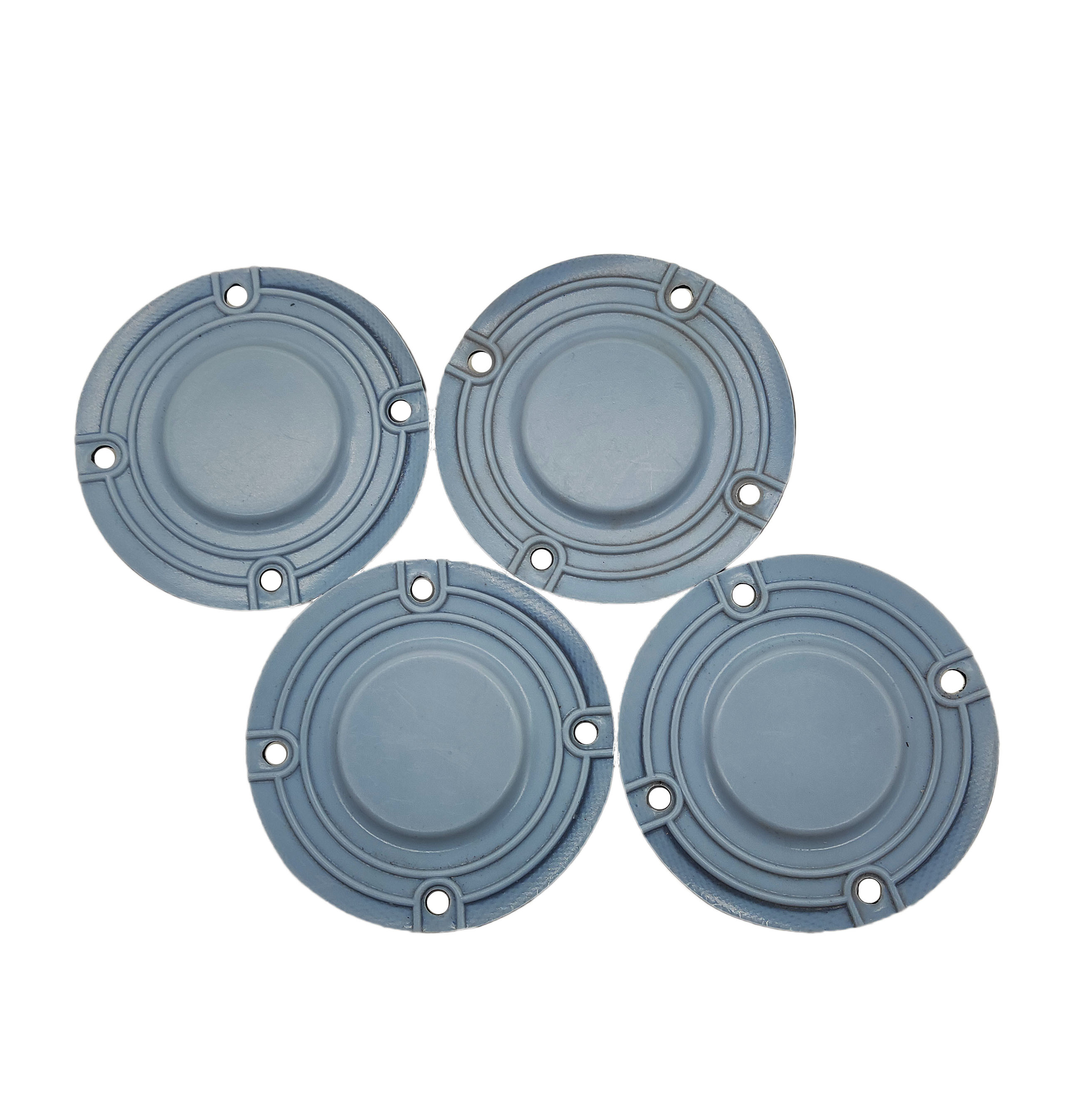

FR NBR Rubber Diaphragm Seal For Dust Removal Equipment Solenoid Valve Diaphragm





Brief introduction of electromagnetic pulse valve diaphragm:



The electromagnetic pulse valve diaphragm is a whole piece of rubber diaphragm installed with a riveting head used to block the compressed air pipeline or the air outlet of the blocking valve, a venting unloading hole and a bolt hole for fixed support around it. It is the key control part in the electromagnetic pulse valve.





Working principle:



The electromagnetic pulse valve diaphragm divides the pulse valve into two air chambers. When the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, the pulse valve is in a closed state, the pulse controller outputs a signal to move the armature of the pulse valve, the vent hole of the air chamber behind the valve is opened, and the rear air chamber quickly loses pressure, making the The diaphragm moves backward, the compressed air is blown through the outlet of the valve, the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the electromagnetic pilot of the pulse valve is reset, the vent hole of the rear air chamber is closed, and the back When the pressure of the air chamber rises, the diaphragm of the pulse valve is close to the air outlet of the valve, the pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.



ZCK pilot solenoid valve rubber diaphragm is a brand of functional rubber diaphragm, which belongs to the special rubber diaphragm of ZCK solenoid valve. ZCK solenoid valve diaphragm is one of the most commonly used in the market. Rubber, etc.



Product Materials NBR,NR
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario Bag filter devices /precipitator equipment





Rubber cloth diaphragm:



In the rubber diaphragm crowd, people are accustomed to refer to all diaphragms as cloth diaphragms. Indeed, most of the rubber diaphragms now have cloth interlayers, but there are also a small number of diaphragms that are purely rubber-like. The pure rubber diaphragm also has its own advantages compared with the rubber cloth cloth diaphragm. For example, in terms of processing technology, the pure rubber diaphragm can be thinner than the rubber cloth cloth diaphragm. Under some special environmental requirements, it can only be produced without adding cloth, and the disadvantage is itself In the case of already very thin, if the ambient frequency or pressure is high, the service life of the diaphragm may be affected. The advantages of the rubber cloth diaphragm are obvious. Although the pure rubber diaphragm can be processed thinner, the rubber cloth diaphragm in the modern development, because of the upgrading and progress of the technology, like the rubber cloth cloth type rubber film. The thickness of the film can also be controlled at 1.2mm, and the 1.2mm rubber cloth diaphragm is no problem in most industrial environments.



FR NBR Rubber Diaphragm Seal For Dust Removal Equipment Solenoid Valve Diaphragm 0FR NBR Rubber Diaphragm Seal For Dust Removal Equipment Solenoid Valve Diaphragm 1FR NBR Rubber Diaphragm Seal For Dust Removal Equipment Solenoid Valve Diaphragm 2FR NBR Rubber Diaphragm Seal For Dust Removal Equipment Solenoid Valve Diaphragm 3
