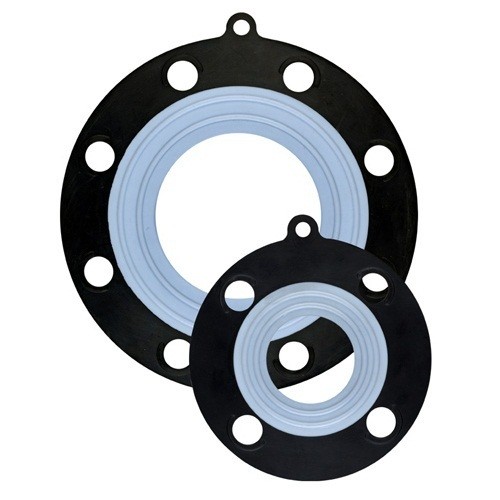

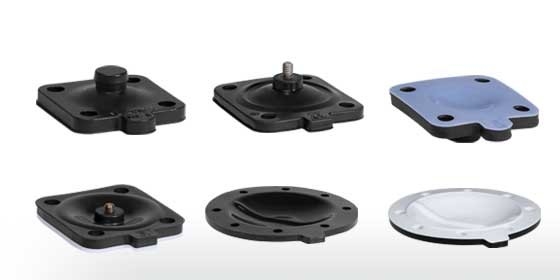

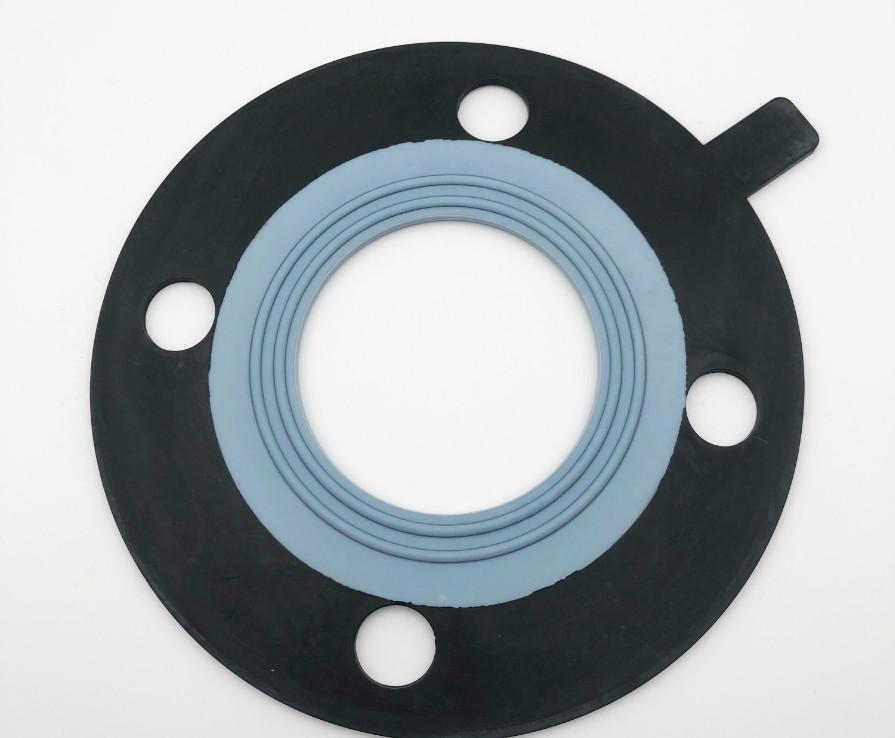

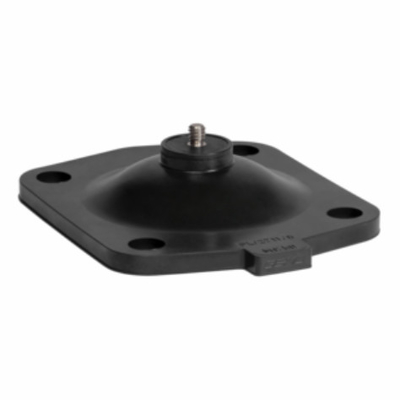

Ethylene Propylene Diene Monomer Rubber Diaphragm Seals EPDM EP EPT Gaskets
Introduction:
Hongum specializes in the manufacturing of precision die cut and molded EPDM rubber gaskets and seals for applications and industries worldwide. EPDM rubber is one of the most popular, versatile materials available. EPDM is known for its excellent resistance to heat, ozone, sunlight and aging. Its distinctive ability to stabilize color and resist harsh weather conditions makes it and ideal choice for outdoor applications. EPDM features excellent resistance to water, steam, alkalis, acids and oxidants. It is also sulfur and peroxide curable. EPDM can withstand temperatures spanning from -40°F to 250°F, intermittent to +275°F.
The main products of rubber sealing gaskets are: silicone pads, nitrile rubber pads, fluorine rubber pads, and other rubber pads.

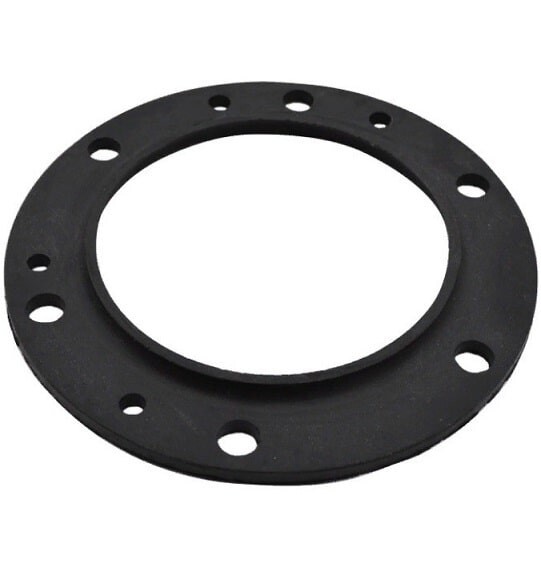

Die Cut EPDM Gaskets
Hongum provides die cut EPDM gaskets and waterjet cut EPDM gaskets in a wide variety of grades, thicknesses, and hardness. The standard thickness of EPDM rubber ranges from 1/64″ to 1/4″ thick. EPDM is generally black in color with the exception of FDA Approved EPDM which is white. The hardness (durometer) of EPDM rubber typically spans from 40 to 80 durometer, Shore A. EPDM rubber is available with or without pressure sensitive adhesive (PSA) backing.
Molded EPDM Gaskets
Hongum specializes in EPDM gaskets and seals. Our custom EPDM molding capabilities include Compression Molding, Transfer Molding, and Rubber Injection Molding. EPDM compounds are available from 40 to 90 durometer, Shore A. EPDM rubber most commonly is black in color however custom color compounding is available upon request. EPDM molding tolerances are compliant with rubber molding industry standard RMA A2 Precision tolerances.
Available EPDM Grades
Commercial (Economy) Grade EPDM
High Grade (Premium) EPDM
Peroxide Cure EPDM
White FDA Approved EPDM
EPDM Sponge
Parameters:
| Product name | Operating temperature | Operating pressure | Common specifications |
| Nitrile rubber gasket | -20℃~110℃ | PN<=16MPa | DN15～DN400 |
| gasket | -20℃~200℃ | PN<=16MPa | DN15～DN400 |
| Natural rubber gasket | -50℃~80℃ | PN<=16MPa | DN15～DN400 |
| Neoprene gasket | -20℃~100℃ | PN<=16MPa | DN15～DN400 |
| EPDM Gasket | -57℃~176 | Pressure<2.5MPa | DN15～DN400 |
| Silicone rubber gasket | -100℃~300℃ | Pressure<3.0MPa | DN15～DN400 |
