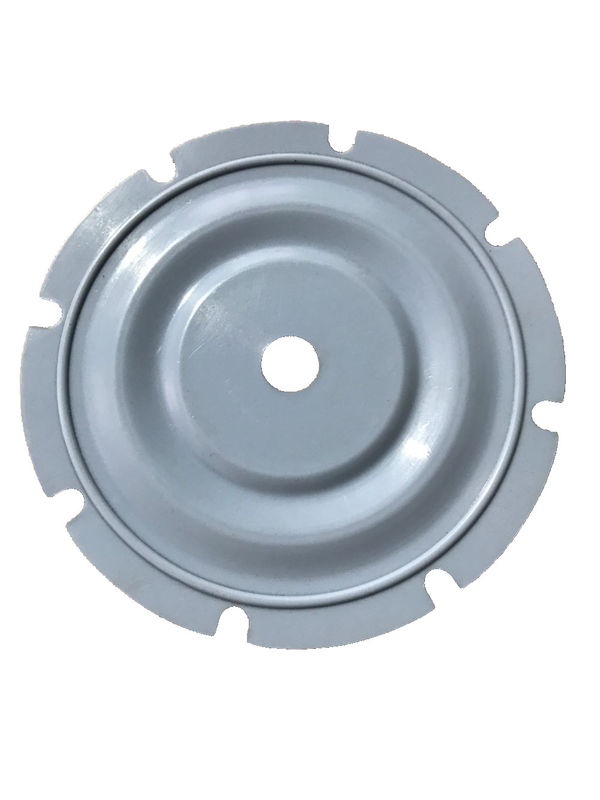

PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment

Place of Origin CHINA
Brand Name HONGUM
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 5pcs
Price 30-500usd / pc
Packaging Details Carton packing
Delivery Time 5-25days
Payment Terms T/T, L/C
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Rigidity, Strength And Compression, Rebound, Compensatory Name Diaphragm For Metering Equipment
Material PTFE+EPDM、NBR Product Performance Acid And Alkali Resistance, In Line With The Requirements Of The Medical And Health Level
Working Envieroment Electronics Industry, Chemical And Pharmaceutical Plants Color Black/Grey/ White
High Light

NBR Rubber Reinforced Diaphragms

,

EPDM Rubber Reinforced Diaphragms

,

Metering Equipment Diaphragms

Leave a Message
Product Description

PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment



Performance:



1 100% pure PTFE sealing surface provides a clean, non-polluting sealing surface.

2, the unique composite process, PTFE firmly adhered to the rubber elastomer, preventing layering and leakage.

3, in the electronics industry, chemical plants and pharmaceutical plants are the choice.

4, resistant to acid-base metals, element fluorine, other chemical media.

5, good rigidity, strength and compression, rebound, compensatory, can meet the higher pressure and more demanding conditions.





Introduction:



• (Sanitary metering pump diaphragm) Metering pump composite rubber diaphragm as the name suggests, two kinds of rubber materials compound together to form a rubber diaphragm. Composite rubber diaphragm including natural rubber + PTFE rubber or natural rubber + nylon cloth surface, which PTFE rubber + ordinary rubber composite together to form the rubber diaphragm is widely used in the market, this composite rubber diaphragm has another name, called PTFE composite rubber diaphragm.





PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment 0PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment 1PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment 2PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment 3







• PTFE composite rubber diaphragm is made into metering pump rubber diaphragm, diaphragm valve composite diaphragm, the size of DN25, DN40, DN50, DN70, DN90, DN100 and other sizes, used in different types of metering pump and diaphragm valve.



• Dosing metering pump diaphragm is made of advanced EPDM or NBR as the main body, in its effective sealing part composite by special activation treatment of 100% pure PTFE shell, mainly suitable for food, chemical, pharmaceutical and other industries.

PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment 4PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment 5

• (Tooth form) Outer ring like "tooth" of the composite metering pump diaphragm and daily sees the metering pump diaphragm, there is no big difference, nothing more than appearance design is according to the requirements of diaphragm installation from metering pump to set. Metering pump composite membrane materials are also made of PTFE + EPDM, the difference is in the process and mold for a little change, to ensure that the diaphragm in the mold better molding, as well as the production of the finished product more beautiful.

PTFE EPDM Rubber Reinforced Diaphragms for Metering Equipment 6

• (Brands of metering pump diaphragm) Metering pump diaphragm is made of EPDM + PTFE double-sided composite, is a kind of gasket can be used in food, chemical, pharmaceutical environment, combined with PTFE temperature resistance, acid resistance and EPDM excellent elastic, greatly enhance the service life of the gasket. The valve of food pipeline used by pharmaceutical factories and food processing units and the flow medium of pipeline need to be rinsed frequently with acid washing liquid to ensure the cleanliness of pipeline and ensure the high requirements of food grade of production products. The ordinary gasket is made of a single tetrafluoride material. Although it can effectively prevent the erosion of acid washing liquid, it has a low service life due to the general elasticity of the material itself and the high frequency of use. The special diaphragm for pharmaceutical pump is different from the single PTFE gasket, which has the ozone resistance, high temperature resistance, steam resistance and excellent elastic retention at low temperature and high temperature of EPDM rubber in the case of effective corrosion resistance.





Materials:



EPDM/ PTFE composite diaphragm is widely used in water for injection or pure steam and other high temperature sanitary conditions

It has both the high elasticity of EPDM and the corrosion resistance of PTFE. In the biological and pharmaceutical industry, only EPDM and PTFE (TFMTM) are available. At present, only these two materials meet the FDA certification and meet the various needs of this industry. TFMTM is the second generation of improved PTFE, which has better diffusion than the traditional PTFE. And has been as a standard for some manufacturers.





Our service:



1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.
