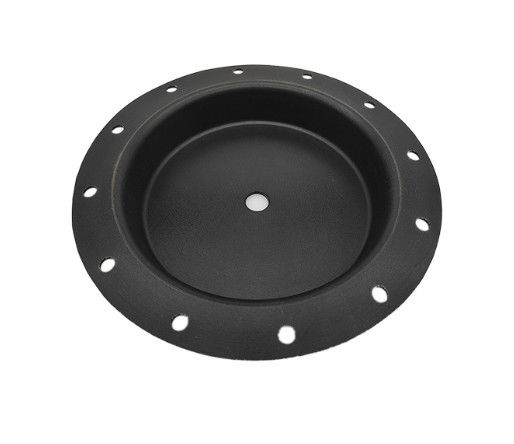

Self Actuated Pneumatic Valve Diaphragm

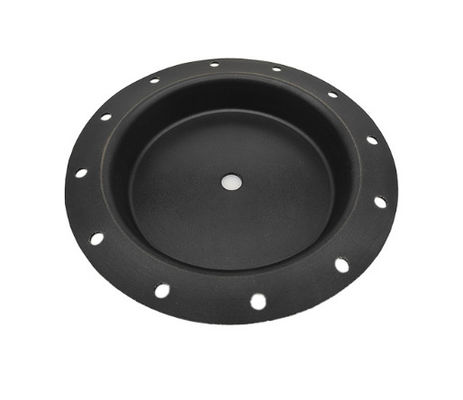

  • Self Actuated Pneumatic Valve Diaphragm

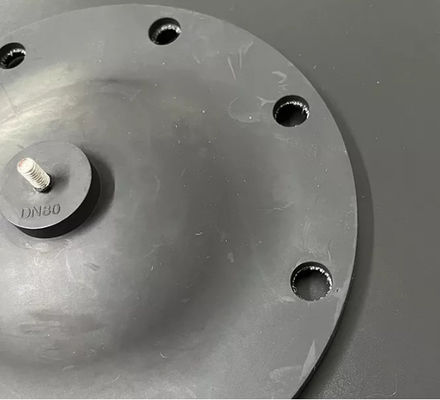

  • Self Actuated Pneumatic Valve Diaphragm

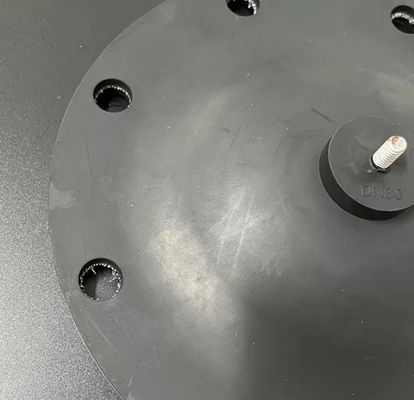

  • Self Actuated Pneumatic Valve Diaphragm
Place of Origin CHINA
Brand Name HONGUM
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 5 PCS
Price USD 4-50/PCS
Packaging Details Poly bag+carton box
Delivery Time 7-15 days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Strong Sealing, Aging Resistance Name Self-actuated Pneumatic Diaphragm
Usage Scenario Industrial Mechanical Cylinder Material NBR, NR, CR, FR
Color Black Temperature -20°-80°
High Light

Self Actuated Pneumatic Valve Diaphragm

,

aging resistance Pneumatic Valve Diaphragm

,

NBR diaphragm valve gasket
Leave a Message
Product Description

Self Actuated Pneumatic Valve Diaphragm Valve Gasket





Product overviews:



Pneumatic valve diaphragm is an important part of pneumatic actuator. It is usually butterfly shaped, and its sidewall runs from the cylinder to the piston. It's designed as a double layer to take pressure in both directions. Its ability to withstand high pressures is limited due to its wide circumferential and asymptotic bias sidewall. The effective pressure will change accordingly during the stroke.





Features: Unique processing technology and the material selection, not only maintain the material properties, but effectively ensure the service life.





Quick details:


1. Product Materials: NBR, NR, CR, FR
2. Operating Temperature: -20℃~80℃
3. Service Life: ≥1000000 times
4. Usage Scenario: Industrial mechanical cylinder
5. Product features: strong sealing, aging resistance, tear resistance, wear resistance, long service life, good elasticity
6. Place of Origin: Hebei, China
7. Product name: Pneumatic diaphragm pump diaphragm, pneumatic valve diaphragm, pneumatic diaphragm



Product Materials NBR,NR
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario Industrial mechanical cylinder





Diaphragm parameters of pneumatic control valve:



Diameter: 5-1500mm

Material: Nitrile rubber, natural rubber

Temperature Resistance: -35° C to 300° C

Tensile strength: ranging from 0.1 to 15Mpa





Introduction:



Diaphragm is an important component of pneumatic diaphragm actuator, when the air source is normal. If the actuator does not move, you should think about whether the diaphragm is broken or not installed properly. When there are defects such as sharp corners or burrs on the surface of the metal contact surface, the diaphragm will be punctured, and the diaphragm must not leak, the diaphragm has been used for too long, and the material quality will also affect the use. Before installation, check the parts for bumps, damage, deformation, peeling paint or other abnormal phenomena, and replace them if they are defective. Replaced parts must be inspected and qualified before they can be used, and records should be kept.





Item

Operating area

cm²

 Size
A B C D h H T R1 R2 R3 φ1 φ2
ZMLB-0 35 130 126 95 75 1 20 1 6.5 6.5 / 8×φ5 /
ZMLB-1 50 145 130 90 80 4 7 2 8 8 8 8×φ7 8×φ12
ZMLB-2 80 165 150 100 85 7 15 2.5 7 8 8 8×φ7 8×φ13
ZMLB-3 70 195 175 120 96 18 25 2 6.5 4.5 6.5 10×φ8.5 /
ZMLB-4 90 200 187 115 90 8 25 3 12 15 12 8×φ9 /
XKK-1   230 无孔 175 150 5 15 1.5 12 6 12 Nonporous Nonporous
XHD-1   255 225 140 120 7… 16 2 3 17 14 12×φ9 /
XDG-1   255 235 175 155 10 50 3 7 5 10 12×φ9 /
ZMLB-5 250 255 245 190 160 8 38 3 11 7 15 12×φ6 12×φ12
ZMLB-6 200 268 243 195 154 18 33 1.5 10 6.5 6.5 12×φ13
ZMLB-7 250 288 270 180 160 28 28 4 8 11 8 14×φ8.5 /
ZMLB-8 350 338 312 250 211 23 45 2.5 9.5 6.5 8.5 18×φ10 /
ZMAB-10 100 194 174 130 110 5 15 2 5 8 / 8×φ9 8×φ15
ZMAB-1A 150 205 185 135 115 10 24 2 5 7 12 8×φ9 8×φ15
ZMAB-1B 200 235 215 155 135 12 20 2.5 6 9 10 12×φ9 12×φ15
ZMAB-2 280 285 265 195 155 8 33 2 12 12 15 12×φ9 12×φ15
XDG-2   298 278 220 195 10 60 3 10 8 10 12×φ9 /
ZMAB-3A 400 306 286 256 196 8 38 2 9 9 9 12×φ9 12×φ15
ZMAB-3B 420 325 305 220 180 18 45 3 8 15 10 16×φ9 16×φ15
ZMAB-4A 630 410 386 275 225 18 60 3 10 14 14 16×φ11 16×φ15
ZMAB-4B 600 394 374 290 230 18 60 2.5 12 14 14 16×φ11 16×φ15
XDG-2   395 375 320 300 15 80 3 13 7 10 16×φ11 /
ZMAB-5 1000 195 470 365 295 16 70 3 20 26 30 20×φ11 20×φ18
ZMAB-6A 1600 616 586 460 360 45 100 4 14 20 20 20×φ11 20×φ16
ZMAB-6B 1600 640 610 460 360 46 102 4 14 20 20 24×φ12 24×φ18
S1 70 176 156 100 72 10 33 3 9 9 10 12×φ9— 12×φ14
S2 100 195 175 110 80 13 35 2.5 7 10 14 12×φ⁹ 12×φ14
ZMAB-22 350 285 265 220 190 0 35 2 10 12 / 12×φ9 12×φ15
ZMAB-23 350 285 265 220 190 0 48 2 10 12 / 12×φ9 12×φ15
ZMAB-34 560 360 336 285 235 0 65 2.5 10 14 /   16×φ15
ZMAB-45 900 470 440 370 300 0 98 3 20 26 / 18×φ11 18×φ18
HA-2   267 248 190 160 10 39 2 13 8/8 13 10×φ9 10×φ15
HA-3   350 330 265 225 12 50 2 12 8 18 16×φ9 16×φ15
xzs-1   126 114 96 74 0 10 3 0 10 10 6×φ7 /
XZS-2   135 122. 103 78 0 15 3 0 7 7 6×φ7 /
XZS-3   186 172 150 112 0 15 3 0 15 20 8×φ7 /
XZS-4   234 218 194 153 0 18 3 0 10 10 12×φ7 /
XDY-1   110 108 95 80 0 20 3 0 45° 3 O-ringφ8
XDY-2   150 147 132 100 0 22 3 0 45° 4 O-ringφ8.5
