NBR NR CR FR Pneumatic Valve Diaphragm With Cloth Clip



Diaphragm parameters of pneumatic control valve:


Diameter: 5-1500mm
Material: Nitrile rubber, natural rubber
Temperature Resistance: -35° C to 300° C
Tensile strength: Ranging from 0.1 to 15Mpa



Materials details:

Common materials for pneumatic diaphragm are: natural rubber (NR), nitrile butadiene rubber (NBR), the performance of the two materials can meet the needs of most industrial environments. In special industrial environments (high temperature resistance, acid and alkali resistance) could use EPDM, fluorine rubber (FKM), neoprene rubber (CR) for production, but the cost is relatively high.

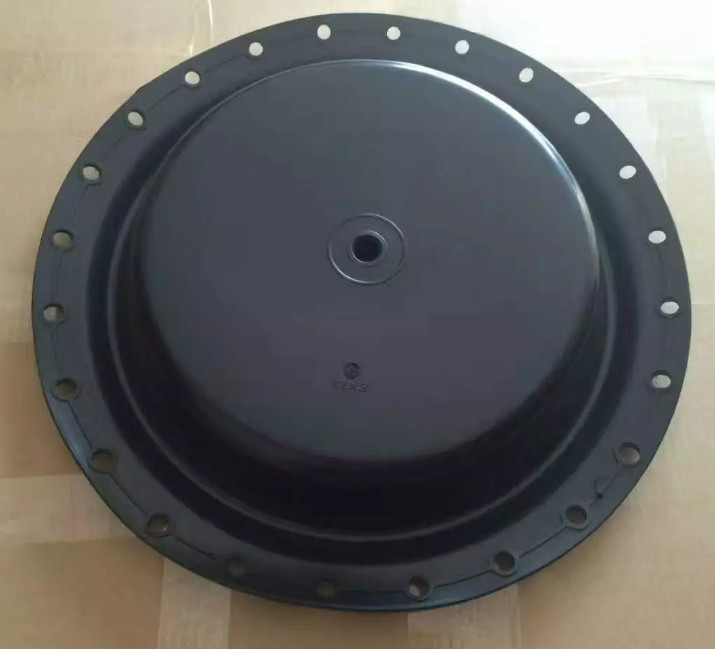

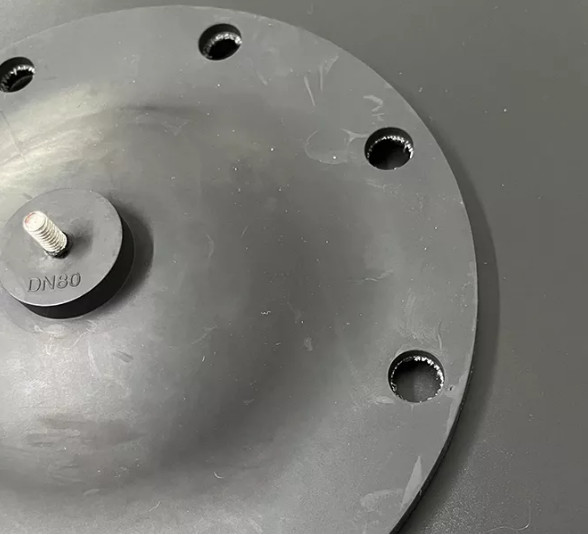

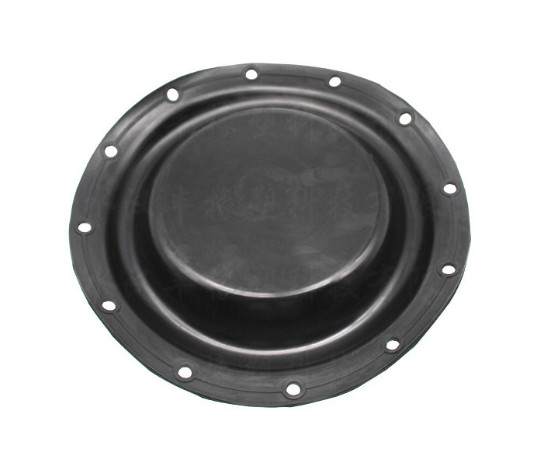

NBR NR CR FR Pneumatic Valve Diaphragm With Cloth Clip 0NBR NR CR FR Pneumatic Valve Diaphragm With Cloth Clip 1NBR NR CR FR Pneumatic Valve Diaphragm With Cloth Clip 2

Introduction:

The pneumatic diaphragm control valve is a circular diaphragm-shaped elastic sensitive element. When the two sides of the diaphragm are subjected to different pressures (or forces), the diaphragm strain moves toward the side with the lower pressure. Its center produces a displacement that has a certain relationship with the pressure difference.



Selling point:


1. Product Materials: NBR, NR, CR, FR
2. Operating Temperature: -20℃~80℃
3. Service Life: ≥1000000 times
4. Usage Scenario: Industrial mechanical cylinder
5. Product features: strong sealing, aging resistance, tear resistance, wear resistance, long service life, good elasticity
6. Product grade: SSS


Product Materials NBR,NR
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario Industrial mechanical cylinder




Specifications:



item

Operating area
cm²

 size
A B C D h H T R1 R2 R3 φ1 φ2
ZMLB-0 35 130 126 95 75 1 20 1 6.5 6.5 / 8×φ5 /
ZMLB-1 50 145 130 90 80 4 7 2 8 8 8 8×φ7 8×φ12
ZMLB-2 80 165 150 100 85 7 15 2.5 7 8 8 8×φ7 8×φ13
ZMLB-3 70 195 175 120 96 18 25 2 6.5 4.5 6.5 10×φ8.5 /
ZMLB-4 90 200 187 115 90 8 25 3 12 15 12 8×φ9 /
XKK-1   230 无孔 175 150 5 15 1.5 12 6 12 Nonporous Nonporous
XHD-1   255 225 140 120 7… 16 2 3 17 14 12×φ9 /
XDG-1   255 235 175 155 10 50 3 7 5 10 12×φ9 /
ZMLB-5 250 255 245 190 160 8 38 3 11 7 15 12×φ6 12×φ12
ZMLB-6 200 268 243 195 154 18 33 1.5 10 6.5 6.5 12×φ13
ZMLB-7 250 288 270 180 160 28 28 4 8 11 8 14×φ8.5 /
ZMLB-8 350 338 312 250 211 23 45 2.5 9.5 6.5 8.5 18×φ10 /
ZMAB-10 100 194 174 130 110 5 15 2 5 8 / 8×φ9 8×φ15
ZMAB-1A 150 205 185 135 115 10 24 2 5 7 12 8×φ9 8×φ15
ZMAB-1B 200 235 215 155 135 12 20 2.5 6 9 10 12×φ9 12×φ15
ZMAB-2 280 285 265 195 155 8 33 2 12 12 15 12×φ9 12×φ15
XDG-2   298 278 220 195 10 60 3 10 8 10 12×φ9 /
ZMAB-3A 400 306 286 256 196 8 38 2 9 9 9 12×φ9 12×φ15
ZMAB-3B 420 325 305 220 180 18 45 3 8 15 10 16×φ9 16×φ15
ZMAB-4A 630 410 386 275 225 18 60 3 10 14 14 16×φ11 16×φ15
ZMAB-4B 600 394 374 290 230 18 60 2.5 12 14 14 16×φ11 16×φ15
XDG-2   395 375 320 300 15 80 3 13 7 10 16×φ11 /
ZMAB-5 1000 195 470 365 295 16 70 3 20 26 30 20×φ11 20×φ18
ZMAB-6A 1600 616 586 460 360 45 100 4 14 20 20 20×φ11 20×φ16
ZMAB-6B 1600 640 610 460 360 46 102 4 14 20 20 24×φ12 24×φ18
S1 70 176 156 100 72 10 33 3 9 9 10 12×φ9— 12×φ14
S2 100 195 175 110 80 13 35 2.5 7 10 14 12×φ⁹ 12×φ14
ZMAB-22 350 285 265 220 190 0 35 2 10 12 / 12×φ9 12×φ15
ZMAB-23 350 285 265 220 190 0 48 2 10 12 / 12×φ9 12×φ15
ZMAB-34 560 360 336 285 235 0 65 2.5 10 14 /   16×φ15
ZMAB-45 900 470 440 370 300 0 98 3 20 26 / 18×φ11 18×φ18
HA-2   267 248 190 160 10 39 2 13 8/8 13 10×φ9 10×φ15
HA-3   350 330 265 225 12 50 2 12 8 18 16×φ9 16×φ15
xzs-1   126 114 96 74 0 10 3 0 10 10 6×φ7 /
XZS-2   135 122. 103 78 0 15 3 0 7 7 6×φ7 /
XZS-3   186 172 150 112 0 15 3 0 15 20 8×φ7 /
XZS-4   234 218 194 153 0 18 3 0 10 10 12×φ7 /
XDY-1   110 108 95 80 0 20 3 0 45° 3  φ8
XDY-2   150 147 132 100 0 22 3 0 45° 4 φ8.5
