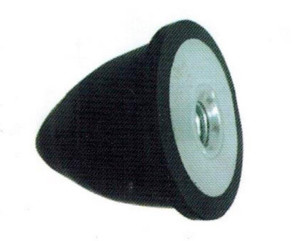

Silent Block Rubber Isolator with Customizable Size Options
Introduction:
The rubber vibration isolator, also known as rubber bumpers, rubber dampers, or shock absorbers, is a device designed to reduce the transmission of vibration between two objects. Standard attachment hardware is manufactured using cold-rolled steel, while custom attachment hardware can be manufactured using stainless steel, brass, or other materials.
We manufacture our rubber vibration mounts using high-quality commercial grades of natural rubber, EPDM, silicone, Neoprene, PU, and nitrile. These materials are available in both commercial and ASTM specification grades, providing our customers with flexibility and choice.
Our rubber vibration isolation mounts are extensively used in a wide range of applications, including electronics, aerospace, healthcare, construction, transportation, and defense industries. We are committed to providing our customers with innovative solutions that meet their specific needs and exceed their expectations.
|
Product Name
|
Rubber Vibration Damper Silent Block Shock Absorbers
|
|||
|
Material
|
Neoprene NR, NBR, SBR, CR, EPDM, TPR, TPU, Silicone, FKM, PU and so on.
|
|||
|
Color
|
Black, white, yellow, green, blue, grey, red, etc.
|
|||
|
Hardness
|
From 40 Shore A to 90 Shore A( tolerance +/-3) for customer choose.
|
|||
|
Size and Design
|
Basing on customer need, any size we can produce.
|
|||
|
Production Process
|
Mold making, raw material mixing, preforming, vulcanization
|
|||
Material details:
| Name | Characteristics | Material | Temperature- resistance | Performance |
| Silica gel | Soft material, good sealing effect, easy to install | VMQ | ≥-120°,≤250° | Good sealing, can effectively prevent oil leakage, air leakage |
| Chemigum | Good sealing effect, easy installation, affordable | NBR | ≥-90°,≤120° | Wear resistance, oil resistance, anti aging, can effectively prevent oil leakage, air leakage, seal special material |
| Fluorelastomer | Hard material, high strength, not easy to damage, not easy to aging | FKM | ≥-200°,≤250° | Resistance to aging, corrosion, ozone and radiation |
| Natural rubber | Medium material, high tear, not easy to damage, not easy to aging | NR | ≥-20°,≤150° | Aging resistance, wear resistance, high elongation shooting effect |
| Ethylene-Propylene-Diene Monomer | Medium material, strong weather resistance, not easy to damage, not easy to aging | EPDM | ≥-20°,≤150° | Water resistance to overheating, aging resistance, ozone resistance, hand neat resistance, acid and alkali resistance |
| Acrylonitrile | Good synthesis, high impact strength, chemical stability, good electrical performance |
ABS plastic
|
≥-20°,≤150° | High strength, fatigue resistance, stable size, small creep (very little change at high temperature) |
| Polystyrene | Colorless and transparent, high light transmittance, color water resistance, good stability | PS plastic | ≥-30°,≤80° | Easy to produce stress brittle, not resistant to benzene, suitable for making transparent insulation parts, decorative parts and chemical instruments |
| Polypropylene | Low density, strength stiffness, hardness and heat resistance are better than low pressure polyethylene | PP plastic | ≥-20°,≤150° | Low temperature time brittle, wear-resistant easy aging, suitable for the production of general mechanical parts, corrosion and insulation parts |
| Polyphenylene sulfide | Excellent electrical insulation, white hard and brittle, general strength, rigidity is very good | PPS plastic | ≥-20°,≤260° | Suitable for heat resistant parts, insulation parts, chemical instruments, optical instruments and other parts |
| Polyurethane | High strength, oil resistance, wear resistance, ozone resistance, insulation | PU plastic | ≥-10°,≤120° | High mechanical properties, curing shrinkage is small, good chemical stability |
FAQ:
Q: Are you a trading company or manufacturer?
A: We are a manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many years of experience in China.
Q: How long is your delivery time?
A: If we have stock, we can deliver immediately. If not, it depends on the quantity, but normally no more than 20 working days.
Q: What are the weight and dimensions of the product?
A: The weight and dimensions vary depending on the size. Please contact us for specific details.
Q: Can the products be manufactured according to the customer's requirements?
A: Yes, we offer OEM services.
Q: What information do you need for a fast quotation?
A: It would be highly appreciated if you could provide detailed drawings for OEM orders, model numbers, end connection types, flange standards and materials, medium, pressure, temperature, and any other relevant working conditions.
