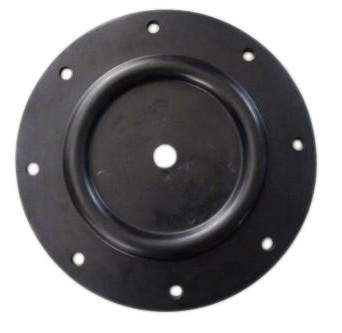

Fabric Reinforced Pulse Valve Diaphragm Wear Resistant Solenoid Valve Diaphragm Rubber Seal

Fabric Reinforced Pulse Valve Diaphragm Wear Resistant Solenoid Valve Diaphragm Rubber Seal

Material:

Rubber cloth or pure rubber can be used.

Characteristic:

Double-sided pressure bearing, double-sided equal pressure surface, low magnetic hysteresis, no stick-slip effect.

Function:

Pump function, control and measurement function, regulation function.

Application domain:

Pump valve, automobile industry, pneumatic components, gas equipment, electronic industry, electrical equipment, pneumatic hydraulic industry, etc.

Diaphragm work description:

The operating temperature range and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work under the conditions of -50~100 degrees Celsius and 0.4~0.8Mpa; the fluororubber and silicone rubber diaphragms can work under the conditions of -80~232 degrees Celsius. Chlorohydrin rubber diaphragm can work under the pressure of 0.4~0.8Mpa, has good air tightness, anti-aging, and its life is equal to that of engine overhaul.

Brief introduction of electromagnetic pulse valve diaphragm:

The electromagnetic pulse valve diaphragm is a whole piece of rubber diaphragm installed with a riveting head used to block the compressed air pipeline or the air outlet of the blocking valve, a venting unloading hole and a bolt hole for fixed support around it. It is the key control part in the electromagnetic pulse valve.

Structural properties:

It consists of a single layer or multiple layers coated with glue on both sides, and there are also rubber-free fabrics. According to its shape, the method is divided into membrane pressing method. According to the requirements of use, different rubber materials and diaphragms of different fabrics can be manufactured. The performance of the blend of nitrile rubber and polysulfide rubber for diaphragms, the performance of the rubber used for canvas disc diaphragms (often called diaphragms), and some silicone rubber, fluorine rubber, and chlorohydrin rubber developed in recent years. Diaphragm performance.

The operating temperature range and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work under the conditions of -50~100 degrees Celsius and 0.4~0.8MPa; the fluororubber and silicone rubber diaphragms can work under the conditions of -80~232 degrees Celsius. Chlorohydrin rubber diaphragm can work under the pressure of 0.4~0.8MPa, has good air tightness, anti-aging, and its life is equal to that of engine overhaul.

On the basis of the previous experience in the production of solenoid valve diaphragms, and absorbing and summarizing the advantages of similar products at home and abroad, as well as the production process, an improved solenoid valve diaphragm and pulse valve diaphragm have been newly developed. The electromagnetic pulse valve diaphragm is suitable for the production of electromagnetic pulse valve The rubber sheet production of the diaphragm has the characteristics of strong oil resistance, acid resistance, high temperature resistance, alkali resistance, etc. It can easily ensure the complete synchronization with other control components to control the injection of pulsed compressed air. Even in extremely harsh working environment, it can guarantee its normal operation and long service life. Under the ambient temperature of -20-80C and the working pressure difference of 0.8MPa, the working life of the diaphragm is not less than 1 million times.

Our service:

1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.
