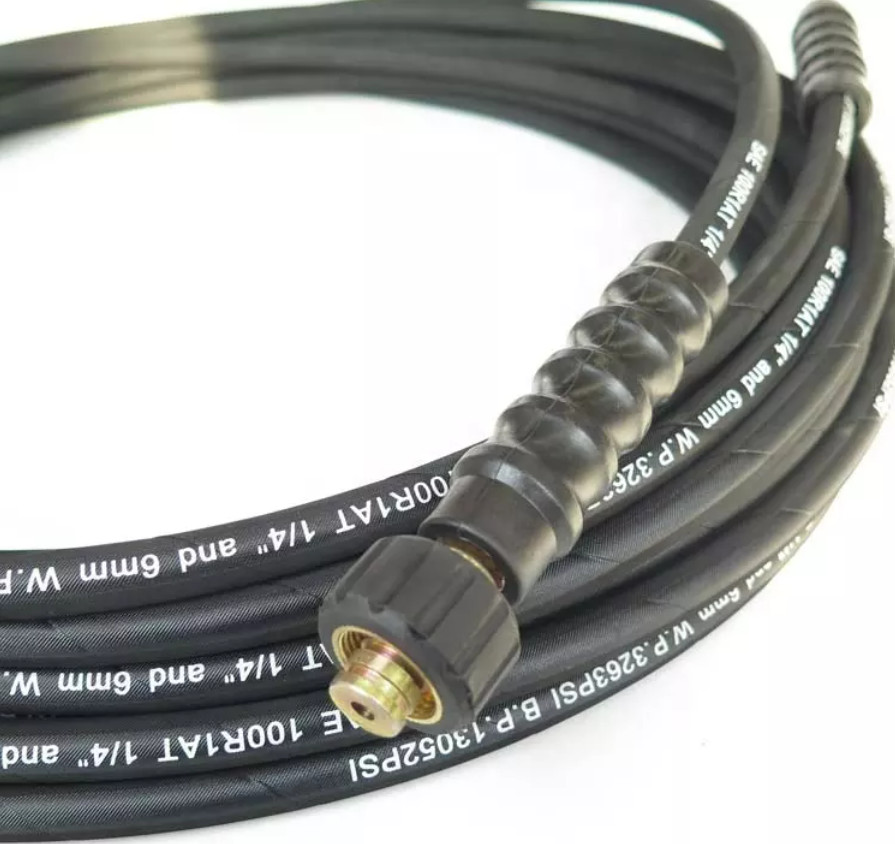

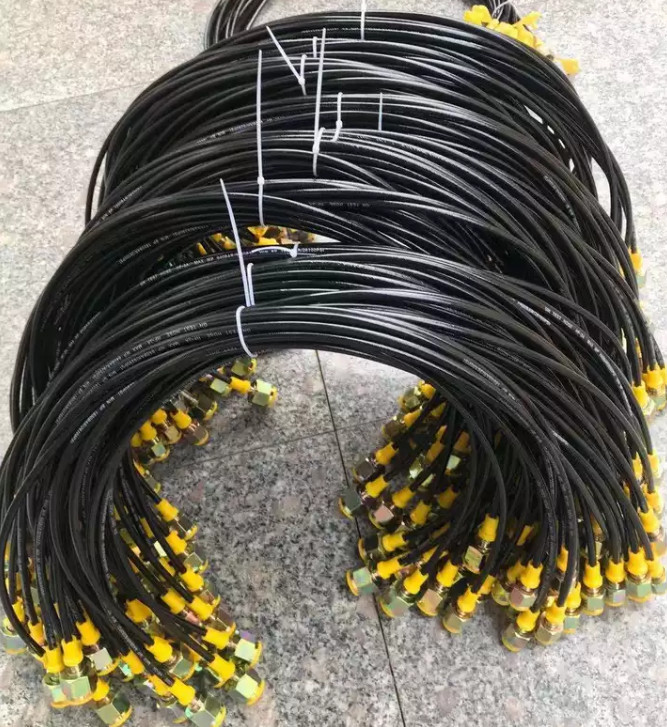

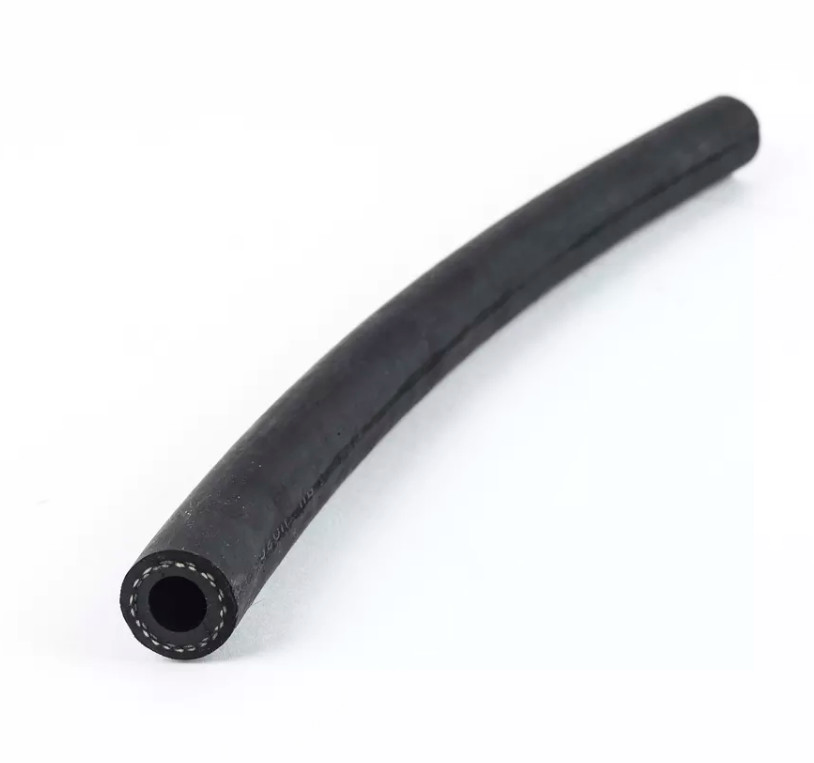

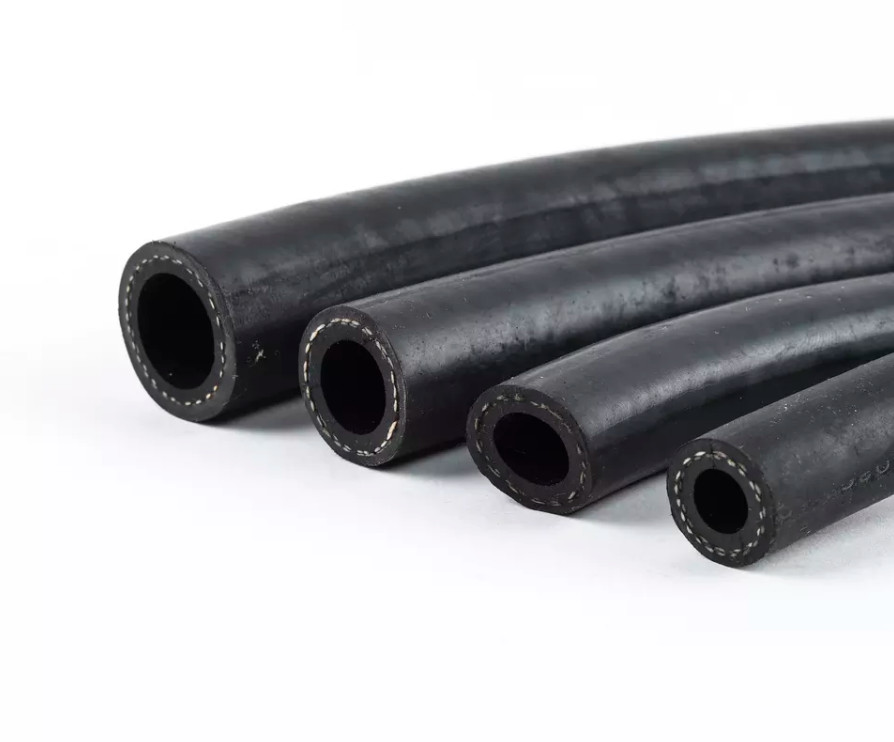

300mm High Pressure Hydraulic Hose Coal Mine Wire Braided Hydraulic Hose 1-100MPa
| Place of Origin | China |
|---|---|
| Brand Name | Hongum |
| Certification | CE、SGS approval |
| Model Number | Customized |
| Minimum Order Quantity | 10 meters |
| Price | USD 5-40/Meter |
| Packaging Details | Plastic Woven Strip or customized |
| Delivery Time | 5-20work days |
| Payment Terms | Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C |
| Supply Ability | 5000meters/ week |
Product Details
| Features | Heat Resistance And Aging Resistance | Application | Mining, Hydraulic Support, Hydraulic System, Shearer, Emulsification Pump Roadheader, Etc. |
|---|---|---|---|
| Specification | 6mm-300mm | Working Pressure | 1-100MPa |
| Length | Customized | Working Temperature | Oil -40 ℃—+100 ℃ |
| Highlight | 300mm High Pressure Hydraulic Hose,100MPa High Pressure Hydraulic Hose,Coal Mine Wire Braided Hydraulic Hose |
||
Product Description
300mm High Pressure Hydraulic Hose Coal Mine Wire Braided Hydraulic Hose 1-100MPa
We produce:
Hydraulic support Coal mine high pressure hose, Coal mine hydraulic support hose, High pressure oil hose, High pressure hose Large diameter braided hose, Hydraulic hose, Marine floating large diameter hose, Marine oil transport high pressure hose, etc.
Quick details:
| Category | High pressure steel wire braided hose |
| Product Specifications | 6mm-300mm |
| Application Range | Mining, hydraulic support, hydraulic system, shearer, emulsification pump roadheader, etc. |
| Length Size | Can be customized according to engineering requirements |
| Working Pressure | 1-100MPA |
Working temperature: oil -40 ℃—+100 ℃, air -30 ℃—+50 ℃, water emulsion below +80 ℃, please choose our special products.
Product features:
1. The hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.
2. The hose has high bearing pressure and excellent pulse performance.
3. The tube body is tightly combined, soft to use, and less deformed under pressure.
4. The hose has excellent bending resistance and fatigue resistance.
5. The length of the steel wire braided hose is large, and the fixed length is generally 20 meters. It can be produced up to tens of meters or even more than 100 meters.
Technical parameters of three-layer steel wire braided hose GB/T3683-2011
| Hose Specifications |
ID |
Diameter of steel wire layer |
Outer diameter |
Work pressure | Test pressure | Burst pressure |
Small bending radius |
Reference weight | |||
| MPa | Psi | MPa | Psi | MPa | Psi | ||||||
| 3-5-72 | 5±0.5 | 13.2±0.6 | 17±0.8 | 72 | 10433 | 108 | 15649 | 180 | 26082 | 120 | 0.50 |
| 3-6-68 | 6±0.5 | 14.7±0.6 | 18.7±1.0 | 68 | 9853 | 102 | 14780 | 170 | 24633 | 140 | 0.56 |
| 3-8-54 | 8±0.5 | 16.7±0.6 | 20.7±1.0 | 54 | 7825 | 81 | 11737 | 120 | 17388 | 160 | 0.83 |
| 3-10-44 | 10±0.5 | 18.7±0.6 | 22.7±1.0 | 44 | 6376 | 66 | 9563 | 110 | 15939 | 180 | 0.95 |
| 3-13-36 | 13±0.5 | 22.2±0.8 | 26.2±1.2 | 36 | 5200 | 54 | 7800 | 108 | 15650 | 240 | 1.22 |
| 3-16-32 | 16±0.5 | 25.2±0.8 | 29.2±1.2 | 32 | 4625 | 48 | 7000 | 96 | 13900 | 300 | 1.30 |
| 3-19-28 | 19±0.5 | 28.2±0.8 | 32.2±1.2 | 28 | 4050 | 42 | 6010 | 84 | 12150 | 330 | 1.62 |
| 3-22-26 | 22±0.5 | 31.2±0.8 | 35.2±1.2 | 26 | 3750 | 39 | 5650 | 78 | 9418 | 380 | 1.81 |
| 3-25-24 | 25±0.5 | 34.9±0.8 | 38.9±1.2 | 24 | 3500 | 36 | 5200 | 72 | 8694 | 400 | 1.99 |
| 3-32-13 | 32±0.7 | 42.1±0.8 | 46.1±1.5 | 13 | 1884 | 19.5 | 2826 | 39 | 5651 | 450 | 2.29 |
| 3-38-12 | 38±0.7 | 48.1±0.8 | 52.1±1.5 | 12 | 1789 | 18 | 2608 | 36 | 5216 | 500 | 2.68 |
| 3-51-10 | 51±0.7 | 61.5±0.8 | 65.5±1.5 | 10 | 1449 | 15 | 2174 | 30 | 4347 | 630 | 3.40 |
| 3-64-6 | 64±1.0 | 74.8±1.0 | 78.8±1.5 | 6 | 895 | 9 | 1304 | 18 | 2608 | 790 | 4.30 |
| 3-76-5 | 76±1.0 | 87.4±1.0 | 91.4±1.5 | 5 | 725 | 7.5 | 1087 | 15 | 2174 | 960 | 5.20 |
| 3-89-4 | 89±1.0 | 100.4±1.0 | 104.4±1.5 | 4 | 580 | 6 | 895 | 12 | 1789 | 1100 | 5.55 |
| 3-102-3.5 | 102±1.0 | 115.0±1.0 | 119±1.5 | 3.5 | 507 | 5.25 | 761 | 10.5 | 1521 | 1280 | 6.47 |
| 3-127-3.5 | 127±1.0 | 140±1.0 | 145±1.5 | 3.5 | 507 | 5.2 | 761 | 10.5 | 1521 | 1560 | 8.20 |
| 3-152-3.0 | 152±1.0 | 166±1.0 | 171±1.5 | 3 | 435 | 4.5 | 652 | 9 | 1304 | 1800 | 9.88 |
| 3-203-2.5 | 203±1.0 | 218±1.5 | 224±2.0 | 2.5 | 362 | 3.75 | 544 | 7.5 | 1087 | 2300 | 14.2 |
Q&A:
Q: Could you follow the customer's specific requirement?
A: Yes, we could do it according to your specific requirement.
Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.
Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
