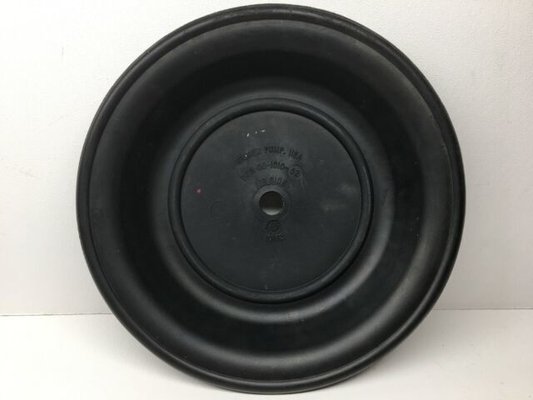

08101052 WILDEN PUMP Fit Repair Kit 2 Inch Diaphragm Buna For 2" AIR OPERATED DOUBLE DAPHRAGM PUMPS
Product Details
| Model | 08101052 | Application | 2" AIR OPERATED DOUBLE DAPHRAGM PUMPS |
|---|---|---|---|
| Material | Buna | Brand Replacement | WILDEN/ SANDPIPER/ GRACO PUMP |
| Color | Black | Performance | Deal With Corrosion And Wear |
| Highlight | 2 Inch Diaphragm Buna,WILDEN Diaphragm Buna,08-1010-52 |
||
Product Description
08101052 WILDEN PUMP Fit Repair Kit 2 Inch Diaphragm Buna For 2" AIR OPERATED DOUBLE DAPHRAGM PUMPS
Introduction:
The diaphragm of the pneumatic diaphragm pump is usually made of NBR rubber or natural rubber. The reasons for choosing the above two kinds of rubber are on the one hand because of the high cost performance, and on the other hand because the material characteristics of the two materials are more suitable for the production environment, such as oil resistance, wear resistance, etc. , can effectively deal with the corrosion and wear of the diaphragm caused by such an environment, so that the pneumatic diaphragm can effectively prolong the service life.
Wilden Replacement:
| 0.5" backup diaphragm neoprene | 01-1060-51 |
| 0.5" diaphragm | 01-1010-55 |
| 0.5" diaphragm santoprene | 01-1010-58 |
| 1" diaphragm neoprene | 02-1010-51 |
| 1" diaphragm santoprene | 02-1010-58 |
| 1" diaphragm | 02-1010-55 |
| NEOPRENE BACKUP DIAPHRAM | 1" 02-1060-51 |
| 1.5" diaphragm | 04-1010-55 |
| 1.5" diaphragm santoprene | 04-1010-58 |
| 1.5" backup diaphragm wilflix | 04-1060-56 |
| 1.5" diaphragm neoprene | 04-1010-51 |
| 1.5" neoprene diaphram backup | 04-1060-51 |
| 2" diaphragm | 08-1010-55 |
| 2" diaphragm buna | 08-1010-52 |
| 2" backup diaphragm wilflix | 08-1060-56 |
| etc. |
Graco Replacement:
| Diaphragm 1/2" | 108839 |
| santoprene Diaphragm 1/2" | 189536 |
| Ball valve 0.5" | 108639 |
| santoprene Ball valve 0.5" | 112946 |
| Diaphragm 1" | 188605 |
| PTFE diaphragm back up 1" | 15R022 |
| EPDM diaphragm 1" | 15R029 |
| santoprene Diaphragm Backup 1" | 188857 |
| Ball valve 1" | 24B645 |
| santoprene Ball valve 1" | 24B646 |
| Diaphragm1.5" | 189424 |
| santoprene Diaphragm Backup 1.5" | 189426 |
| Ball valve 1.5" | 112429 |
| santoprene Ball valve 1.5" | 112421 |
| Diaphragm 2" | 15K313 |
| santoprene Diaphragm Backup 2" | 189296 |
| diaphragm geolast 2" | 194216 |
| Ball valve 2" | 112359 |
| 2" seat santoprene | 189290 |
| santoprene Ball valve 2" | 112361 |
| Diaphragm 3" | 190833 |
| santoprene Diaphragm Backup 3" | 190838 |
| Ball valve 3" | 24K943 |
| 3" seat ptfe | |
| santoprene Ball valve 3" | 24K944 |
| ptfe diaphragm 2" | 96392-T |
| rubber diaphragm 2" |
96393-A |
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
