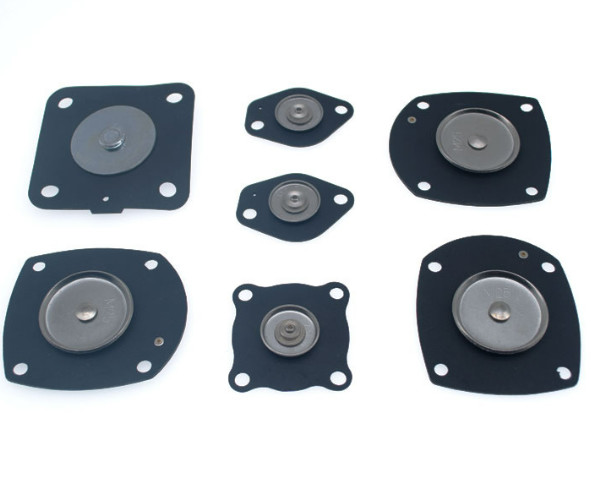

K2500 K2501 K2503 Diaphragm Kit For Goyen Pulse Valve CA25T CA25DD
Quick details:
| Product Name: | Pulse Valve Diaphragm | Ordering Number: | K2501 (M1183B), K2502 (M736), K2503 (M1887) |
|---|---|---|---|
| Diaphragm Material: | NBR, | Seat Material: | Rubber, Nylon |
| 1 Set: | 1pc Diaphragm, 1pc Spring | Fitted Pulse Valve Model: | CA25T, RCA25T, CA25DD, RCA25DD, CAC25FS, RCAC25FS, CA25MM, RCA25MM |
Skills requirement:
Since the electromagnetic pulse valve diaphragm is a flexible mechanism that needs to be opened and closed frequently to control air circulation, it requires not only good flexibility, but also the highest possible sealing performance, so the material of the pulse valve diaphragm is It is directly related to the service life and use effect of the pulse valve diaphragm. In other words, the quality of the pulse valve diaphragm directly affects the working stability of the pulse bag filter dust cleaning system, and is also directly related to the use cost of the dust removal equipment. Generally All pulse valve diaphragms have a promise of service life or the number of actions, and the pulse valve diaphragm used can directly reduce the use cost of dust removal equipment.
Brief introduction of electromagnetic pulse valve diaphragm:
The electromagnetic pulse valve diaphragm is a whole piece of rubber diaphragm installed with a riveting head used to block the compressed air pipeline or the air outlet of the blocking valve, a venting unloading hole and a bolt hole for fixed support around it. It is the key control part in the electromagnetic pulse valve.
Working principle:
The electromagnetic pulse valve diaphragm divides the pulse valve into two air chambers. When the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, the pulse valve is in a closed state, the pulse controller outputs a signal to move the armature of the pulse valve, the vent hole of the air chamber behind the valve is opened, and the rear air chamber quickly loses pressure, making the The diaphragm moves backward, the compressed air is blown through the outlet of the valve, the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the electromagnetic pilot of the pulse valve is reset, the vent hole of the rear air chamber is closed, and the back When the pressure of the air chamber rises, the diaphragm of the pulse valve is close to the air outlet of the valve, the pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
