Fitting
Quick details:

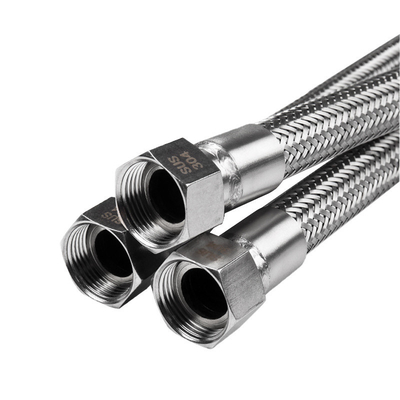

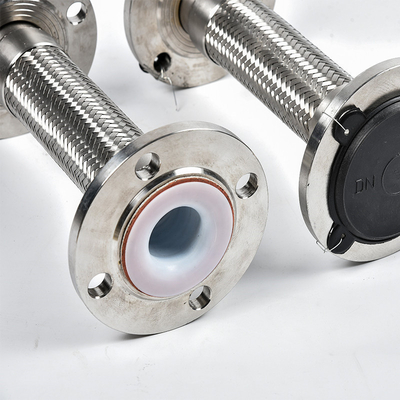

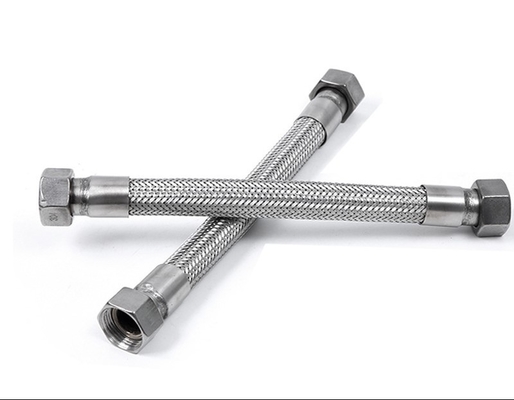

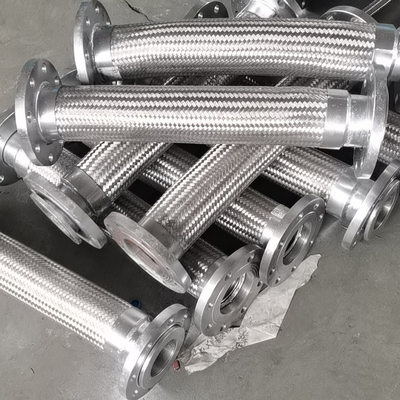

| Category | Stainless Steel Metal Hose/Armored Tube |
| Product Specifications | 5mm-5000mm |
| Application range | Power plants, steel mills, protection, threading, |
|
Length size
|
Can be customized according to engineering requirements |
| Working pressure | 0-50MPA |
Specifications:
| Category |
Normal inner diameter (mm) |
Small inner diameter (mm) |
Large outer diameter | Work pressure | Test pressure | Burst pressure | Small bending radius | ||
| (mm) | Mpa | PSI | (Mpa) | (Mpa) | Static(mm) | Dynamic(mm) | |||
| High pressure |
4 6 8 10 72 14 18 20 25 32 |
2.5 4.5 6.5 8.5 10 12 16 18 22 30 |
8.5 12 14 16 20 22 26 28 34 42 |
35 23 21 17 15 10 7 |
5071 3332 3043 2463 2175 1449 1014 |
1.5PN | 3PN | >=10DN | ≥2Rj |
| Medium pressure |
4 6 8 10 |
2.5 4.5 8.5 6.5 8.5 |
8.5 12.5 4.5 6.4 |
10 | 1449 | 4PN | |||
|
12 14 18 |
12 14 18 |
20 22 26 |
8.0 | 1159 | |||||
|
20 25 |
20 24 |
28 34 |
6.4 | 927 | |||||
|
32 40 |
32 40 |
42 52 |
4.0 | 579 | |||||
|
4 6 8 10 |
4 6 8 10 |
8.5 12 14 16 |
2.5 | 362 | |||||
| Low pressure |
12 14 18 20 |
2 4 8 10 |
1.6 | 231 | |||||
|
25 32 |
24 32 |
34 42 |
1.0 | 144 | |||||
|
40 50 |
40 50 |
52 64 |
2.5 | 362 | |||||
|
75 100 |
75 100 |
92 22 |
1.6 | 231 | |||||
|
125 150 |
25 50 |
61 93 |
1.0 | 144 | |||||
|
200 250 |
200 250 |
252 302 |
0.8 | 116 | Note: PN, PS, Pb are all values at 20°C | ||||
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
