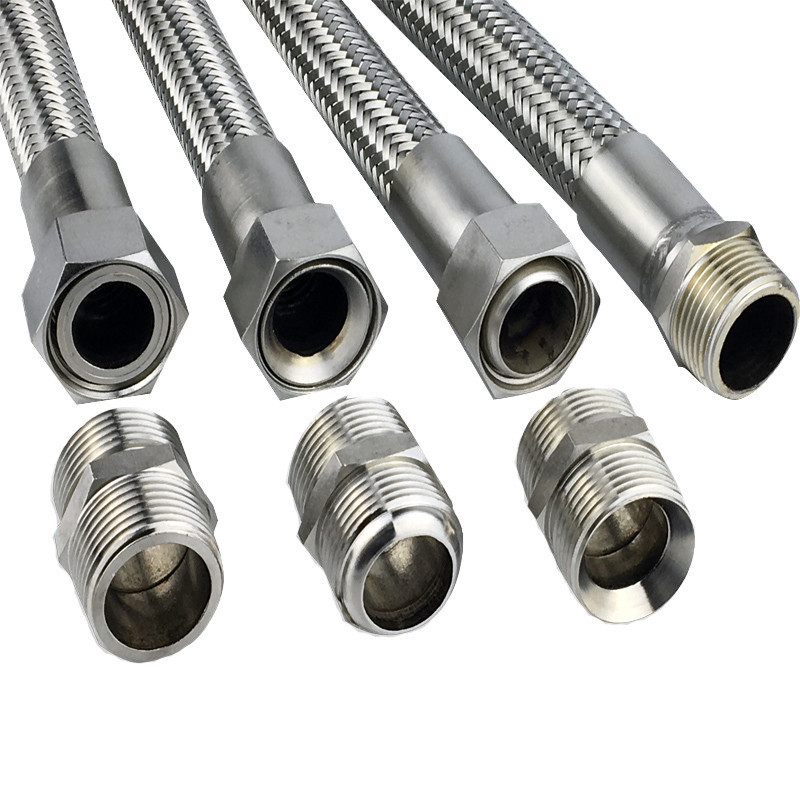

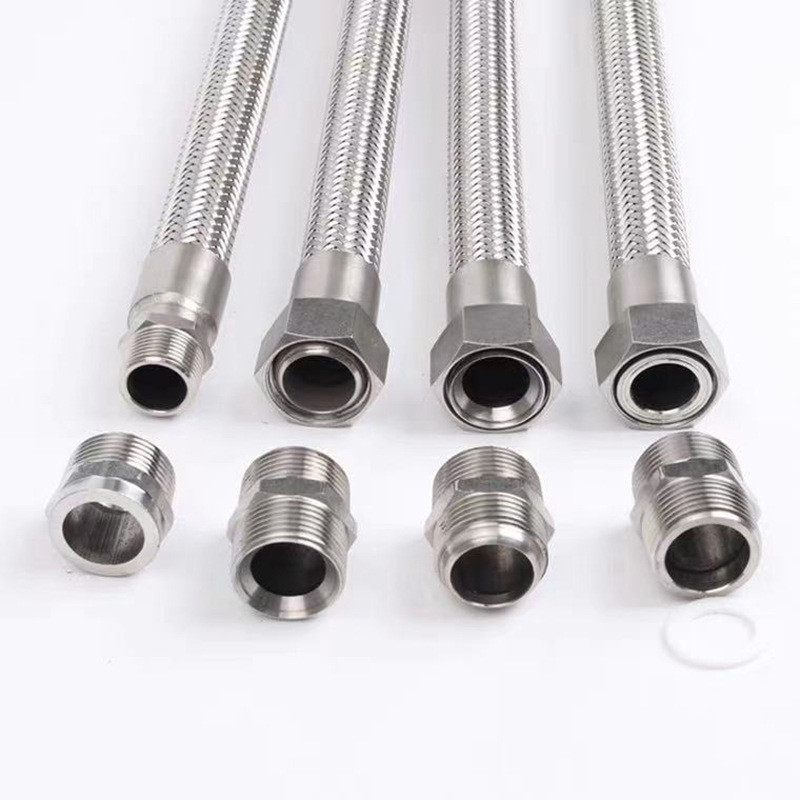

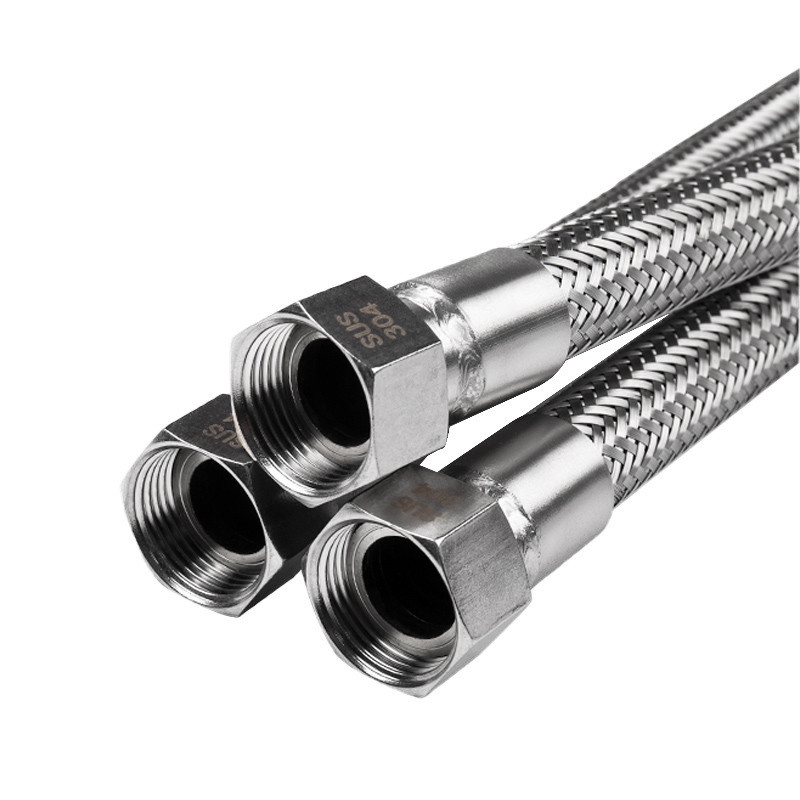

Plastic Lined Stainless Steel Flexible Hose Custom 3-12mm Thickness
Introduction:
The metal conduit for threading is made of 304 stainless steel or 301 stainless steel. It is used as a wire and cable protection tube for wires, cables, and automated instrument signals, with specifications ranging from 3mm to 150mm. The ultra-small diameter metal hose (inner diameter 3mm-25mm) is mainly used for the protection of the sensing circuit of the precision optical ruler and the protection of the industrial sensor circuit. It has good flexibility, corrosion resistance, high temperature resistance, wear resistance and tensile strength.
Advantage:
1. Strict material selection: product material selection is strict, we refuse to cut corners
2. Rigorous craftsmanship: the surface of the product is smooth, without bumps and black spots, and the structure is reasonable
3. Various specifications: large quantity favorably
Specification:
| Category |
Normal inner diameter (mm) |
Small inner diameter (mm) |
Large outer diameter | Work pressure | Test pressure | Burst pressure | Small bending radius | ||
| (mm) | Mpa | PSI | (Mpa) | (Mpa) | Static(mm) | Dynamic(mm) | |||
| High pressure |
4 6 8 10 72 14 18 20 25 32 |
2.5 4.5 6.5 8.5 10 12 16 18 22 30 |
8.5 12 14 16 20 22 26 28 34 42 |
35 23 21 17 15 10 7 |
5071 3332 3043 2463 2175 1449 1014 |
1.5PN | 3PN | >=10DN | ≥2Rj |
| Medium pressure |
4 6 8 10 |
2.5 4.5 8.5 6.5 8.5 |
8.5 12.5 4.5 6.4 |
10 | 1449 | 4PN | |||
|
12 14 18 |
12 14 18 |
20 22 26 |
8.0 | 1159 | |||||
|
20 25 |
20 24 |
28 34 |
6.4 | 927 | |||||
|
32 40 |
32 40 |
42 52 |
4.0 | 579 | |||||
|
4 6 8 10 |
4 6 8 10 |
8.5 12 14 16 |
2.5 | 362 | |||||
| Low pressure |
12 14 18 20 |
2 4 8 10 |
1.6 | 231 | |||||
|
25 32 |
24 32 |
34 42 |
1.0 | 144 | |||||
|
40 50 |
40 50 |
52 64 |
2.5 | 362 | |||||
|
75 100 |
75 100 |
92 22 |
1.6 | 231 | |||||
|
125 150 |
25 50 |
61 93 |
1.0 | 144 | |||||
|
200 250 |
200 250 |
252 302 |
0.8 | 116 | Note: PN, PS, Pb are all values at 20°C |
||||
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
