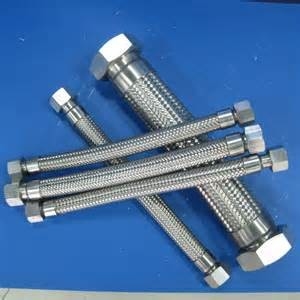

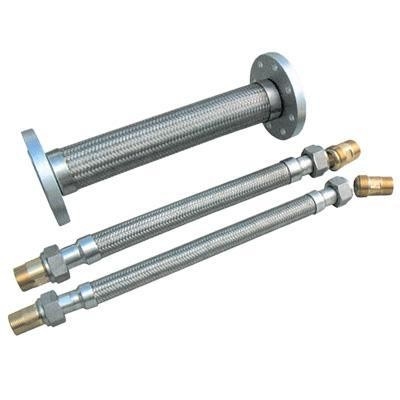

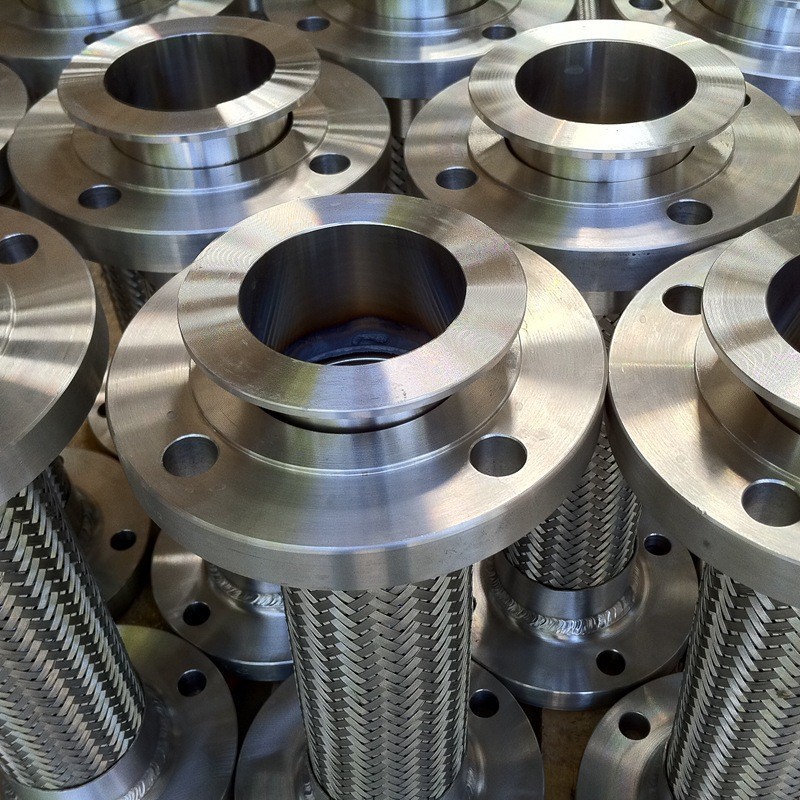

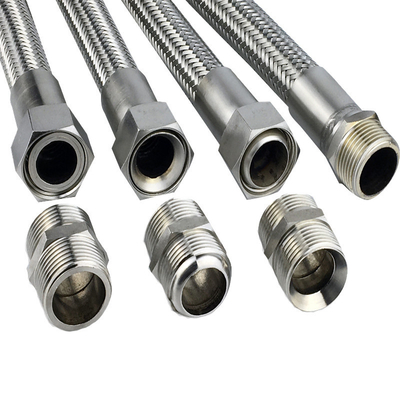

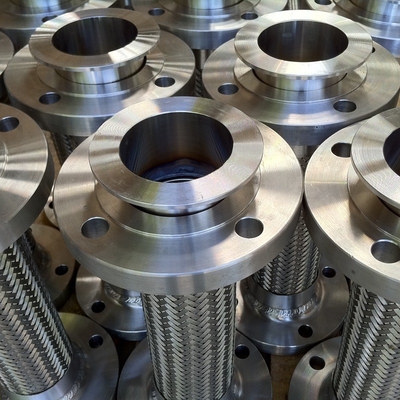

PTFE Metal Stainless Steel Flexible Hose Shock Absorbing Hose
Quick details:
| Category | Stainless Steel Metal Hose/Armored Tube |
| Product Specifications | 5mm-5000mm |
| Application range | Power plants, steel mills, etc. |
|
Length size
|
Can be customized according to engineering requirements |
| Working pressure | 0-50MPA |
The metal conduit for threading is made of 304 stainless steel or 301 stainless steel. It is used as a wire and cable protection tube for wires, cables, and automated instrument signals, with specifications ranging from 3mm to 150mm. The ultra-small diameter metal hose (inner diameter 3mm-25mm) is mainly used for the protection of the sensing circuit of the precision optical ruler and the protection of the industrial sensor circuit. It has good flexibility, corrosion resistance, high temperature resistance, wear resistance and tensile strength.
Advantage:
1. Strict material selection: product material selection is strict, we refuse to cut corners
2. Rigorous craftsmanship: the surface of the product is smooth, without bumps and black spots, and the structure is reasonable
3. Various specifications: large quantity favorably
Specifications:
| Category |
Normal inner diameter |
Small inner diameter |
Large outer diameter | Work pressure | Test pressure | Burst pressure | Small bending radius | ||
| (mm) | Mpa | PSI | (Mpa) | (Mpa) | Static(mm) | Dynamic(mm) | |||
| High pressure |
4 |
2.5 |
8.5 |
35 |
5071 |
1.5PN | 3PN | >=10DN | ≥2Rj |
| Medium pressure |
4 |
2.5 |
8.5 |
10 | 1449 | 4PN | |||
|
12 |
12 |
20 |
8.0 | 1159 | |||||
|
20 |
20 |
28 |
6.4 | 927 | |||||
|
32 |
32 |
42 |
4.0 | 579 | |||||
|
4 |
4 |
8.5 |
2.5 | 362 | |||||
| Low pressure |
12 |
2 |
1.6 | 231 | |||||
|
25 |
24 |
34 |
1.0 | 144 | |||||
|
40 |
40 |
52 |
2.5 | 362 | |||||
|
75 |
75 |
92 |
1.6 | 231 | |||||
|
125 |
25 |
61 |
1.0 | 144 | |||||
|
200 |
200 |
252 |
0.8 | 116 | Note: PN, PS, Pb are all values at 20°C |
||||
