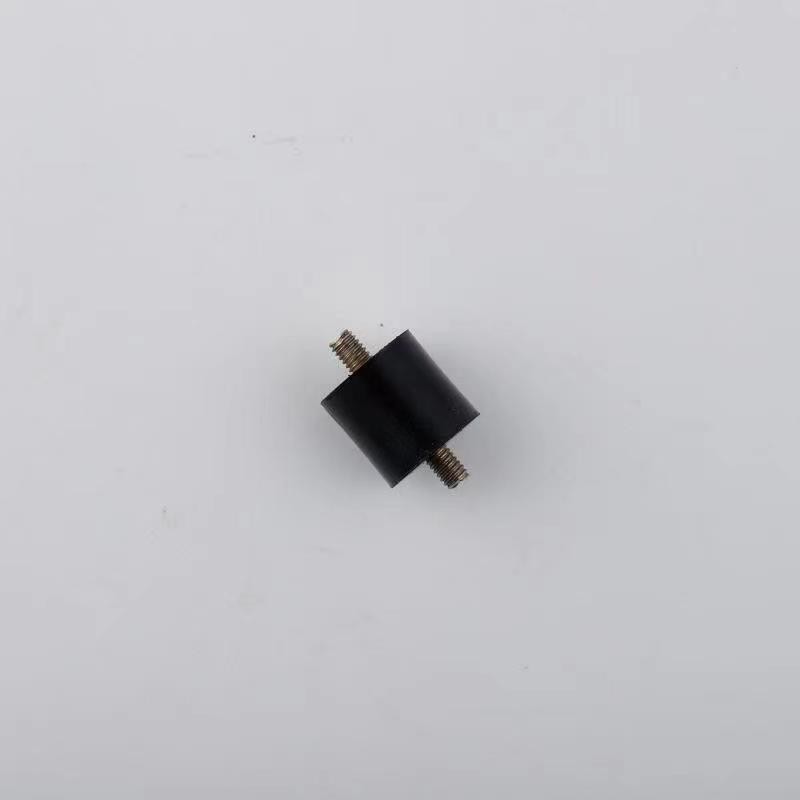

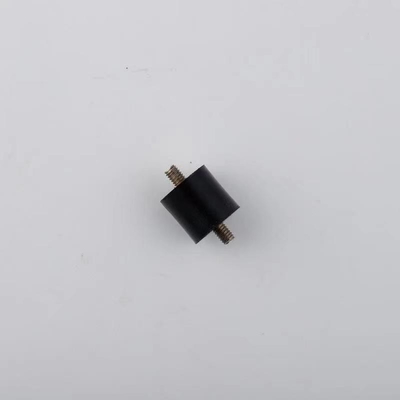

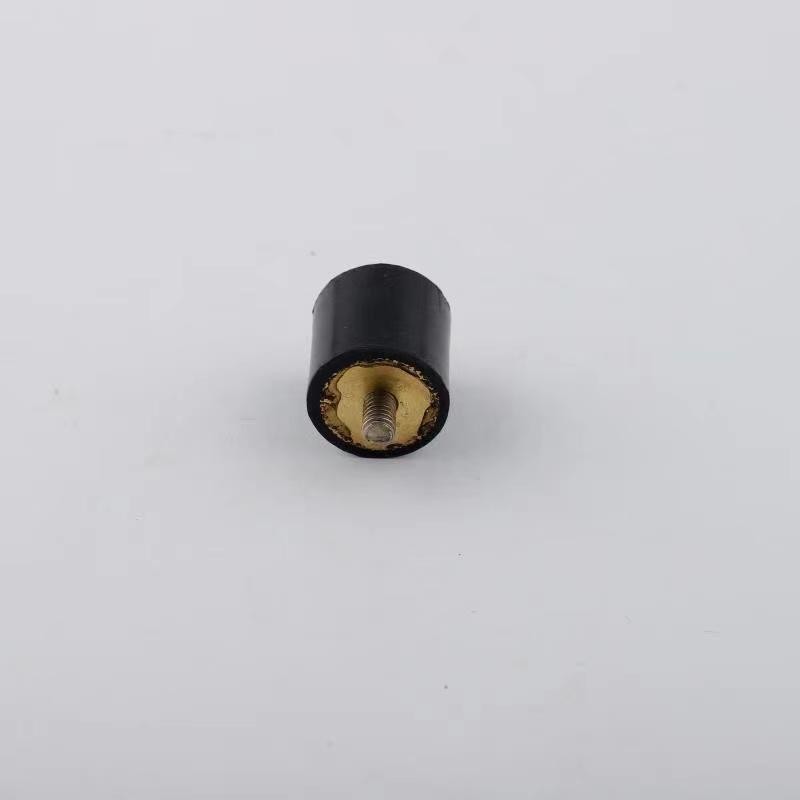

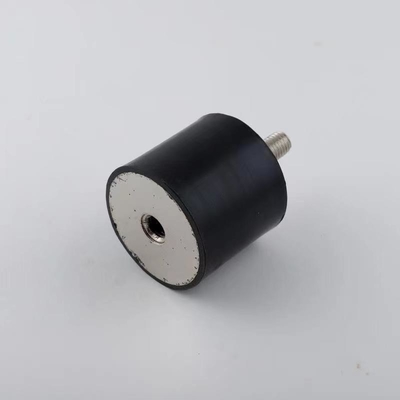

Rubber Vibration Damper Silent Block Shock Absorbers rubber vibration isolation mounts

  • Rubber Vibration Damper Silent Block Shock Absorbers rubber vibration isolation mounts
  • Rubber Vibration Damper Silent Block Shock Absorbers rubber vibration isolation mounts
  • Rubber Vibration Damper Silent Block Shock Absorbers rubber vibration isolation mounts
  • Rubber Vibration Damper Silent Block Shock Absorbers rubber vibration isolation mounts
Place of Origin CHINA
Brand Name HONGUM
Certification CE、SGS approval
Model Number Customized
Minimum Order Quantity 50PCS
Price USD 2-40/PCS
Packaging Details Standard Package
Delivery Time 5-15days
Payment Terms L/C, L/C, T/T, Western Union, MoneyGram
Supply Ability 5000PCS/Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Standard Rubber Damper Material Nature Rubber
Color Black Model 1008MF10
Hardness 45daN/mm 4.0 Compression 1.6mm
Screw M4*10 Inner Deep 10MM
High Light

Vibration Rubber Shock Absorber

,

Damper Rubber Shock Absorber

,

Silent Rubber Shock Absorber
Leave a Message
Product Description

Rubber Vibration Damper Silent Block Shock Absorbers





Introduction:

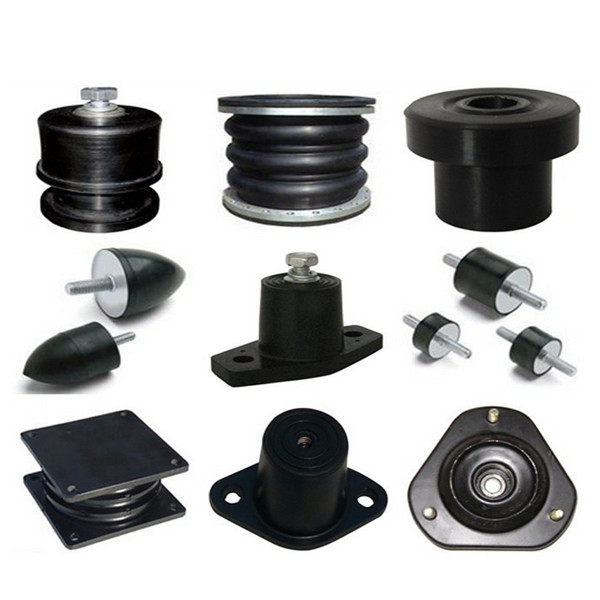

The rubber vibration isolator, also called rubber bumpers, rubber damper,or shock absorbers. Standard attachment hardware is manufactured using cold rolled steel. Custom attachment hardware can be manufactured using stainless steel, brass, and other materials.We manufacture our rubber vibration mounts using commercial grades of natural rubber, EPDM, silicone, Neoprene,PU and nitrile.Materials are available in commercial and ASTM specification grades.Our rubber vibration isolation mounts are used in a wide range of applications, including electronics, aerospace, healthcare,construction, transportation, and defense applications.


Product Name
Rubber Vibration Damper Silent Block Shock Absorbers
Material
Neoprene NR, NBR, SBR, CR, EPDM, TPR, TPU, Silicone, FKM, PU and so on.
Color
Black, white, yellow, green, blue, grey, red, etc.
Hardness
From 40 Shore A to 90 Shore A( tolerance +/-3) for customer choose.
Size and Design
Basing on customer need, any size we can produce.
Production Process
Mold making, raw material mixing, preforming, vulcanization





Specifications:



Specifications Outer diameter (mm) Inner diameter (mm) Unsupported height (mm)

Deformation of work FV

(cm)

Rigidity

(kg/cm)

Working load

(kg)
φ50×50×φ18 50 18 50 0.8 50 80
φ60×60×φ20 60 20 60 0.8 60 100
φ80×80×φ25-30 80 25 80 0.8 100 200
φ100×100×φ30 100 30 100 1 140 500
φ100×130×φ30 100 30 130 1 150 550
φ120×120×φ30 120 30 120 1.2 170 600
φ127×127×φ30 127 30 127 1.2 180 640
φ130×130×φ30 130 30 130 1.3 200 680
φ140×140×φ30 140 30 140 1.4 210 700
φ140×160×φ30 140 30 160 1.4 230 680
φ140×160×φ40 160 40 160 1.4 230 680
φ160×160×φ30 160 30 160 1.6 240 750
φ160×160×φ40 160 40 160 1.6 240 750
φ160×160×φ50 160 50 160 1.6 240 750
φ160×160×φ60 160 60 160 1.6 240 750
φ180×180×φ40 180 40 180 1.8 260 800
φ180×240×φ40 180 40 240 1.8 280 1000
φ200×200×φ40 200 40 200 2 280 1000
φ200×200×φ50 200 50 200 2 280 1000
φ220×220×φ50 220 50 220 2.2 320 1500
φ240×240×φ50 240 50 240 2.4 350 1800
φ250×250×φ50 250 50 250 2.5 370 2000
φ300×245×φ80 300 80 245 1 480 2800
φ160×240×φ94 160 94 240 1-3 250-1500 1500-3000





Packing and Shipping
Packing: 200 pcs/carton (according to the size)
Shipping: Door-to-Door Air Freight & FOB & CFR
Quickly delivery, with several delivery ways, such as DHL/FEDEX/UPS/TNT express, air and ocean shipping way. We have several express accounts and the cost is very cheap. We ship WORLDWIDE on most products unless otherwise stated.

Rubber Vibration Damper Silent Block Shock Absorbers rubber vibration isolation mounts 0





Q&A



Q : Are you trading company or manufacturer?

A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

Q: How long is your delivery time?

A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days.

Q: What's the weight and measurement for the product?

A: Different size with differenct amount, please contact us for details.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, OEM service available.

Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.
