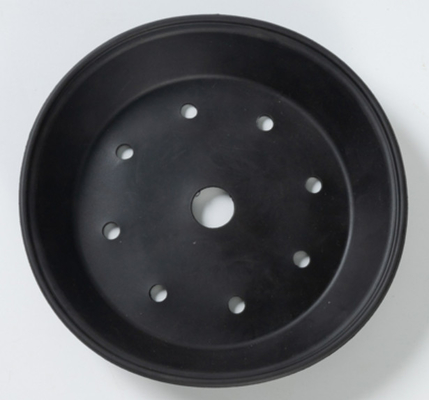

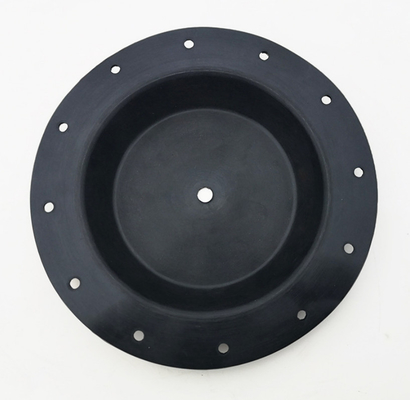

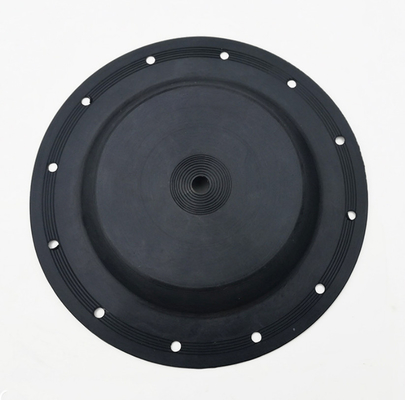

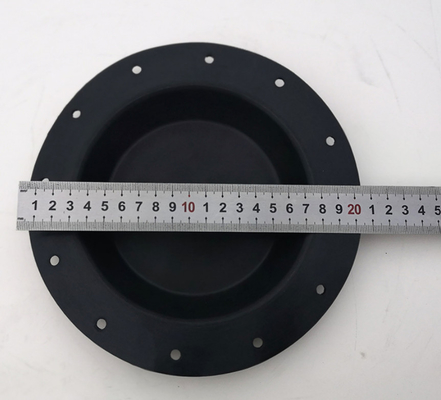

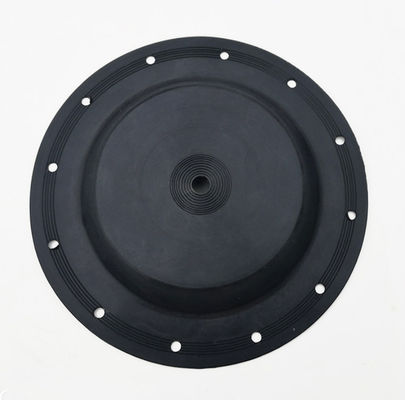

Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm

  • Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm
  • Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm
  • Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm
  • Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm
  • Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 50 PCS
Price USD 5-150/PCS
Packaging Details PE+carton box
Delivery Time 7~15 working days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month
Product Details
Name Neoprene Material Valve Rubber Diaphragm Material NBR, NR, CR, FR
Working Temperature -40℃~220℃ Usage Scenario Coal - Fired Power Plants, Steel Mills, Metallurgy, Waste Incineration
Color Black Or Customized Port Size Standard
Highlight

Neoprene Diaphragm

,

Oil Resistance Valve Rubber Diaphragm

,

Blow Off Valve Rubber Diaphragm
Leave a Message
Product Description

Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm





Diaphragm is one of the important components of electromagnetic pulse valve, high quality electromagnetic pulse valve must be equipped with a high performance diaphragm, which is in a frequent state of switching for a long time, high quality diaphragm must have the following performance:

  • Effective adhesive force and adequate tensile strength
  • Reliable sealability
  • Good corrosion resistance
  • Excellent aging resistance

 Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm 0Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm 1Neoprene Material Valve Rubber Diaphragm Oil Resistance Low Pressure Blow Off Valve Kit Diaphragm 2​



Advantage:



In order to protect the interests of customers, the diaphragm was tested by the authority professionally, with customer use case, it is confirmed that the blowing time is more than 1 million times, the service life is more than two years.



Size range DV6-DV16
Service life ≥1 million times
Application scenarios Coal-fired power plants, steel mills, metallurgy, waste incineration, etc.





Material:



Neoprene rubber has good physical and mechanical properties, oil resistance, heat resistance, burn-resistance, daylight-resistance, ozone resistance, acid and alkali resistance, chemical reagent resistance. It has high tensile strength, elongation and reversible crystallinity. Composite high performance rubber has good oil resistance, good heat resistance, good chemical corrosion resistance, excellent ozone resistance, high compression set resistance. At the same time, it has high strength, high tearing performance, excellent wear resistance and other characteristics.





Our service:



1. Packaging is neutral packing or customized packing.



2. We will reply you within 24 hours.



3. We will also provide you with good after-sales service.



4. OEM or ODM orders are welcomed.



5. Trial orders are acceptable.



6. High quality and factory price.



7. 100% ensured the quality.
