NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm

  • NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm
  • NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm
  • NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm
  • NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 50 PCS
Price USD 5-150/PCS
Packaging Details PE+carton box
Delivery Time 7~15 working days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month
Product Details
Name Rolling Diaphragm Material NBR NR EPDM FKM CR
Pressure 0.1-1 MPa Model HF-GMA-03 HF-GMA-46 HF-GMA-32 HF-GMA-49 HF-GMA-09 HF-GMA-42 HF-GMA-14 HF-GMA-SM3
Application Industrial Size According To Customer's Request
Highlight

EPDM Cut Off Valve Diaphragm

,

FKM Cut Off Valve Diaphragm

,

NBR Pneumatic Valve Diaphragm
Leave a Message
Product Description

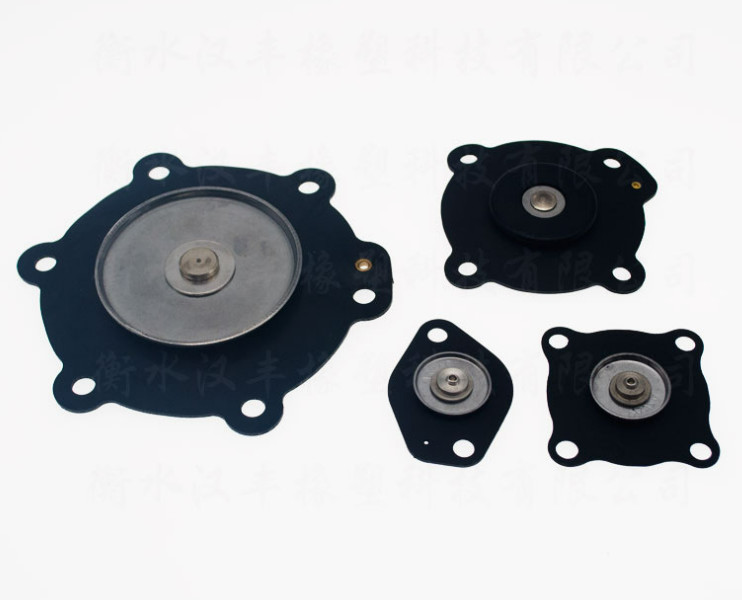

NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm





Introduction:

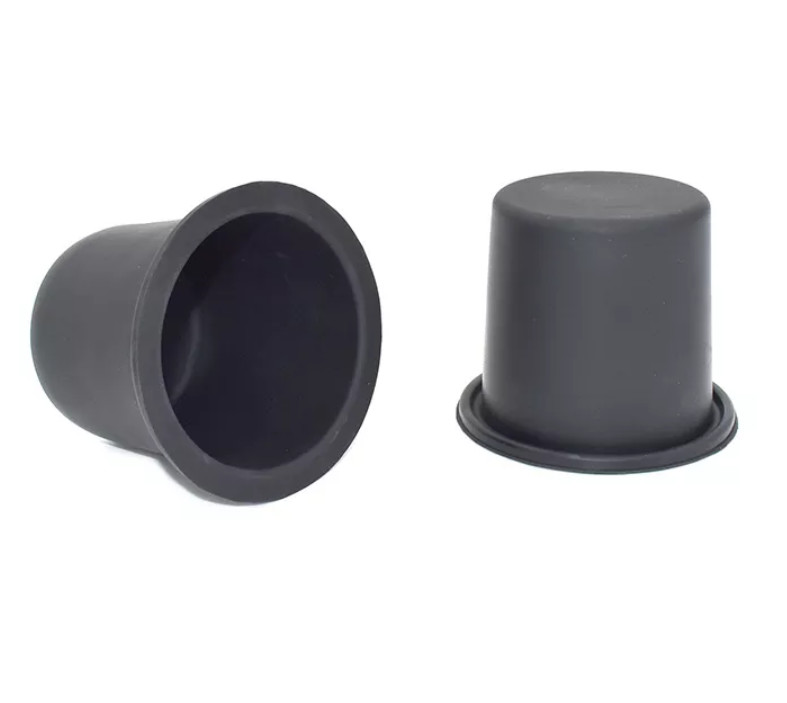

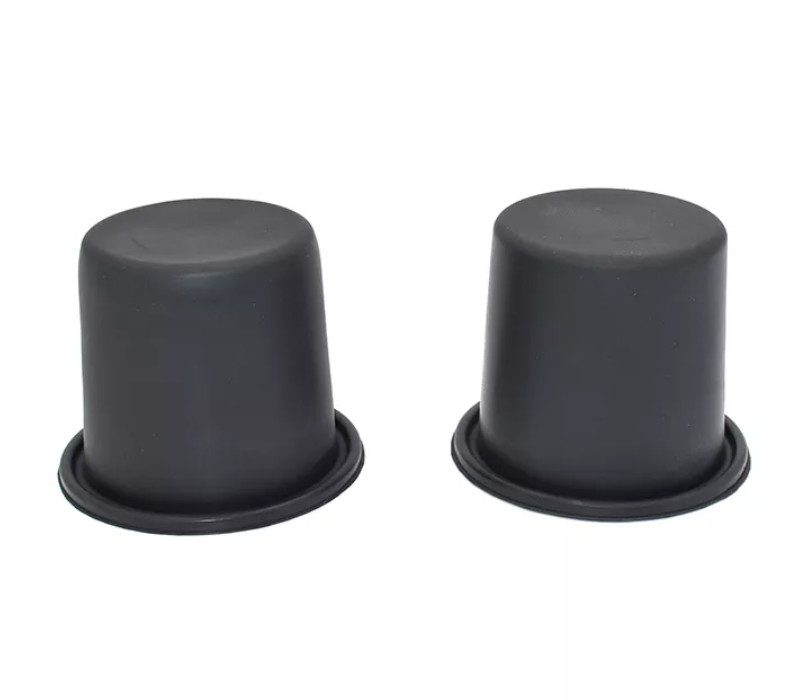

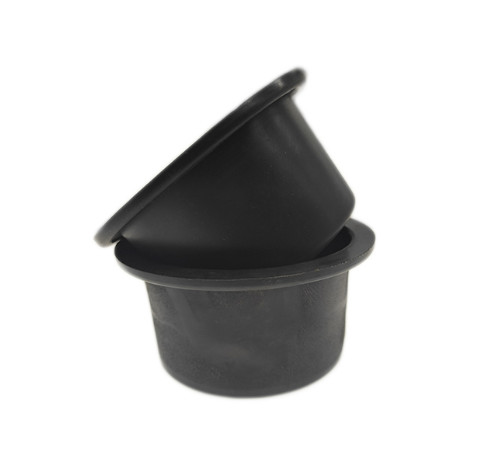

The rolling diaphragm is shaped like a top hat in the free state. It is made of rubber with silk cloth. The middle hole on the top is used for installing the valve stem. In order to fit, fix and seal, the top and bottom can be equipped with 0 type edge changer, or the bottom surrounding with mounting hole.



(1) There should be no straight edges and corners at the corners of the diaphragm, and arcs should be made to avoid easy fracture after folding and loss of glue during vulcanization. The intersection of the inner wall of the sleeve and the end face should also be poured with arc angles to avoid sharp corners. piece.
(2) Diaphragm material: nitrile rubber is used for natural gas and LPG, and chlorohydrin rubber is used for gas.
(3) There is an elastic polyester cloth interlayer in the diaphragm. Carefully observe the inner and outer surfaces of the diaphragm. One side can vaguely see the pattern of the mesh cloth, and the other side is a smooth surface. The smooth surface is required to be the pressure surface of the gas. Therefore, For the diaphragm installed in the forward direction, the smooth surface is on the inner surface of the diaphragm, and the smooth surface of the diaphragm installed in the reverse direction is on the outer surface, which can avoid leakage and improve the compressive strength of the diaphragm.

NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm 0NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm 1NBR NR EPDM FKM CR Pneumatic Cut Off Valve Diaphragm Valve Rubber Diaphragm 2



Materials details:



For the present, common materials for rolling diaphragm are: natural rubber (NR), nitrile butadiene rubber (NBR), the performance of the two materials can meet the needs of most industrial environments. In special industrial environments (high temperature resistance, acid and alkali resistance) could use EPDM, fluorine rubber (FKM), neoprene rubber (CR) for production, but the cost is relatively high.





Specifications:



Rolling Diaphragm Model

Outer diameter(mm)

Inside diameter(mm)

  Base diameter(mm) Height(mm) Thickness(mm) Pressure
GMA-20 38 22 17 21 0.6 0.1-1MPa
GMA-201 45 40 33 28 0.7 0.1-1MPa
GMA-202 49 37 26 22 0.7 0.1-1MPa
GMA-21S 61 50 39 29 0.7 0.1-1MPa
GMA-21 63 53 43 33 0.7 0.1-1MPa
GMA-22 65 50 45 51 0.7 0.1-1MPa
GMA-23 80 72 55 35 0.7 0.1-1MPa
GMA-24 94 74 64 45 0.7 0.1-1MPa
GMA-31 96 90 79 90 0.8 0.1-1MPa
GMA-301 98 80 70 34 1.5 0.1-1MPa
GMA-311 120 102 94 60 0.8 0.1-1MPa
GMA-32 140 93.2 83.2 56 1 0.1-1MPa
GMA-33 184 167 155 80 1 0.1-1MPa
GMA-34 216 170 142 40 1.1 0.1-1MPa
GMA-SMI 118 108 100 72 0.9 0.1-1MPa
GMA-SM2 95 87 80 90 0.9 0.1-1MPa
GMA-ST 155 137 110 128 0.8 0.1-1MPa





Our service:



1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.
