Ultra Thin Valve Rubber Diaphragm
| Place of Origin | China |
|---|---|
| Brand Name | Hongum |
| Certification | 3A、CE、SGS approval |
| Model Number | Customized |
| Minimum Order Quantity | 50 PCS |
| Price | USD 100-150/PCS |
| Packaging Details | PE+carton box |
| Delivery Time | 7~15 working days |
| Payment Terms | Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C |
| Supply Ability | 5000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rolling Diaphragm | Material | NBR NR EPDM |
|---|---|---|---|
| Pressure | 0.1-1 MPa | ID | 22-170mm |
| Application | Gas Pressure Regulator | Industry | Industrial |
| High Light | Ultra Thin Valve Rubber Diaphragm,NBR Valve Rubber Diaphragm,EPDM Rolling Diaphragm |
||
Product Description

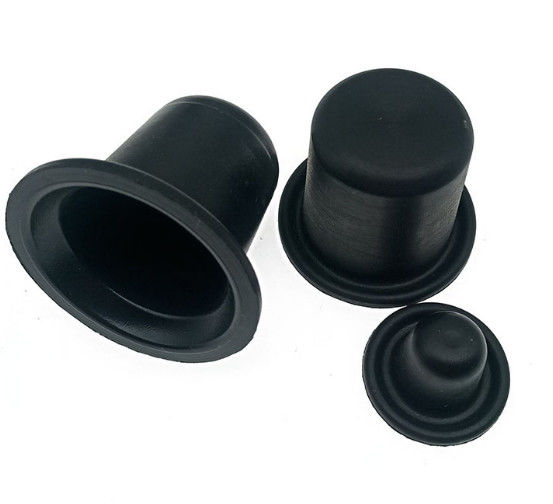

Ultra Thin Valve Rubber Diaphragm Film Rolling Diaphragm NBR NR EPDM
Quick details:
| Product Materials | NBR,NR |
| Operating Temperature | -20℃~80℃ |
| Service Life | ≥1000000 times |
| Usage Scenario | Gas pressure regulator |
Introduction:
The rolling diaphragm is shaped like a top hat in the free state. It is made of rubber with silk cloth. The middle hole on the top is used for installing the valve stem. In order to fit, fix and seal, the top and bottom can be equipped with 0 type edge changer, or the bottom surrounding with mounting hole.
Materials details:
For the present, common materials for rolling diaphragm are: natural rubber (NR), nitrile butadiene rubber (NBR), the performance of the two materials can meet the needs of most industrial environments. In special industrial environments (high temperature resistance, acid and alkali resistance) could use EPDM, fluorine rubber (FKM), neoprene rubber (CR) for production, but the cost is relatively high.
Characteristics:
Fabrication technics of textile makes the product tear resistance stronger
High quality raw materials ensure the excellent performance of the material
Specifications:
| Rolling Diaphragm | Model | Outer diameter(mm) | Inside diameter(mm) | Base diameter(mm) | Height(mm) | Thickness(mm) | Pressure |
| GMA-20 | 38 | 22 | 17 | 21 | 0.6 | 0.1-1MPa | |
| GMA-201 | 45 | 40 | 33 | 28 | 0.7 | 0.1-1MPa | |
| GMA-202 | 49 | 37 | 26 | 22 | 0.7 | 0.1-1MPa | |
| GMA-21S | 61 | 50 | 39 | 29 | 0.7 | 0.1-1MPa | |
| GMA-21 | 63 | 53 | 43 | 33 | 0.7 | 0.1-1MPa | |
| GMA-22 | 65 | 50 | 45 | 51 | 0.7 | 0.1-1MPa | |
| GMA-23 | 80 | 72 | 55 | 35 | 0.7 | 0.1-1MPa | |
| GMA-24 | 94 | 74 | 64 | 45 | 0.7 | 0.1-1MPa | |
| GMA-31 | 96 | 90 | 79 | 90 | 0.8 | 0.1-1MPa | |
| GMA-301 | 98 | 80 | 70 | 34 | 1.5 | 0.1-1MPa | |
| GMA-311 | 120 | 102 | 94 | 60 | 0.8 | 0.1-1MPa | |
| GMA-32 | 140 | 93.2 | 83.2 | 56 | 1 | 0.1-1MPa | |
| GMA-33 | 184 | 167 | 155 | 80 | 1 | 0.1-1MPa | |
| GMA-34 | 216 | 170 | 142 | 40 | 1.1 | 0.1-1MPa | |
| GMA-SMI | 118 | 108 | 100 | 72 | 0.9 | 0.1-1MPa | |
| GMA-SM2 | 95 | 87 | 80 | 90 | 0.9 | 0.1-1MPa | |
| GMA-ST | 155 | 137 | 110 | 128 | 0.8 | 0.1-1MPa |
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
