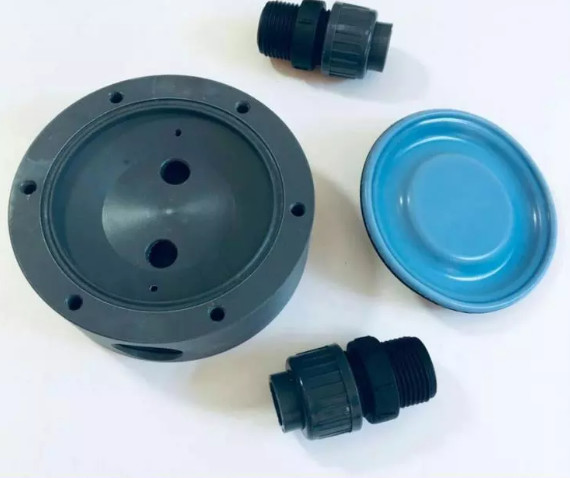

Minton Metering Pump Fit Diaphragm Kit Aging Resistance Composite EPDM

  • Minton Metering Pump Fit Diaphragm Kit Aging Resistance Composite EPDM
  • Minton Metering Pump Fit Diaphragm Kit Aging Resistance Composite EPDM
  • Minton Metering Pump Fit Diaphragm Kit Aging Resistance Composite EPDM
  • Minton Metering Pump Fit Diaphragm Kit Aging Resistance Composite EPDM
Place of Origin CHINA
Brand Name HONGUM
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 20pcs
Price 30-500usd / pc
Packaging Details Carton packing
Delivery Time 5-25days
Payment Terms T/T, L/C
Supply Ability 3000pcs/month
Product Details
Features Aging Resistance, Corrosion Resistance, Good Elasticity Name Metering Pump Diaphragm
Material PTFE+EPDM、NBR Color Black/Grey
Process Composite Process Use Scenario Pharmaceutical, Food, Chemical
Highlight

Milton Roy Pump Kit Diaphragm

,

Composite Metering Pump Diaphragm

,

EPDM
Leave a Message
Product Description

Minton Metering Pump Fit Diaphragm Kit Aging Resistance Composite EPDM





Characteristics:



Resistant to chemical media other than acid-base metal, element fluorine; High temperature resistance, aging resistance, corrosion resistance, good elasticity, high and low temperature resistance, long service life



Features: rigidity, strength, compression, compensation



Product Material PTFE+EPDM
Service Life ≥1000000 times
Size DN8-DN200
Use Scenario



Pharmaceutical, food, chemical






Material:



EPDM is suitable for hygienic applications where the operating temperature does not exceed 100 ° C



EPDM - short for Ethylene - propylene - diene Monomer, its main characteristics for superior elasticity, oxidation resistance, ozone resistance and corrosion resistance, the film is suitable for polar material and steam, also hot water, cold water, alkaline medium and non-concentrated acid. The temperature range of EPDM is not as good as PTFE, and it is suitable for sanitary grade applications where the operating temperature does not exceed 100℃. For example, purified water systems. It should be noted that EPDM membrane is not recommended to be used for mineral oil, plant and animal lipids, aliphatic series or aromatic hydrocarbons, furnace solvents or concentrated acids, because EPDM will swell when encountering organic matter.

Minton Metering Pump Fit Diaphragm Kit Aging Resistance Composite EPDM 0



Product performance:

  • 100% pure PTFE sealing surface, providing a clean pollution-free sealing surface.
  • A unique composite process which firmly sticks PTFE to the rubber elastomer, preventing delamination and leakage.
  • They're the choice in the electronics industry, chemical plants, and pharmaceutical factories.
  • Resistant to chemical media other than acid-base metals and elemental fluorine.
  • Good rigidity, strength and compression, resilience, compensation performance, which can meet high pressure and harsh conditions.



Our service:



1. Packaging is neutral packing or customized packing.



2. We will reply you within 24 hours.



3. We will also provide you with good after-sales service.



4. OEM or ODM orders are welcomed.



5. Trial orders are acceptable.



6. High quality and factory price.



7. 100% ensured the quality.
