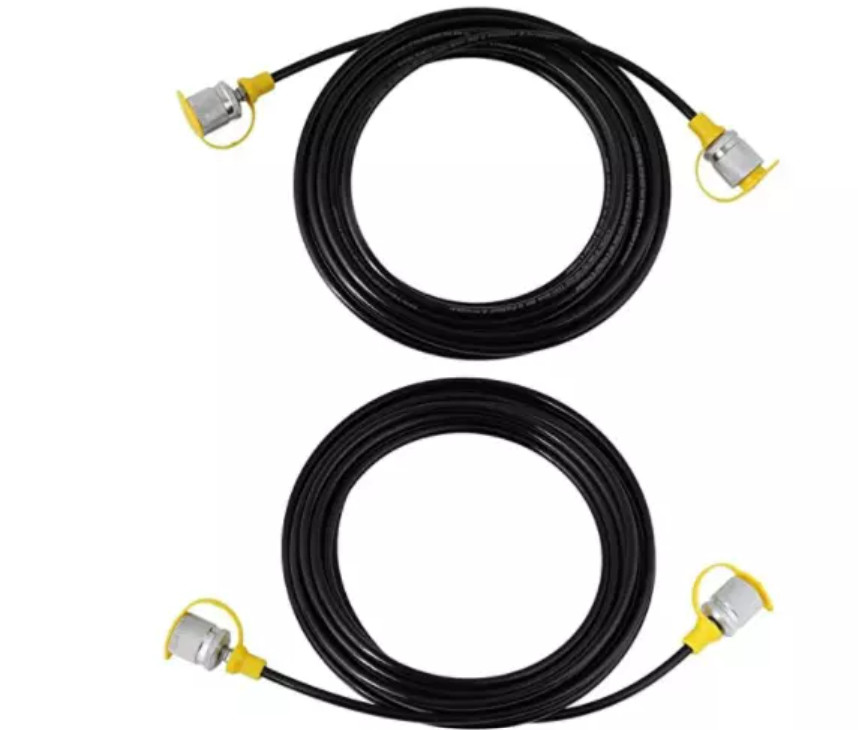

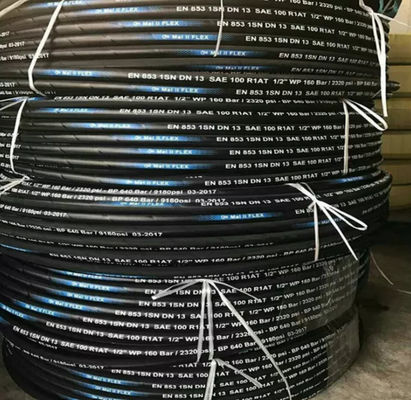

Winding Rubber High Pressure Hydraulic Hose Excavator Steel Wire Braided Hydraulic Hose

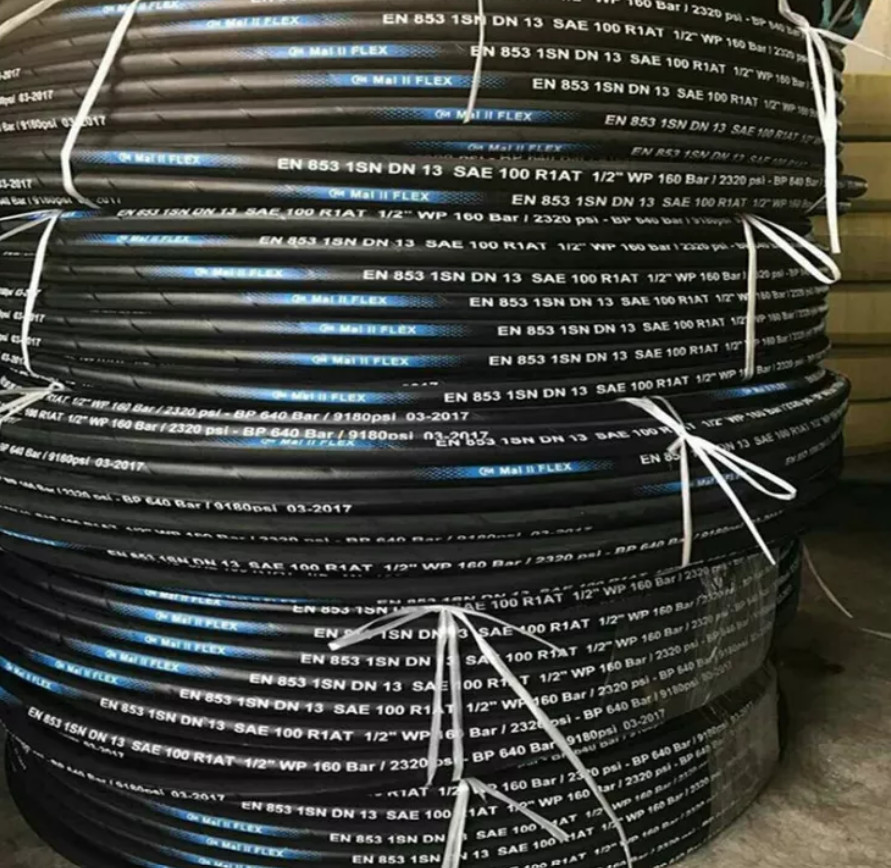

We produce:

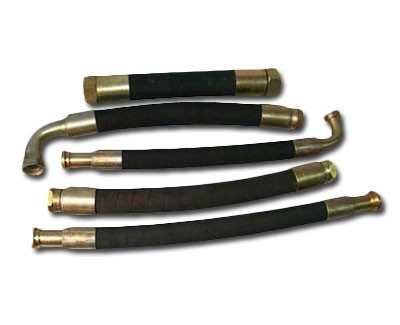

Excavator winding rubber hose, Winding high-pressure rubber hose, Engraving engineering steel wire winding rubber hose, Hydraulic support rubber hose, Loader rubber hose, K-type rubber hose, etc.
Quick details:
| Category | High pressure steel wire winding hose |
| Product Specifications | 194SP, 254SP, 324SP, |
| Application Range | Excavators, loaders, hook machines, construction machinery vehicles, |
| Length Size | 20 meters a piece |
| Working Pressure | 45MPA |

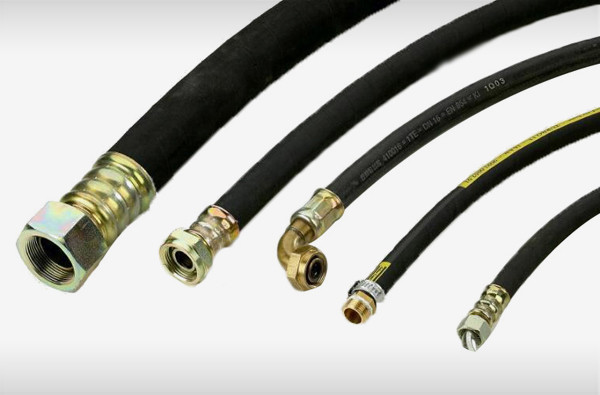

1. Product structure:
The structure of steel wire braided hose is composed of liquid-resistant synthetic rubber inner rubber layer, middle rubber layer, I or II or III steel wire braided reinforcement layer, and synthetic rubber outer rubber layer with excellent weather resistance.
2. Product use:
Steel wire reinforced hydraulic rubber hose is mainly used for mine hydraulic support, oil field mining, suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and mechanization and automatic hydraulic pressure in various industrial sectors Transporting petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) liquid, water-based liquid (such as emulsion, oil-water emulsion, water), gas, etc. and liquid transmission with certain pressure and temperature in the system use.
Note: The steel wire braided hose of our company is designed and manufactured according to the GB/T3683-2011 standard, and ISO/DIS1436-1985, DIN20022 and SAE100RIAT, SAE100R2AT standard hoses can be manufactured according to requirements. This standard is not suitable for castor oil-based and grease-based liquids.
3. Working temperature: oil -40 ℃—+100 ℃, air -30 ℃—+50 ℃, water emulsion below +80 ℃, please choose our special products.
Technical parameters of single-layer steel wire braided hose:
GB/T3683-2011
| Hose Specifications |
ID mm |
Diameter of steel wire layer mm |
OD mm |
Work pressure | Test pressure | Burst pressure |
Small bending radius mm |
Reference weight | |||
| MPa | Psi | MPa | Psi | MPa | Psi | ||||||
| 1-5-21 | 5±0.5 | 9.5±0.6 | 12.7±0.8 | 21 | 3043 | 31.5 | 4564 | 63 | 9129 | 90 | 0.25 |
| 1-6-20 | 6±.0.5 | 11.3±0.6 |
+1.0 15.3 -0.8 |
21 | 3043 | 31.5 | 4564 | 63 | 9129 | 100 | 0.34 |
| 1-8-18 | 8±0.5 | 13.3±0.6 |
+1.0 17.3 -0.8 |
118 | 2536 | 27 | 3804 | 54 | 7607 | 115 | 0.41 |
| 1-10-16 | 10±0.5 | 15.3±0.6 |
+1.0 19 -0.8 |
16 | 2318 | 24 | 3478 | 48 | 6955 | 130 | 0.47 |
| 1-13-14 | 13±0.5 | 18.8±0.6 |
+1.2 22.8 -0.8 |
14 | 2028 | 21 | 3043 | 42 | 6086 | 180 | 0.67 |
| 1-16-12 | 16±0.5 | 21.8±0.8 |
+1.2 25.8 -1.0 |
12 | 1739 | 18 | 2608 | 36 | 5216 | 205 | 0.70 |
| 1-19-10 | 19±0.5 | 24.8±0.8 |
+1.2 28.8 -1.0 |
10 | 1449 | 15 | 2174 | 30 | 4347 | 240 | 0.84 |
| 1-22-9 | 22±0.5 | 28.7±0.8 |
+1.2 31.8 -1.0 |
9 | 1304 | 13.5 | 1956 | 27 | 3912 | 280 | 0.95 |
| 1-25-8 | 25±0.5 | 31.3±0.8 |
+1.2 35.3 -1.0 |
8 | 1159 | 12 | 1739 | 24 | 3478 | 300 | 1.09 |
| 1-32-6 | 32±0.7 | 38.7±0.8 |
+1.5 42.7-1.2 |
6 | 869 | 9 | 1304 | 18 | 2608 | 420 | 1.24 |
| 1-38-5 | 38±0.7 | 44.7±0.8 |
+1.5 48.7 -1.2 |
5 | 725 | 7.5 | 1087 | 15 | 2174 | 500 | 1.45 |
| 1-51-4 | 51±0.7 | 58.1±0.8 |
+1.5 62.1 -1.2 |
4 | 579 | 6 | 8694 | 12 | 1739 | 630 | 1.90 |
| 1-64-2.5 | 64±1.0 | 71.2±1.0 | 75.2+1.5 | 2.5 | 362 | 3.75 | 543 | 7.5 | 1087 | 770 | 2.40 |
| 1-76-1.5 | 76±1.0 | 83.8±1.0 | 87.8+1.5 | 1.5 | 217 | 2.25 | 326 | 4.5 | 652 | 930 | 2.95 |
| 1-89-1 | 89±1.0 | 96.8±1.0 | 100.8+1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1100 | 3.24 |
| 1-102-1 | 102±1.0 | 111±1.0 | 115+1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1250 | 3.85 |
| 1-127-1 | 127±1.0 | 136±1.0 | 141±1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1500 | 4.80 |
| 1-152-1 | 152±1.0 | 162±1.0 | 167±1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1800 | 5.80 |
| 1-203-1 | 203±1.0 | 214±1.5 | 220±2.0 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 2300 | 8.80 |
