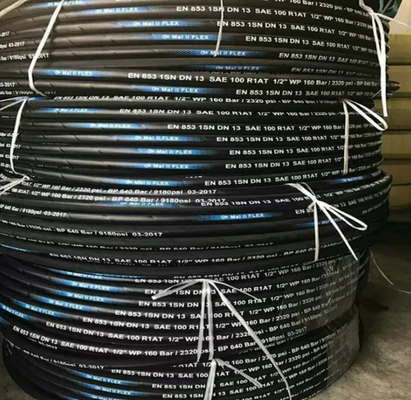

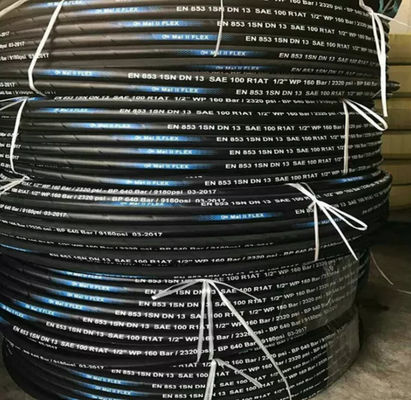

Cloth Rubber High Pressure Hydraulic Hose Oil Resistant Wire Braided Flexible Hose 1-100MPa
| Place of Origin | China |
|---|---|
| Brand Name | Hongum |
| Certification | 3A、CE、SGS approval |
| Model Number | Customized |
| Minimum Order Quantity | 10 meters |
| Price | USD 5-40/Meter |
| Packaging Details | Standard |
| Delivery Time | 7-15 days |
| Payment Terms | Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C |
| Supply Ability | 5000 meters per month |
Product Details
| Features | Wear Resistance, Temperature Resistance | Application | Mining, Hydraulic Support, Hydraulic System, Shearer, Emulsification Pump Roadheader, Engineering Machinery |
|---|---|---|---|
| Model | 194SP, 254SP, 324SP | Product Specification | 6-1000mm |
| Pressure | 1-100MPa | Size | Customized |
| Highlight | Cloth Rubber High Pressure Hydraulic Hose,100MPa High Pressure Hydraulic Hose,1000mm wire braided flexible hose |
||
Product Description
Cloth Rubber High Pressure Hydraulic Hose Oil Resistant Wire Braided Flexible Hose 1-100MPa
We produce:
Water delivery rubber hose, Oil delivery rubber hose, Diesel resistant gasoline hose, Sandblasting hose, Wear-resistant hose, Smooth wire gripping hose, Cotton braided hose, etc.
1. Product structure:
The cloth conveying hose is composed of an inner rubber layer, a multi-layer cloth winding layer and an outer rubber layer.
The cloth suction hose is composed of an inner rubber layer, a multi-layer cloth winding layer, a spiral steel wire reinforcement layer and an outer rubber layer.
2. Product features:
The hose has the characteristics of small outer diameter tolerance, excellent oil resistance and heat resistance, light weight, soft and durable hose body, etc. The small burst pressure of the hose is four times the working pressure.
3. Product use:
Various types of cloth conveying (or suction) hoses are made of corresponding materials according to different conveying media. The product structure is reasonable in design, high in quality, and durable. Flexible hoses for various liquid viscous fluids and powdered solids and other material media.
Specifications:
| Suction hose parameters | ||||||||
| Inner diameter (mm) |
Number of interlayers (layer) |
Diameter of spiral wire (mm) | Pipe joint length (mm) | Hose length | ||||
| Nominal size | Tolerance | Size | Tolerance | Size(m) | Tolerance(mm) | |||
| 38 | 1.2 | 2 | 3 | 2.0 | 75 | 10 | 10 | 150 |
| 51 | 1.2 | 3 | 4 | 2.6 | 100 | 15 | 10 | 150 |
| 64 | 1.5 | 3 | 4 | 2.6 | 100 | 15 | 10 | 150 |
| 76 | 1.5 | 4 | 5 | 2.6 | 100 | 15 | 10 | 150 |
| 89 | 1.5 | 4 | 5 | 3.2 | 100 | 15 | 10 | 150 |
| 102 | 2.0 | 4 | 5 | 3.2 | 125 | 20 | 10 | 150 |
| 127 | 2.0 | 5 | 6 | 3.2 | 125 | 20 | 10 | 150 |
| 152 | 2.0 | 5 | 6 | 4.0 | 150 | 20 | 10 | 150 |
| 203 | 2.5 | 6 | 7 | 5.0 | 200 | 25 | 10 | 150 |
| 254 | 2.5 | 7 | 8 | 5.0 | 200 | 25 | 10 | 150 |
| 305 | 2.5 | 7 | 8 | 5.0 | 250 | 25 | 10 | 150 |
Our service:
Q: Could you follow the customer's specific requirement?
A: Yes, we could do it according to your specific requirement.
Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.
Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
