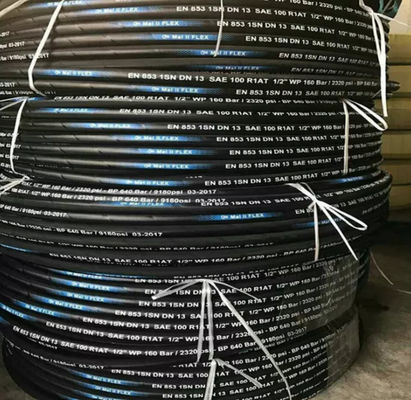

Petroleum Marine Oil High Pressure Hydraulic Hose 1-100MPa
| Place of Origin | China |
|---|---|
| Brand Name | Hongum |
| Certification | 3A、CE、SGS approval |
| Model Number | Customized |
| Minimum Order Quantity | 10 meters |
| Price | USD 5-40/Meter |
| Packaging Details | Standard |
| Delivery Time | 7-15 days |
| Payment Terms | Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C |
| Supply Ability | 5000 meters per week |
Product Details
| Application | Petroleum, Marine | Advantages | Oil-resistant, Corrosion-resistant |
|---|---|---|---|
| Specification | 6-1000mm | Working Pressure | 1-100MPa |
| Working Temperature | Oil -40℃—+100℃ | Length Size | Customized |
| Highlight | Marine High Pressure Hydraulic Hose,Petroleum High Pressure Hydraulic Hose,100MPa High Pressure Oil Hose |
||
Product Description
Petroleum Marine Oil High Pressure Hydraulic Hose 1-100MPa
Product features:
1. The hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.
2. The hose has high bearing pressure and excellent pulse performance.
3. The tube body is tightly combined, soft to use, and less deformed under pressure.
4. The hose has excellent bending resistance and fatigue resistance.
5. The length of the steel wire braided hose is large, and the fixed length is generally 20 meters. It can be produced up to tens of meters or even more than 100 meters.
Structure:
The marine high-pressure oil pipeline is composed of a steel wire wound skeleton layer and internal and external oil-resistant and corrosion-resistant synthetic rubber.
Uses:
Marine high-pressure oil hoses are used for the transportation of submarine natural gas, petroleum and other media.
Specifications:
| Category | Marine high pressure oil hose |
| Product Specifications | 6mm-1000mm |
| Application Range | Petroleum, marine, oil pipeline |
|
Length Size
|
Can be customized according to engineering requirements |
| Working pressure | 1-100MPA |
| Hose Specifications |
Inner Diameter (mm) |
Outer diameter of steel wire layer (mm) |
Hose outer diameter (mm) |
Working Pressure | Test Pressure | Burst Pressure |
Min. Bend Radius (mm) |
Reference Weight KG/M |
|||
|
Model-ID-Pressure- Force |
Mpa | Psi | Mpa | Psi | Mpa | Psi | |||||
| 2sp-152-8 | 152±2.0 | 173±3.0 | 180±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 2280 | 18 |
| 2sp-203-8 | 203±2.0 | 225±3.0 | 232±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 3050 | 24 |
| 2sp-254-8 | 254±2.0 | 280±3.0 | 288±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 3810 | 30 |
| 2sp-305-8 | 305±2.0 | 330±3.0 | 338±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 4510 | 36 |
| 4sp-152-16 | 152±2.0 | 184±3.0 | 192±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 2580 | 24 |
| 4sp-203-16 | 203±2.0 | 236±3.0 | 243±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 3350 | 31 |
| 4sp-254-16 | 254±2.0 | 291±3.0 | 299±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 4110 | 39 |
| 4sp-305-16 | 305±2.0 | 341±3.0 | 350±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 4810 | 47 |
Q&A:
Q: Could you follow the customer's specific requirement?
A: Yes, we could do it according to your specific requirement.
Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.
Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
