Customized Marine High Pressure Hydraulic Hose For Oil Transport
| Place of Origin | China |
|---|---|
| Brand Name | Hongum |
| Certification | 3A、CE、SGS approval |
| Model Number | Customized |
| Minimum Order Quantity | 10 meters |
| Price | USD 5-40/Meter |
| Packaging Details | Standard |
| Delivery Time | 7-15 days |
| Payment Terms | Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C |
| Supply Ability | 5000meters/ week |
Product Details
| Application | Marine, Oil Pipeline | Advantages | Oil-resistant, Corrosion-resistant |
|---|---|---|---|
| Working Temperature | Oil -40℃—+100℃, Air -30℃—+50℃, Water Emulsion Below +80℃ | Product Specification | 6-1000mm |
| Pressure | 1-100MPa | Length Size | Can Be Customized According To Engineering Requirements |
| Highlight | Customized High Pressure Hydraulic Oil Hose,Pipeline High Pressure Hydraulic Oil Hose,100MPa Marine Hydraulic Hose |
||
Product Description

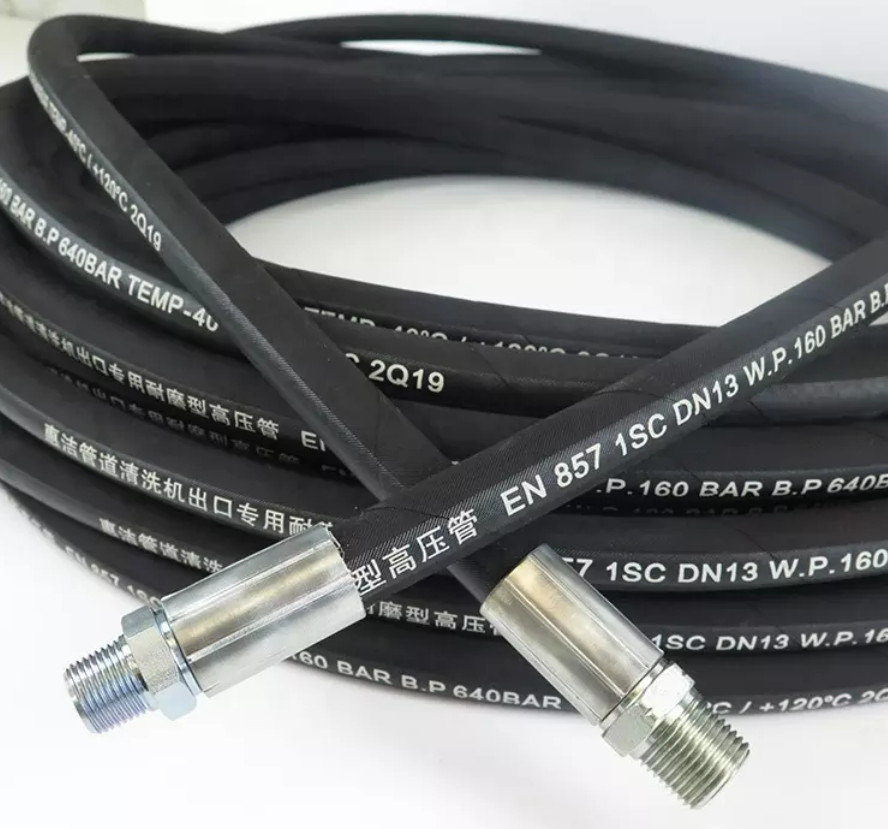

Customized Marine High Pressure Hydraulic Hose for Oil Transport
Product features:
1. The hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.
2. The hose has high bearing pressure and excellent pulse performance.
3. The tube body is tightly combined, soft to use, and less deformed under pressure.
4. The hose has excellent bending resistance and fatigue resistance.
5. The length of the steel wire braided hose is large, and the fixed length is generally 20 meters. It can be produced up to tens of meters or even more than 100 meters.
Quick details:
| Category | Marine high pressure oil hose |
| Product Specifications | 6mm-1000mm |
| Application Range | Petroleum, marine, oil pipeline |
|
Length Size
|
Can be customized according to engineering requirements |
| Working pressure | 1-100MPA |
Specifications:
| Hose Specifications |
Inner Diameter (mm) |
Outer diameter of steel wire layer (mm) |
Hose outer diameter (mm) |
Working Pressure | Test Pressure | Burst Pressure |
Min. Bend Radius (mm) |
Reference Weight KG/M |
|||
|
Model-ID-Pressure- Force |
Mpa | Psi | Mpa | Psi | Mpa | Psi | |||||
| 2sp-152-8 | 152±2.0 | 173±3.0 | 180±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 2280 | 18 |
| 2sp-203-8 | 203±2.0 | 225±3.0 | 232±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 3050 | 24 |
| 2sp-254-8 | 254±2.0 | 280±3.0 | 288±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 3810 | 30 |
| 2sp-305-8 | 305±2.0 | 330±3.0 | 338±4.0 | 8.0 | 1159 | 16.0 | 2318 | 24.0 | 3477 | 4510 | 36 |
| 4sp-152-16 | 152±2.0 | 184±3.0 | 192±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 2580 | 24 |
| 4sp-203-16 | 203±2.0 | 236±3.0 | 243±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 3350 | 31 |
| 4sp-254-16 | 254±2.0 | 291±3.0 | 299±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 4110 | 39 |
| 4sp-305-16 | 305±2.0 | 341±3.0 | 350±4.0 | 16.0 | 2318 | 32.0 | 4636 | 48.0 | 6955 | 4810 | 47 |
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
Q&A
Q: Could you follow the customer's specific requirement?
A: Yes, we could do it according to your specific requirement.
Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.
Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
