Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers

  • Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers
  • Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers
  • Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers
  • Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers
Place of Origin CHINA
Brand Name HONGUM
Certification CE、SGS approval
Model Number Customized
Minimum Order Quantity 50PCS
Price USD 2-40/PCS
Packaging Details Standard Package
Delivery Time 5-15days
Payment Terms L/C, L/C, T/T, Western Union, MoneyGram
Supply Ability 5000PCS/Week
Product Details
Name Rubber Shock Absorber For Hammer Roller Material NR, NBR, SBR, CR, EPDM, TPR, TPU, Silicone, FKM, PU, Etc.
Hardness 45-70 Compression 1.6-8.0
Color Black Color, Grey Color Or Customized Shape FRS/bell/mechanical SW
Highlight

SBR Rubber Absorber

,

Mechanical Rubber Shock Absorber

,

Customized Size Rubber Shock Absorber
Leave a Message
Product Description

Mechanical Shock Absorber with Rubber Technology for Hammer Rollers FRS - OEM Option





Quick details:



Product Name Rubber Vibration Damper Silent Block Shock Absorbers
Material Neoprene NR, NBR, SBR, CR, EPDM, TPR, TPU, Silicone, FKM, PU and so on.
Color Black, white, yellow, green, blue, grey, red, etc.
Hardness From 40 Shore A to 90 Shore A( tolerance +/-3) for customer choose.
Size and Design Basing on customer need, any size we can produce.
Production Process Mold making, raw material mixing, preforming, vulcanization





Characteristics of rubber:



1. Rubber is known for its high elasticity and viscoelasticity, making it an excellent material for shock absorption applications.
2. Compared to steel, rubber deforms more easily and has a smaller modulus, allowing it to absorb shocks more effectively.
3. Rubber's impact stiffness is greater than its dynamic stiffness, which is greater than its static stiffness. This makes rubber ideal for reducing impact and dynamic deformation.
4. Rubber can be easily shaped to meet specific stiffness and strength requirements, and its hardness can be adjusted through formula design.



When choosing a shock absorber, it is important to understand its unique characteristics and consider the environment in which it will be used. Rubber shock absorbers can be designed to meet specific needs, with adjustable hardness and greater damping ratio than springs, shears, and compressors. They are also easy to install. By selecting the right material for the shock absorber, its performance and lifespan can be greatly improved.

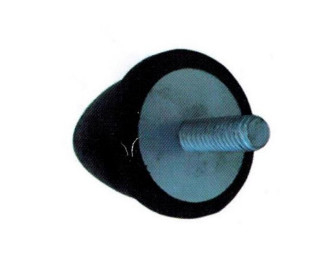

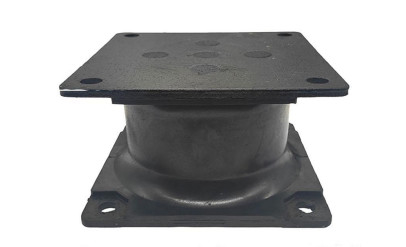

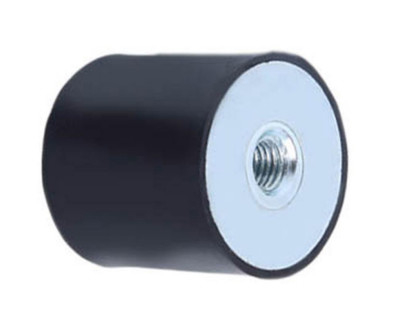

Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers 0Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers 1







Specifications:



Model Hardness A B C E F

Average load

kg/mm

Maximum load

kg/mm

Maximum compression

mm
FRH633008W 45 63 30 M 89 110 70 140 2
FRH633008M 60 63 30 M8 89 110 120 240 2
FRH633010W 45 63 30 M8 89 110 70 140 2
FRH633010M 60 63 30 M10 89 110 120 240 2
FRH783010W 45 78 30 M10 11 135 47 108 2.3
FRH783010M 60 78 30 M10 11 135 116 267 2.3
FRH783012W 45 78 30 M10 110 135 47 108 2.3
FRH783012M 60 78 30 M12 110 135 116 267 2.3
FRH783010W 45 83 30 M12 110 135 65 130 2
FRH83301OM 60 83 30 M10 110 135 98 196 2
FRH833012W 45 83 30 M10 110 135 65 130 2
FRH833O12M 60 83 30 M1O 110 135 98 196 2
FRH923510W 45 92 35 M10 123.5 150 50 175 3.5
FRH923510M 60 92 35 M10 123.5 150 90 315 3.5
FRH923512W 45 92 35 M12 123.5 150 50 175 3.5
FRH923512M 60 92 35 M12 123.5 150 90 315 3.5
FRH1063812W 45 106 38 M12 143 175 70 252 3.6
FRH1063812M 60 106 38 M12 143 175 150 450 3
FRH1063816W 45 106 38 M16 143 175 70 252 3.6
FRH1063816M 60 106 38 M16 143 175 150 450 3
FRH1254316W 45 125 43 M16 156 192 88 352 4
FRH1254316M 60 125 43 M16 156 192 185 740 4
FRH1505016W 45 150 50 M16 182 218 120 720 6
FRH1505016M 60 150 50 M16 182 218 220 1320 6
FRH1505020W 45 150 50 M20 182 218 120 720 6
FRH1505020M 60 150 50 M20 180 218 220 1320 6





Model Hardness L B CF F S

Average

compressive stiffness

daN/mm

Maximum compression value

daN

Average shear

Maximum shear value

daN
SW15OWK 45 150 65 126 11 8 140.0 1320.0 22.0 170.0
SW150WK 60 150 65 126 11 8 170.0 1650.0 27.0 215.0
SW174K 50 174 75 146 13 5 110.0 1600.0 14.0 130.0
SW174M 60 174 75 146 13 5 160.0 2100.0 25.0 234.0





FRS TYPE

Model

Hardness

(daN/mm)

 A B P F×M CF L S

Average load

(Kg/mm)

Maximum load

(kg)

Maximum

compression

(mm)
FRS63×3510W 40 63 35 M10 9×12 88 110 2 7.0 30.0 4.3
FRS63×3510M 60 15.8 60.0 3.8
FRS78×3510W 40 78 35 M10 11.5×15 110 135 3 / / /
FRS78×3510M 60 / / /
FRS78×3512W 40 78 35 M12 11.5×15 110 135 3 / / /
FRS78×3512M 60 / / /
FRS83×3510W 40 83 35 M10 11.5×15 110 135 3 17.8 80.0 4.5
FRS83×351OM 60 44.5 180.0 4.0
FRS83×3512W 40 83 35 M12 11.5×15 110 135 3 17.8 80.0 4.5
FRS83×3512M 60 44.5 180.0 4.0
FRS92×4210W 40 92 42 M10 10×15 123.5 150 3 / / /
FRS92×4210M 60 / / /
FRS92×4212W 40 92 42 M12 10×15 123.5 150 3 / / /
FRS92×4212M 60 / / /
FRS92×4212H 75 / / /
FRS106×4212W 40 106 42 M12 13×19 143 175 4 33.5 167.0 5.0
FRS106×4212M 60 67.0 335.0 5.0
FRS125×4812W 40 125 48 M12 14.5×20 156 192 4 / / /
FRS125×4812M 60 / / /
FRS125×4816W 40 125 48 M16 14.5×20 156 192 4 / / /
FRS125×4816M 60 / / /







Packing and Shipping


Packaging: Each carton contains 200 pieces (quantity varies according to size).



Shipping: We offer flexible shipping options to suit your needs, including Door-to-Door Air Freight, FOB, and CFR.



We provide quick delivery via reliable couriers, including DHL, FedEx, UPS, and TNT Express, as well as Air and Ocean shipping.



Thanks to our partnerships with several courier companies, we are able to offer affordable shipping rates. We ship our products worldwide, unless otherwise stated.

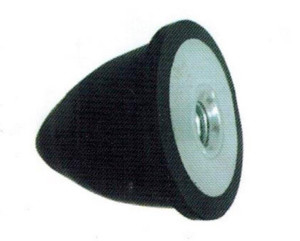

Mechanical Rubber Shock Absorber With Customized Size And Shape Black Absorbers 2



Our service:



1. We offer neutral or customized packaging for our products.

2. We guarantee a response within 24 hours.

3. We provide excellent after-sales service.

4. We welcome OEM or ODM orders.

5. Trial orders are accepted.

6. We offer high-quality products at a factory price.

7. We ensure 100% product quality.
