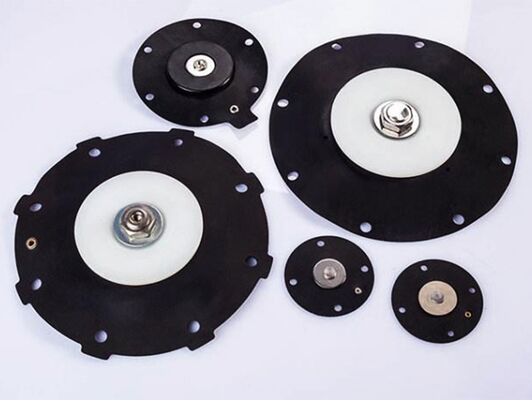

304 Stainless Steel Screws Actuated Diaphragm Featuring Temperature Range Negative 20 to 150 Degrees Celsius for Robust Industrial

Product Description:

The Pulse Valve Diaphragm is a critical component designed for use within advanced Valve Actuation Systems, ensuring reliable and efficient operation of pulse valves across various industrial applications. Crafted with precision, this Valve Diaphragm is engineered to meet the highest standards of durability and performance, making it an indispensable part of any valve assembly requiring precise control and long-lasting functionality.

One of the standout features of this Pulse Valve Diaphragm is its robust construction, incorporating screws made from 304 stainless steel. This choice of material not only guarantees superior corrosion resistance but also enhances the overall strength and longevity of the diaphragm assembly. The 304 stainless steel screws ensure secure fastening and reliable mounting, even in demanding environments where exposure to moisture, chemicals, or extreme conditions is common.

Designed for easy installation, the Pulse Valve Diaphragm features a bolt-on mounting type. This mounting approach facilitates straightforward replacement and maintenance, reducing downtime and simplifying the servicing process. The bolt-on design ensures a tight and secure fit, preventing leaks and maintaining optimal sealing performance within the Valve Actuation System.

The diaphragm itself is manufactured with a thickness of 2.5mm, striking the perfect balance between flexibility and durability. This thickness allows the diaphragm to respond swiftly to pressure changes, enabling precise valve actuation while maintaining structural integrity under repeated cycles. The 2.5mm thickness also contributes to the diaphragm’s resistance to wear and tear, extending its operational lifespan even under continuous use.

In terms of operational parameters, the Pulse Valve Diaphragm is rated to handle pressures ranging from 0.2 MPa to 0.8 MPa. This pressure rating makes it suitable for a wide range of valve actuation scenarios, from low-pressure control systems to more demanding applications requiring higher pressure endurance. The reliable pressure tolerance ensures consistent performance and safety, preventing diaphragm failure and ensuring smooth valve operation.

Temperature resilience is another key attribute of this Valve Diaphragm. It is designed to operate effectively within a wide temperature range, from -20°C up to +150°C. This broad operating temperature range allows the diaphragm to function efficiently in both cold and high-temperature environments, making it adaptable to diverse industrial settings such as chemical processing, power generation, and manufacturing.

Overall, the Pulse Valve Diaphragm offers a combination of high-quality materials, precise engineering, and versatile operational capabilities. Its integration within a Valve Actuation System guarantees enhanced control, reliability, and efficiency. By utilizing 304 stainless steel screws, a bolt-on mounting type, a 2.5mm thickness, a pressure rating of 0.2 to 0.8 MPa, and an operating temperature range from -20°C to +150°C, this Valve Diaphragm stands out as a premium choice for ensuring optimal valve performance.

Whether you are looking to replace an existing diaphragm or design a new valve system, this Pulse Valve Diaphragm provides the durability and precision necessary to maintain smooth valve actuation and minimize maintenance requirements. Its robust construction and adaptable features make it an essential component for any high-performance Valve Actuation System, delivering consistent results and long-term reliability.

Features:

• Product Name: Pulse Valve Diaphragm
• Material: Nitrile Rubber (NBR) for durability and flexibility
• Membrane Material: TPE for enhanced performance
• Thickness: 2.5mm ensuring optimal strength
• Material Quality: High-grade Nitrile for reliable operation
• Temperature Range: -20℃ to 150℃ suitable for various environments
• Designed specifically for Valve Actuation System applications
• Ensures efficient and precise operation within the Valve Actuation System
• Critical component in the Valve Diaphragm for maintaining system integrity

Technical Parameters:

Applications:

The HONGUM Pulse Valve Diaphragm is an essential component designed specifically for pulse actuated valve systems, ensuring reliable performance and longevity. Crafted from high-quality nitrile rubber (NBR), this actuated diaphragm offers exceptional durability and resistance to wear and tear, making it ideal for demanding industrial environments. Its membrane is made from TPE, providing excellent flexibility and resilience, which contributes to the consistent operation of pulse jet valves.

Thanks to its precise surface treatment, including polishing and sandblasting, the HONGUM Pulse Valve Diaphragm delivers superior sealing capabilities and smooth operation. These treatments enhance the diaphragm's surface finish, reducing friction and preventing premature failure, which is critical for maintaining the efficiency of pulse actuated valve systems. With a pressure rating ranging from 0.2 to 0.8 MPa, this product is well-suited for various applications where controlled pulse actuation is required.

This pulse valve diaphragm is compatible with a wide range of pulse jet valves, making it a versatile choice for industries such as dust collection, pneumatic conveying, and air pollution control. In dust collector systems, the diaphragm plays a vital role in regulating the pulse of compressed air that cleans filter bags, ensuring optimal filtration performance and prolonging the life of the filters. The reliable actuation provided by the HONGUM diaphragm helps maintain consistent airflow and pressure levels, which are crucial for system efficiency.

Additionally, the HONGUM Pulse Valve Diaphragm is used in various industrial scenarios involving automated pneumatic systems that rely on pulse actuated valves. These scenarios include manufacturing plants, power generation facilities, and chemical processing units where precise control of air pulses is necessary for operational safety and effectiveness. The diaphragm’s robust material composition and surface enhancements ensure it withstands harsh conditions, including exposure to oils, chemicals, and fluctuating pressures.

In summary, the HONGUM Pulse Valve Diaphragm is a premium solution for applications requiring dependable pulse actuation. Its compatibility with pulse jet valves, combined with advanced material and surface treatment features, makes it an ideal choice for maintaining the integrity and performance of pulse actuated valves across a multitude of industrial environments.

Customization:

HONGUM offers customized Pulse Valve Diaphragm solutions tailored to meet your specific requirements. Our PM-60 model features a durable 2.5mm thickness, ensuring reliable performance in various applications. With advanced surface treatments such as polishing and sandblasting, each diaphragm is optimized for enhanced durability and smooth operation.

Designed to operate efficiently within a temperature range of -20°C to +150°C and working temperatures between -10°C to 60°C, the HONGUM Pulse Valve Diaphragm is ideal for use in Valve Actuator systems. Whether you require components for a Valve Actuator or a Pulse Actuated Valve, our customization services ensure compatibility and superior functionality for your equipment.

Trust HONGUM for precision-engineered diaphragms that enhance the performance of your Valve Actuator and Pulse Actuated Valve applications, providing longevity and reliable operation under varying conditions.

Support and Services:

Our Pulse Valve Diaphragm product is supported by a dedicated technical support team committed to ensuring optimal performance and longevity of your equipment. We provide comprehensive troubleshooting assistance, installation guidance, and maintenance tips tailored to your specific application needs.

Our services include detailed product documentation, performance optimization recommendations, and replacement part sourcing to minimize downtime. We also offer training sessions and technical consultations to help your team maximize the efficiency and reliability of the Pulse Valve Diaphragm.

For any technical inquiries or service requests, our experts are ready to assist you with prompt and professional support to keep your operations running smoothly.

Packing and Shipping:

Product Packaging and Shipping for Pulse Valve Diaphragm

The Pulse Valve Diaphragm is carefully packaged to ensure it arrives in perfect condition. Each diaphragm is individually wrapped with protective materials to prevent any damage during transit. The wrapped diaphragms are then placed in sturdy, labeled boxes that provide additional cushioning and support.

For bulk orders, the diaphragms are packed securely in larger cartons or crates, with adequate padding to minimize movement and impact. All packaging materials used are environmentally friendly and designed to maintain product integrity.

Shipping is conducted through reliable carriers with tracking options available to ensure timely and safe delivery. We offer various shipping methods, including standard, expedited, and freight services, to meet customer requirements worldwide.

Upon shipment, customers receive detailed documentation including packing lists and tracking information to facilitate smooth receipt and inspection of the Pulse Valve Diaphragm products.
