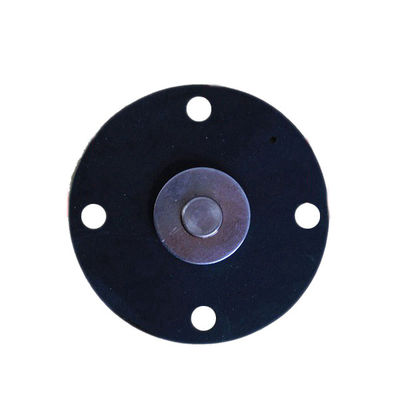

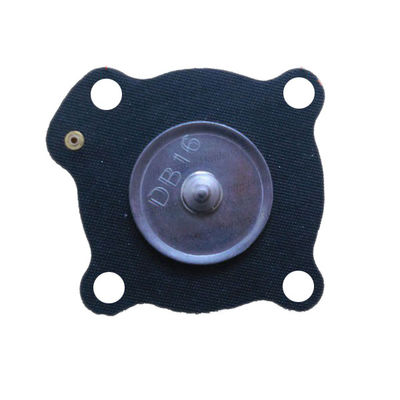

CR FR Filter Pulse Valve Diaphragm Aging Resistance

Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 5 PCS
Price USD 5-150/PCS
Packaging Details Poly bag+carton box
Delivery Time 7-15 days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description Rubber Diaphragm Usage Scenario Bag Filter Devices /precipitator Equipment
Materials NBR、NR、CR、FR Temperature Of Media -20℃~80℃
Service Life ≥1000000 Times Product Grade SSS
High Light

Aging Resistance Pulse Valve Diaphragm

,

FR Pulse Valve Diaphragm

,

CR filter Diaphragm

Leave a Message
Product Description

CR FR Filter Pulse Valve Diaphragm Aging Resistance





Quick details:



1 Features: Fabrication technics of textile, tear resistance
2 Materials: NBR/ nitrile butadiene rubber/ butyronitrile rubber, NR/ natural rubber, CR, FR
3 Usage scenarios: Bag filter devices /precipitator equipment
4 Temperature range: -20℃~80℃
5 Models: HF-DN25, HF-Z-25, HF-DN40, HF-M40, HF-M75, HF-DB116, HF-DB18M, HF-Y-102, HF-DN76, HF-DN76S, HF-DN62 , HF-DN62Y, HF-20A, HF-DN25, HF-DN40, HF-DN20, HF-DN25, HF-3 and a half inches, HF-DB-16, HF-DN20, HF-small diaphragm, HF-DN50 , HF-40, HF-1.5 inch, HF-D-15M, HF-028
7 Product Grade: SSS
8 Place of Origin: Hebei, China





Brief introduction of electromagnetic pulse valve diaphragm:



The electromagnetic pulse valve diaphragm is a whole piece of rubber diaphragm installed with a riveting head used to block the compressed air pipeline or the air outlet of the blocking valve, a venting unloading hole and a bolt hole for fixed support around it. It is the key control part in the electromagnetic pulse valve.



CR FR Filter Pulse Valve Diaphragm Aging Resistance 0CR FR Filter Pulse Valve Diaphragm Aging Resistance 1CR FR Filter Pulse Valve Diaphragm Aging Resistance 2CR FR Filter Pulse Valve Diaphragm Aging Resistance 3





Features:



• Fabrication technics of textile makes the product tear resistance stronger

• High quality raw materials ensure the excellent performance of the material itself



Product Materials NBR,NR
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario Bag filter devices/precipitator equipment





Working principle:



The electromagnetic pulse valve diaphragm divides the pulse valve into two air chambers. When the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, the pulse valve is in a closed state, the pulse controller outputs a signal to move the armature of the pulse valve, the vent hole of the air chamber behind the valve is opened, and the rear air chamber quickly loses pressure, making the The diaphragm moves backward, the compressed air is blown through the outlet of the valve, the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the electromagnetic pilot of the pulse valve is reset, the vent hole of the rear air chamber is closed, and the back When the pressure of the air chamber rises, the diaphragm of the pulse valve is close to the air outlet of the valve, the pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.





Our service:



1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.
