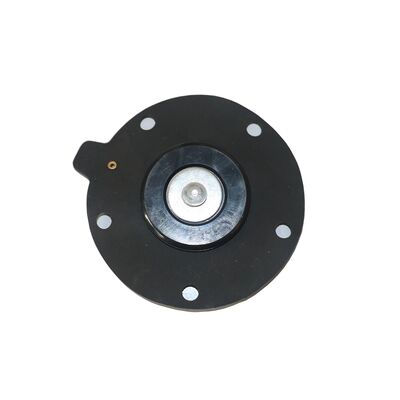

Bolt-on Mountingtype Valve Actuator Featuring 304 Stainless Steel Screws for Heavy Duty Industrial Applications

Product Description:

The Pulse Valve Diaphragm, model PM-60, is a critical component designed to ensure optimal performance and reliability in valve actuation systems. Engineered with precision and durability in mind, this actuated diaphragm plays an essential role in controlling the flow of air or fluids within various industrial applications. Its robust construction and high-quality materials make it an ideal choice for demanding environments where consistent valve operation is paramount.

One of the standout features of the PM-60 Pulse Valve Diaphragm is its impressive pressure rating, supporting pressures ranging from 0.2 to 0.8 MPa. This range allows the diaphragm to function effectively across a wide variety of systems, accommodating different operational requirements without compromising performance. Whether used in low-pressure or moderately high-pressure scenarios, the PM-60 maintains its integrity and responsiveness, ensuring precise valve actuation.

The material quality of the valve diaphragm is another significant aspect contributing to its reliability. Constructed from premium nitrile rubber, the diaphragm offers excellent resistance to wear, abrasion, and chemical exposure. Nitrile’s inherent flexibility and resilience make it an excellent choice for actuated diaphragms, as it can withstand repeated cycles of movement without degradation. This longevity reduces maintenance frequency and enhances the overall efficiency of the valve actuation system.

Temperature tolerance is crucial in many industrial applications, and the PM-60 Pulse Valve Diaphragm excels in this regard. It is designed to operate efficiently within a broad temperature range of -20℃ to 150℃. This capability ensures that the valve diaphragm performs reliably in both low-temperature environments, such as cold storage or refrigeration systems, and high-temperature settings, including various manufacturing processes. The wide temperature tolerance prevents material failure and extends the service life of the diaphragm under fluctuating thermal conditions.

In addition to the diaphragm material, the PM-60 model incorporates screws made from 304 stainless steel. This choice of fasteners ensures robust assembly integrity and corrosion resistance. Stainless steel screws not only secure the diaphragm firmly in place but also contribute to the overall durability of the valve actuation system. Their resistance to rust and chemical attack makes them suitable for use in harsh environments, further enhancing the longevity and reliability of the pulse valve assembly.

The PM-60 Pulse Valve Diaphragm is specifically designed to integrate seamlessly into valve actuation systems, providing smooth and responsive control of valve movements. As an actuated diaphragm, it converts pressure changes into mechanical motion, enabling precise regulation of flow within the valve mechanism. This functionality is vital for applications requiring timely and accurate valve operations, such as dust collection systems, pneumatic conveying, and fluid control in industrial automation.

Moreover, the Valve Diaphragm’s design ensures minimal leakage and optimal sealing, which are critical for maintaining system efficiency and safety. The combination of nitrile material and stainless steel screws guarantees a secure fit and consistent performance over extended periods, reducing the risk of operational downtime caused by diaphragm failure.

In summary, the PM-60 Pulse Valve Diaphragm is a high-performance component engineered to meet the rigorous demands of modern valve actuation systems. Its pressure rating from 0.2 to 0.8 MPa, nitrile construction, wide temperature range of -20℃ to 150℃, and durable 304 stainless steel screws collectively provide a reliable solution for various industrial applications. This actuated diaphragm not only enhances the efficiency and longevity of valve systems but also ensures precise and dependable valve control, making it an indispensable part of any advanced valve actuation setup.

Features:

• Product Name: Pulse Valve Diaphragm
• Mounting Type: Bolt-on for easy installation
• Material Quality: High-grade Nitrile Rubber (NBR) ensuring durability
• Material: Nitrile Rubber (NBR) for excellent resistance and flexibility
• Surface Treatment: Polishing, Sandblasting, and other finishing techniques for enhanced performance
• Thickness: 2.5mm, providing optimal strength and flexibility
• Designed for use in Valve Actuation Systems to ensure reliable operation
• Functions as an Actuated Diaphragm within the Valve Actuator assembly
• Compatible with various Valve Actuator models for versatile applications

Technical Parameters:

Applications:

The HONGUM Pulse Valve Diaphragm is an essential component designed for use in pulse actuated valve systems, delivering exceptional performance and durability. Manufactured with high-quality Nitrile Rubber (NBR) and enhanced with a TPE membrane material, this actuated diaphragm ensures excellent flexibility and resilience under demanding operating conditions. The integration of 304 stainless steel screws, combined with advanced surface treatments such as polishing and sandblasting, guarantees superior corrosion resistance and long-lasting reliability. This makes the HONGUM Pulse Valve Diaphragm an ideal choice for various industrial applications where precision and durability are paramount.

In industrial dust collection systems, the pulse valve diaphragm plays a critical role in controlling the timing and intensity of pulse actuated valves. The valve actuator relies on the diaphragm's responsiveness to regulate the airflow and maintain optimal dust removal efficiency. The HONGUM diaphragm’s robust material composition and surface treatment enable it to withstand harsh environmental factors, including abrasive dust particles and fluctuating temperatures, ensuring continuous and trouble-free operation.

The product is also widely used in pneumatic control systems where pulse actuated valves are employed to manage the flow of gases or liquids. The actuated diaphragm’s elasticity and tight sealing capabilities make it indispensable for maintaining system integrity and preventing leaks. Thanks to its Hs Code 8481901000 classification, the HONGUM Pulse Valve Diaphragm complies with international standards, making it suitable for global industrial use.

Additionally, the diaphragm finds applications in valve actuators within various manufacturing sectors, including chemical processing, pharmaceuticals, and food production. The careful selection of materials such as NBR and TPE membrane ensures chemical resistance and compatibility with different media. The stainless steel screws and refined surface finish contribute to easy installation and maintenance, reducing downtime and operational costs.

Whether used in routine maintenance or as part of new valve actuator assemblies, the HONGUM Pulse Valve Diaphragm stands out for its reliability and efficiency. Its design supports consistent performance in pulse actuated valve systems, making it a preferred choice for engineers and technicians aiming to optimize valve actuator functionality across diverse industrial scenarios.

Customization:

At HONGUM, we offer comprehensive product customization services for our Pulse Valve Diaphragm to meet your specific requirements. Our diaphragms are made from high-quality Nitrile and TPE membrane materials, ensuring durability and optimal performance in your Pulse Actuated Valve systems. We provide various surface treatment options, including polishing and sandblasting, to enhance the diaphragm's functionality and longevity.

Our customization extends to packaging solutions, with options such as carton boxes, wooden cases, and more, designed to protect the product during transportation and storage. Each Pulse Valve Diaphragm is manufactured in compliance with HS Code 8481901000 standards, guaranteeing quality and reliability.

Whether you need a diaphragm compatible with your Valve Actuator or are integrating it into a Valve Actuator assembly, HONGUM ensures precise fitting and superior performance. Trust our expertise to deliver tailored solutions that optimize the efficiency of your valve actuator systems.

Support and Services:

Our Pulse Valve Diaphragm products are designed to deliver reliable and efficient performance in a wide range of industrial applications. To ensure optimal operation and longevity of your pulse valve diaphragm, we offer comprehensive technical support and services.

Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips provided by our team of experts. We also offer detailed product documentation, including datasheets, installation manuals, and maintenance instructions to help you understand the specifications and proper handling of the diaphragm.

In addition to support, we provide services such as custom diaphragm solutions tailored to specific application requirements, quality inspections, and replacement part availability. Our commitment is to minimize downtime and maximize efficiency by ensuring that your pulse valve diaphragm operates at peak performance.

Please refer to our technical resources or contact our support team for any inquiries or assistance needed regarding your pulse valve diaphragm product.

Packing and Shipping:

Product Packaging and Shipping

The Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. Each diaphragm is individually wrapped in protective material to prevent damage and contamination. The wrapped diaphragms are then placed in sturdy, corrugated cardboard boxes that provide cushioning and support.

For bulk orders, multiple boxes are securely packed into larger cartons or crates, with additional padding as needed to avoid movement and impact. All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics.

We offer various shipping options to meet your delivery requirements, including standard, expedited, and freight shipping. Our logistics partners ensure timely and safe delivery to your specified location, with tracking available for all shipments.

Please contact our sales team for special packaging requests or to arrange customized shipping solutions tailored to your needs.
