Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material

  • Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material
  • Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material
  • Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material
  • Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 50 PCS
Price USD 5-150/PCS
Packaging Details PE+carton box
Delivery Time 7~15 working days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month
Product Details
Name Self Operated Pneumatic Actuator Kit Diaphragm Material EPDM FKM CR
Application Self Operated Pneumatic Actuator Working Temperature - 20℃~80℃
Condition Low Pressure Model HF-GMA-03 HF-GMA-46
Highlight

Self Operated Pneumatic Actuator Diaphragm

,

EPDM Pneumatic Actuator Diaphragm

,

FKM Rubber Rolling Diaphragm
Leave a Message
Product Description

Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material





Product overviews:

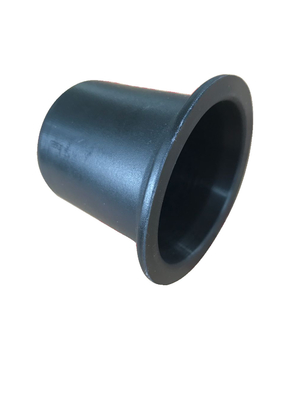

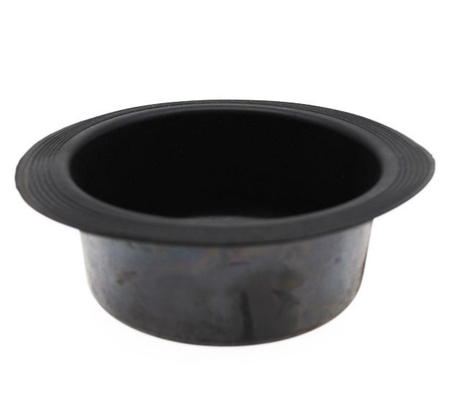

The rolling diaphragm is shaped like a top hat in the free state. It is made of rubber with silk cloth. The middle hole on the top is used for installing the valve stem. In order to fit, fix and seal, the top and bottom can be equipped with 0 type edge changer, or the bottom surrounding with mounting hole.



Product Materials NBR,NR
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario gas pressure regulator





Characteristcs:



Fabrication technics of textile makes the product tear resistance stronger

High quality raw materials ensure the excellent performance of the material itself

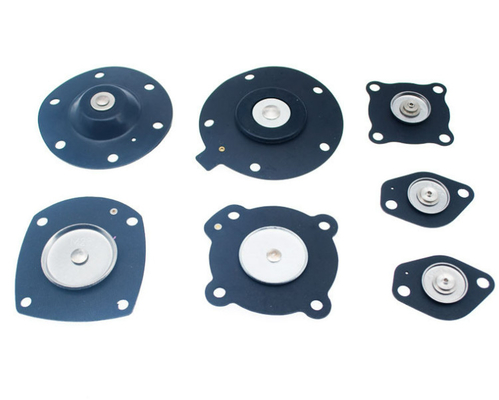

Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material 0Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material 1Self Operated Pneumatic Actuator Kit Diaphragm Rubber Rolling Diaphragm EPDM FKM CR Material 2





Specifications:



Rolling Diaphragm Model

Outer diameter(mm)

Inside diameter(mm)

  Base diameter(mm) Height(mm) Thickness(mm) Pressure
GMA-20 38 22 17 21 0.6 0.1-1MPa
GMA-201 45 40 33 28 0.7 0.1-1MPa
GMA-202 49 37 26 22 0.7 0.1-1MPa
GMA-21S 61 50 39 29 0.7 0.1-1MPa
GMA-21 63 53 43 33 0.7 0.1-1MPa
GMA-22 65 50 45 51 0.7 0.1-1MPa
GMA-23 80 72 55 35 0.7 0.1-1MPa
GMA-24 94 74 64 45 0.7 0.1-1MPa
GMA-31 96 90 79 90 0.8 0.1-1MPa
GMA-301 98 80 70 34 1.5 0.1-1MPa
GMA-311 120 102 94 60 0.8 0.1-1MPa
GMA-32 140 93.2 83.2 56 1 0.1-1MPa
GMA-33 184 167 155 80 1 0.1-1MPa
GMA-34 216 170 142 40 1.1 0.1-1MPa
GMA-SMI 118 108 100 72 0.9 0.1-1MPa
GMA-SM2 95 87 80 90 0.9 0.1-1MPa
GMA-ST 155 137 110 128 0.8 0.1-1MPa





Our service:



1. Packaging is neutral packing or customized packing.



2. We will reply you within 24 hours.



3. We will also provide you with good after-sales service.



4. OEM or ODM orders are welcomed.



5. Trial orders are acceptable.



6. High quality and factory price.



7. 100% ensured the quality.
