316 Stainless Steel Corrugated Tube Customized Hose Low Temperature Resistance
Introduction:
• As a flexible pressure-resistant pipe fitting, the metal hose is installed in the liquid conveying system to compensate for the mutual displacement of the connecting ends of pipes or machines and equipment, absorb vibration energy, and can play the role of vibration reduction and noise reduction. It has good flexibility and light weight. , corrosion resistance, fatigue resistance, high and low temperature resistance and many other advantages.
• The stainless steel metal hoses, stainless steel bellows, stainless steel metal soft joints, etc. produced by the company's stainless steel metal hose (metal bellows) business department are made of imported materials. Among them, stainless steel wire braided hose, fluid conveying metal bellows, stainless steel pump with vibration damping hose, stainless steel fire hose, stainless steel bellows compensator, and gas machinery stainless steel bellows fully comply with domestic industrial standards.
• The product has the advantages of good flexibility, corrosion resistance, fatigue resistance, high and low temperature resistance, shock absorption and noise reduction, strong sealing and long service life. Widely used in textile, chemical fiber, printing and dyeing, petroleum, chemical, steel, gas, air conditioning, automobile, fire protection, urban water supply, construction, metallurgy, petrochemical and other fields.
Quick details:
| Category | Stainless Steel Metal Hose/Armored Tube |
| Product Specifications | 5mm-5000mm |
| Application range | Power plants, steel mills, etc. |
|
|
Can be customized according to engineering |
| Working pressure | 0-50MPA |
Structure:

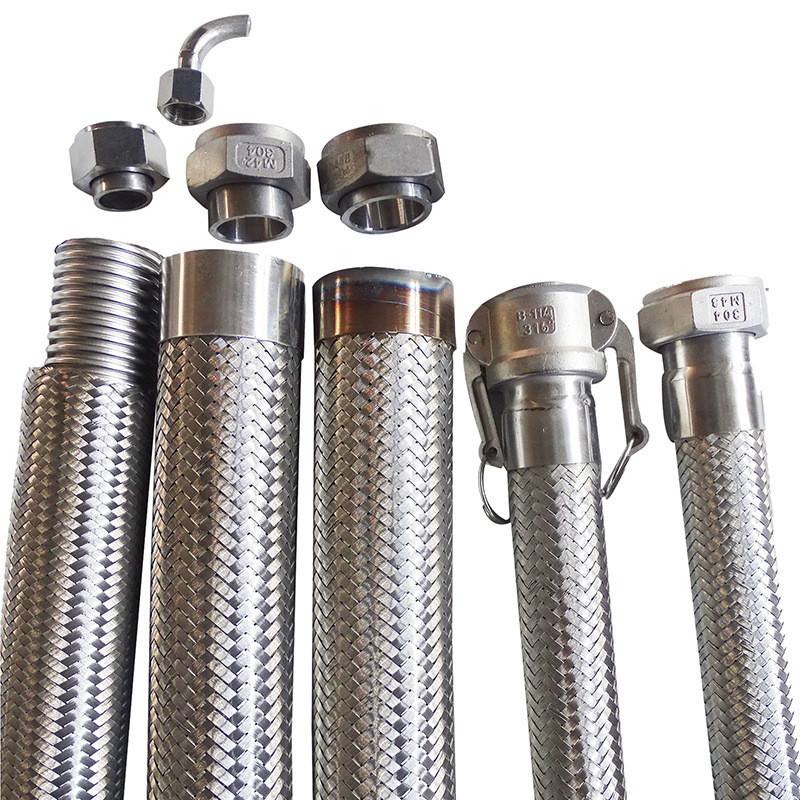

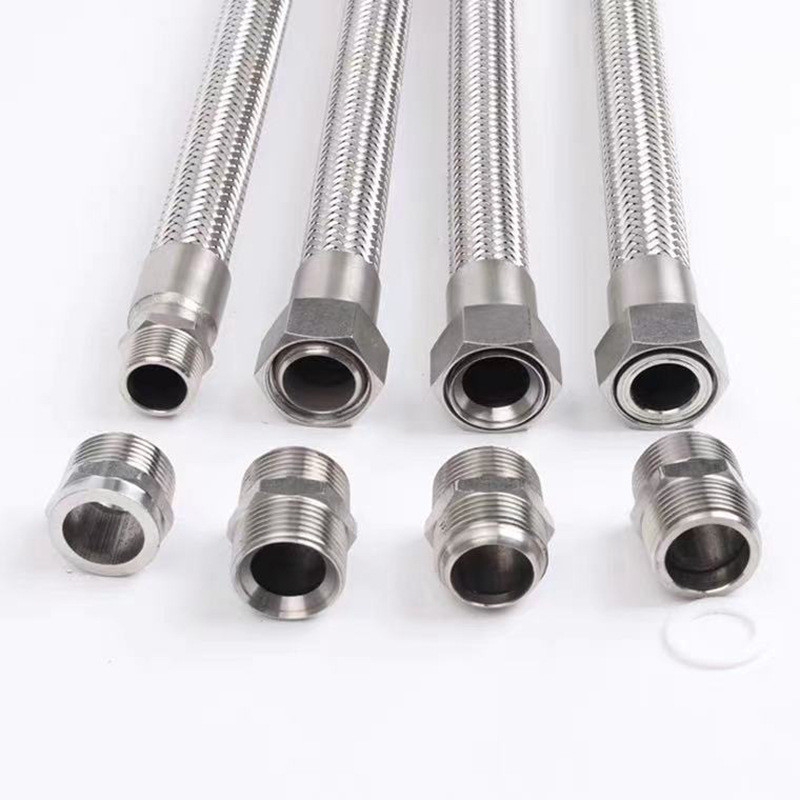

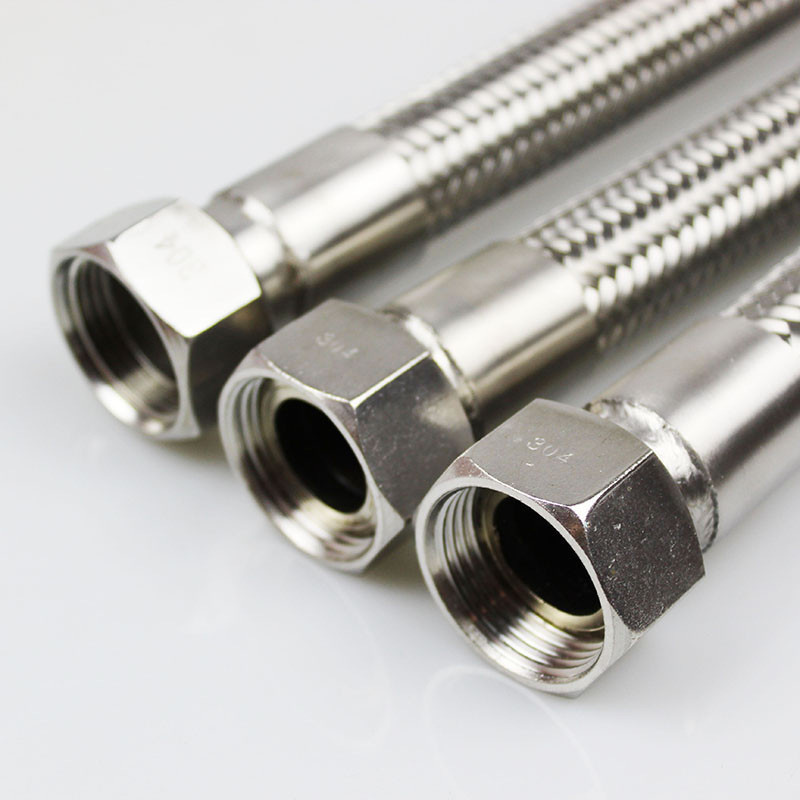

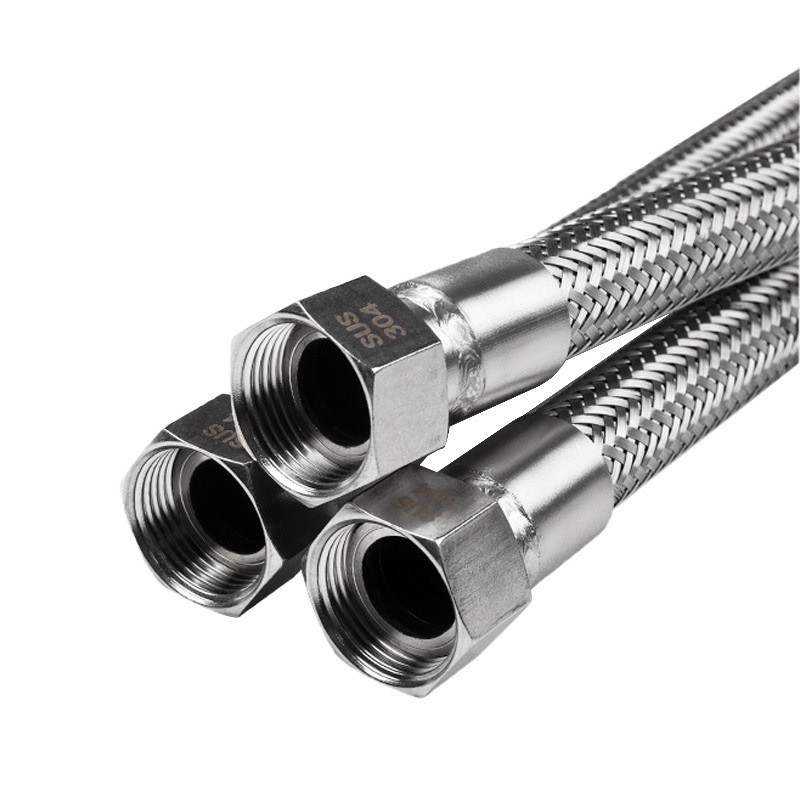

It is a flexible element that is made of stainless steel bellows with one or more layers of steel wire or steel belt mesh sleeves, with joints or flanges at both ends, and is used to transport various media.
Features:
Corrosion resistance, high temperature resistance, low temperature resistance (-196 ℃ ~ +420 ℃), light weight, small size, good flexibility. Widely used in aviation, aerospace, petroleum, chemical, metallurgy, electric power, paper, wood, textile, construction, medicine, food, transportation and other industries.
Main use:
1. Transport corrosive chemical media or organic solvents. (For example: loading and unloading ammonia water, etc.)
2. Transport high temperature medium such as high temperature gas and hot oil. (For example: hot steam, heat transfer oil, etc.)
3. Conveying cryogenic or ultra-low temperature media. (Example: liquid nitrogen)
4. Transport water, steam, oil and other media in high temperature environment. (For example: water vapor system and hydraulic system in coking, steelmaking, continuous casting equipment)
5. Lines that require shock absorption or noise cancellation. (Example: pump inlet and outlet)
Specifications:
| Category |
Normal inner diameter |
Small inner diameter |
Large outer diameter | Work pressure | Test pressure | Burst pressure | Small bending radius | ||
| (mm) | Mpa | PSI | (Mpa) | (Mpa) | Static(mm) | Dynamic(mm) | |||
| High pressure |
4 |
2.5 |
8.5 |
35 |
5071 |
1.5PN | 3PN | >=10DN | ≥2Rj |
| Medium pressure |
4 |
2.5 |
8.5 |
10 | 1449 | 4PN | |||
|
12 |
12 |
20 |
8.0 | 1159 | |||||
|
20 |
20 |
28 |
6.4 | 927 | |||||
|
32 |
32 |
42 |
4.0 | 579 | |||||
|
4 |
4 |
8.5 |
2.5 | 362 | |||||
| Low pressure |
12 |
2 |
1.6 | 231 | |||||
|
25 |
24 |
34 |
1.0 | 144 | |||||
|
40 |
40 |
52 |
2.5 | 362 | |||||
|
75 |
75 |
92 |
1.6 | 231 | |||||
|
125 |
25 |
61 |
1.0 | 144 | |||||
|
200 |
200 |
252 |
0.8 | 116 | Note: PN, PS, Pb are all values at 20°C |
||||
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
