Hydraulic Machinery Valve Rubber Diaphragm Customized Oil Cylinder Rolling Diaphragm

  • Hydraulic Machinery Valve Rubber Diaphragm Customized Oil Cylinder Rolling Diaphragm
  • Hydraulic Machinery Valve Rubber Diaphragm Customized Oil Cylinder Rolling Diaphragm
  • Hydraulic Machinery Valve Rubber Diaphragm Customized Oil Cylinder Rolling Diaphragm
  • Hydraulic Machinery Valve Rubber Diaphragm Customized Oil Cylinder Rolling Diaphragm
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number GMA-32
Minimum Order Quantity 50 PCS
Price USD 5-150/PCS
Packaging Details PE+carton box
Delivery Time 7~15 working days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month
Product Details
Name Oil Cylinder EPDM CR FKM Rolling Diaphragm, Hydraulic Machinery Valve Rubber Diaphragm Material NBR NR EPDM, Etc
Application Gas Pressure Regulator, Oil Cylinder, Hydraulic Machinery Operating Temperature -20℃~80℃
Service Life ≥1000000 Times Size DN8 - DN200 Or Customized
Model GMA-32 Or Custom Sample Available
Highlight

Customized Oil Cylinder Rolling Diaphragm

,

CR Rolling Diaphragm Seal

,

Hydraulic Machinery Valve Rubber Diaphragm
Leave a Message
Product Description

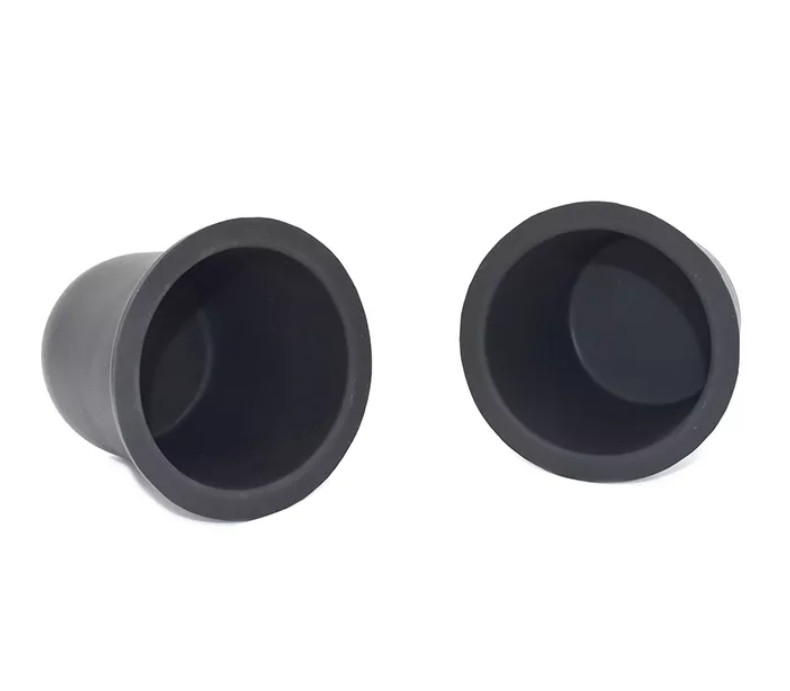

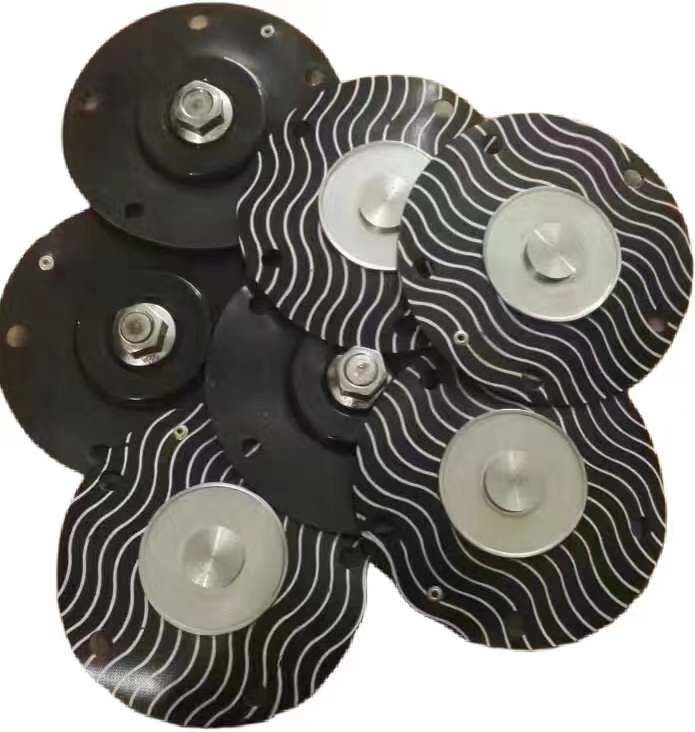

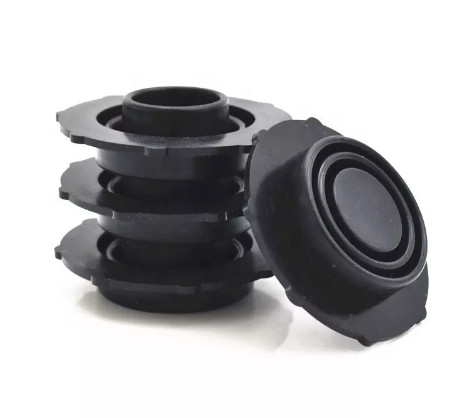

Customized Oil Cylinder EPDM CR FKM Rolling Diaphragm Hydraulic Machinery Valve Rubber Diaphragm



  •

  • Oil Cylinder EPDM CR FKM Rolling Diaphragm​ Introduction:

  •

  • In the design of some medium and low pressure regulators, in order to solve the problem of unbalanced pressure regulator disc and improve the performance of the regulator, the method of installing a balanced diaphragm is often used. Installing a balancing diaphragm increases the differential pressure between the inlet and outlet pressures of the regulator. In the voltage regulator industry, it is called a balanced diaphragm in terms of use, and it is called a rolling diaphragm in rubber, instrumentation, machinery and other industries.

  •

    Product Materials NBR,NR,etc.
    Operating Temperature -20℃~80℃
    Service Life ≥1000000 times

    Usage Scenario

    Gas pressure regulator


    (1) There should be no straight edges and corners at the corners of the diaphragm, and arcs should be made to avoid easy fracture after folding and loss of glue during vulcanization. The intersection of the inner wall of the sleeve and the end face should also be poured with arc angles to avoid sharp corners, piece.
    (2) Diaphragm material: nitrile rubber is used for natural gas and LPG, and chlorohydrin rubber is used for gas.
    (3) There is an elastic polyester cloth interlayer in the diaphragm. Carefully observe the inner and outer surfaces of the diaphragm. One side can vaguely see the pattern of the mesh cloth, and the other side is a smooth surface. The smooth surface is required to be the pressure surface of the gas. Therefore, For the diaphragm installed in the forward direction, the smooth surface is on the inner surface of the diaphragm, and the smooth surface of the diaphragm installed in the reverse direction is on the outer surface, which can avoid leakage and improve the compressive strength of the diaphragm.

  •

  •

  • Oil Cylinder EPDM CR FKM Rolling Diaphragm Material details:

  •

    For the present, common materials for rolling diaphragm are: natural rubber (NR), nitrile butadiene rubber (NBR), the performance of the two materials can meet the needs of most industrial environments. In special industrial environments (high temperature resistance, acid and alkali resistance) could use EPDM, fluorine rubber (FKM), neoprene rubber (CR) for production, but the cost is relatively high.







Oil Cylinder EPDM CR FKM Rolling Diaphragm ​Specifications:



Rolling Diaphragm Model

Outer diameter(mm)

Inside diameter(mm)

  Base diameter(mm) Height(mm) Thickness(mm) Pressure
GMA-20 38 22 17 21 0.6 0.1-1MPa
GMA-201 45 40 33 28 0.7 0.1-1MPa
GMA-202 49 37 26 22 0.7 0.1-1MPa
GMA-21S 61 50 39 29 0.7 0.1-1MPa
GMA-21 63 53 43 33 0.7 0.1-1MPa
GMA-22 65 50 45 51 0.7 0.1-1MPa
GMA-23 80 72 55 35 0.7 0.1-1MPa
GMA-24 94 74 64 45 0.7 0.1-1MPa
GMA-31 96 90 79 90 0.8 0.1-1MPa
GMA-301 98 80 70 34 1.5 0.1-1MPa
GMA-311 120 102 94 60 0.8 0.1-1MPa
GMA-32 140 93.2 83.2 56 1 0.1-1MPa
GMA-33 184 167 155 80 1 0.1-1MPa
GMA-34 216 170 142 40 1.1 0.1-1MPa
GMA-SMI 118 108 100 72 0.9 0.1-1MPa
GMA-SM2 95 87 80 90 0.9 0.1-1MPa
GMA-ST 155 137 110 128 0.8 0.1-1MPa





  • Hydraulic Machinery Valve Rubber Diaphragm Customized Oil Cylinder Rolling Diaphragm 0Hydraulic Machinery Valve Rubber Diaphragm Customized Oil Cylinder Rolling Diaphragm 1
  •

Hongum supply various of rubber diaphragms, dampers and all kinds of other rubber and plastic hardwares for boat, yacht, wharf and sea farm industries, such as marine float, fast ray paddle, and other boat and wharf rubber and plastic accessories.

  •
  • Our service:
  •

1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.





Tags:

Air Compressor Diaphragm

Valve Rubber Diaphragm

Rubber Rolling Diaphragm
