Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems

  • Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems
  • Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems
  • Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems
  • Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number GMA-03
Minimum Order Quantity 50 PCS
Price USD 5-150/PCS
Packaging Details PE+carton box
Delivery Time 7~15 working days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month
Product Details
Name Rolling Diaphragm, Fuel Regulator Valve Rubber Diaphragm Material NBR NR EPDM FKM CR
Usage Scene Fuel Regulator Color Black Or Customized
Service Life More Than 1000000 Times Model GMA-03 Or Custom
Pressure 0.1-1 MPa Thickness 06-1.5 Mm Or Custom
Highlight

Energy Systems Diaphragm Seal

,

Barometric Fuel Regulator Valve Rubber Diaphragm

,

1.5mm Rubber Diaphragm Seal
Leave a Message
Product Description

Spincraft Energy Systems Diaphragm Seal Barometric Fuel Regulator Valve Rubber Diaphragm





Fuel Regulator Valve Rubber Diaphragm Product Overviews:

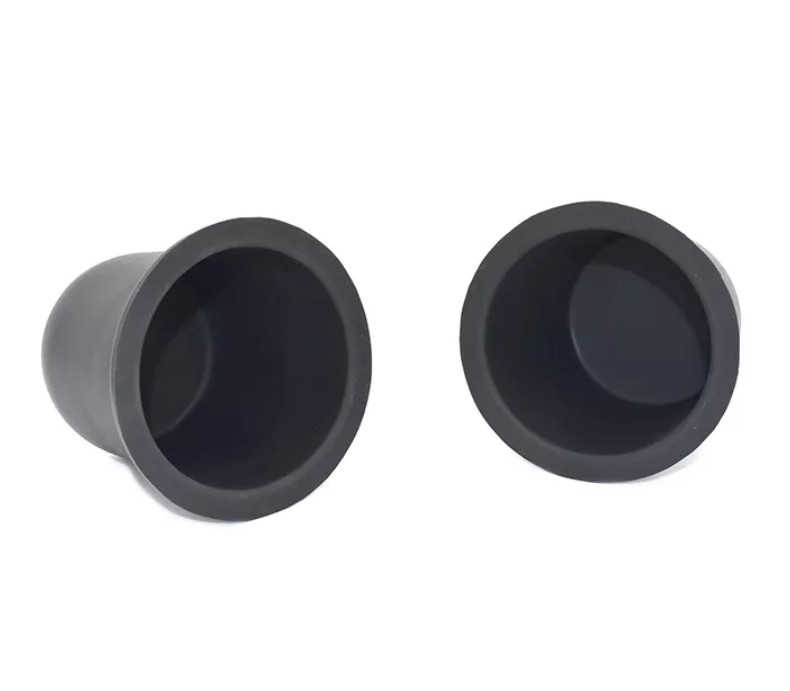

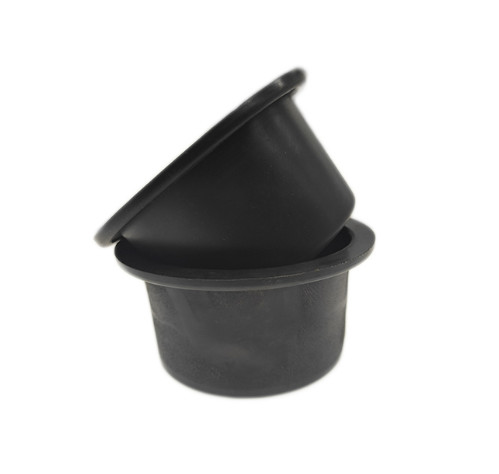

The rolling diaphragm is shaped like a top hat in the free state. It is made of rubber with silk cloth. The middle hole on the top is used for installing the valve stem. In order to fit, fix and seal, the top and bottom can be equipped with 0 type edge changer, or the bottom surrounding with mounting hole.



Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems 0Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems 1Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems 2Barometric Fuel Regulator Valve Rubber Diaphragm Seal For Spincraft Energy Systems 3



Compared with the rubber corrugated diaphragm used in regulating valves, the rolling diaphragm has a higher pressure resistance. Almost all the pressure load of the rolling diaphragm is supported by the piston, and only a small part of the liquid pressure or gas pressure is supported by the narrow area of the diaphragm, so the rolling diaphragm can obtain greater pressure bearing capacity and higher thrust.

​

Product Materials NBR,NR, etc.
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario Gas pressure regulator





Fuel Regulator Valve Rubber Diaphragm Introduction:



In the design of some medium and low pressure regulators, in order to solve the problem of unbalanced pressure regulating valve disc and improve the performance of the pressure regulator, the method of installing a balance diaphragm is often used. When a balancing diaphragm is installed, the differential pressure between the inlet pressure and the outlet pressure of the regulator can be increased. In the regulator industry, it is called a balance diaphragm in terms of use, and it is called a rolling diaphragm in the rubber, instrument, machinery and other industries.





Fuel Regulator Valve Rubber Diaphragm Material details:



For the present, common materials for rolling diaphragm are: natural rubber (NR), nitrile butadiene rubber (NBR), the performance of the two materials can meet the needs of most industrial environments. In special industrial environments (high temperature resistance, acid and alkali resistance) could use EPDM, fluorine rubber (FKM), neoprene rubber (CR) for production, but the cost is relatively high.





Fuel Regulator Valve Rubber Diaphragm Specifications:



Rolling Diaphragm Model

Outer diameter(mm)

Inside diameter(mm)

 Base diameter(mm) Height(mm) Thickness(mm) Pressure
GMA-20 38 22 17 21 0.6 0.1-1MPa
GMA-201 45 40 33 28 0.7 0.1-1MPa
GMA-202 49 37 26 22 0.7 0.1-1MPa
GMA-21S 61 50 39 29 0.7 0.1-1MPa
GMA-21 63 53 43 33 0.7 0.1-1MPa
GMA-22 65 50 45 51 0.7 0.1-1MPa
GMA-23 80 72 55 35 0.7 0.1-1MPa
GMA-24 94 74 64 45 0.7 0.1-1MPa
GMA-31 96 90 79 90 0.8 0.1-1MPa
GMA-301 98 80 70 34 1.5 0.1-1MPa
GMA-311 120 102 94 60 0.8 0.1-1MPa
GMA-32 140 93.2 83.2 56 1 0.1-1MPa
GMA-33 184 167 155 80 1 0.1-1MPa
GMA-34 216 170 142 40 1.1 0.1-1MPa
GMA-SMI 118 108 100 72 0.9 0.1-1MPa
GMA-SM2 95 87 80 90 0.9 0.1-1MPa
GMA-ST 155 137 110 128 0.8 0.1-1MPa
