Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder

  • Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder
  • Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder
  • Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder
  • Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 50 PCS
Price USD 5-150/PCS
Packaging Details PE+carton box
Delivery Time 7~15 working days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Air Pneumatic Actuator Cylinder Valve Rubber Diaphragm Material FKM CR
Application Air Pneumatic Actuator Cylinder Thickness 0.5-5mm
Size 20, 201, 21S, 34, SM1, SM2, ST Model MF, ECOTROL, ARCA811/812, KOSO, Fisher, Etc.
High Light

FKM CR Valve Rubber Diaphragm

,

Industrial Rolling Pump Rubber Diaphragm

,

Air Pneumatic Actuator Cylinder Diaphragm
Leave a Message
Product Description

Industrial Valve Rubber Diaphragm Rolling Pump Diaphragm Air Pneumatic Actuator Cylinder Valve Rubber Diaphragm





Air Pneumatic Actuator Cylinder Valve Rubber Diaphragm Quick details:



Product Materials NBR,NR, etc.
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario



Gas pressure regulator


​

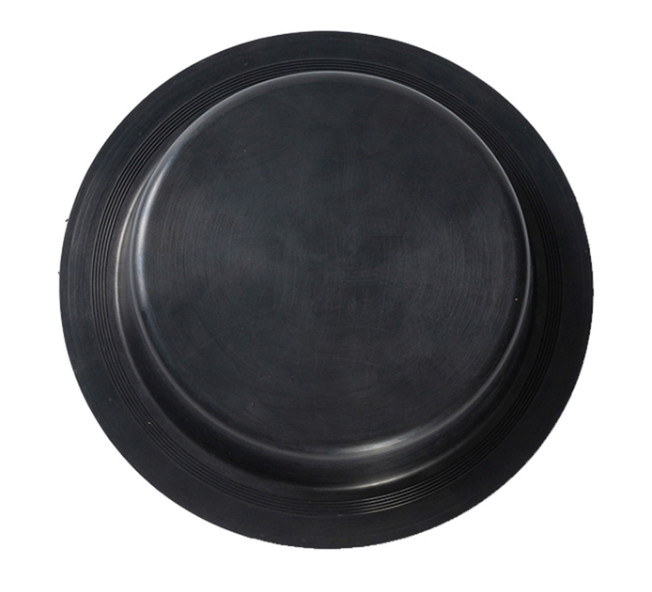

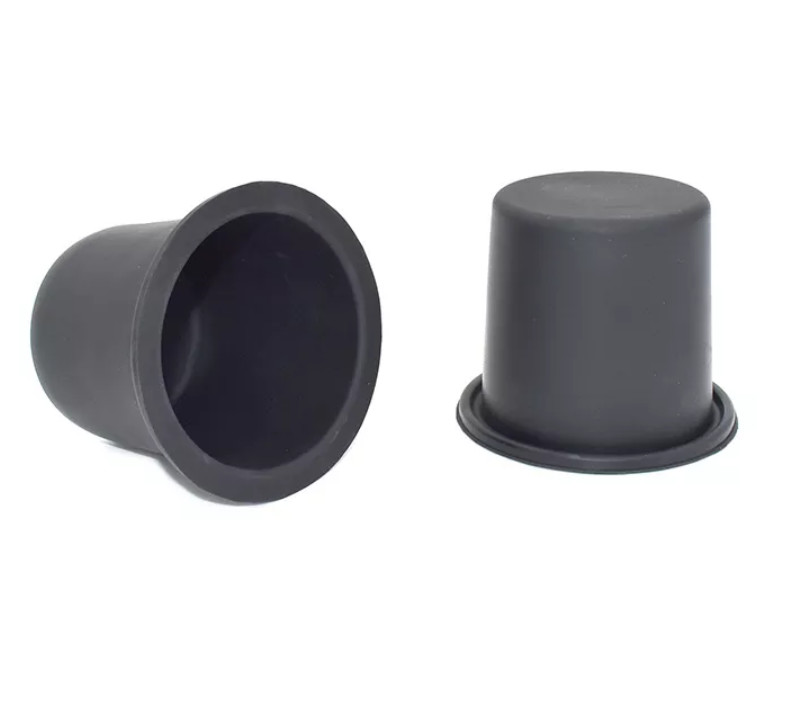

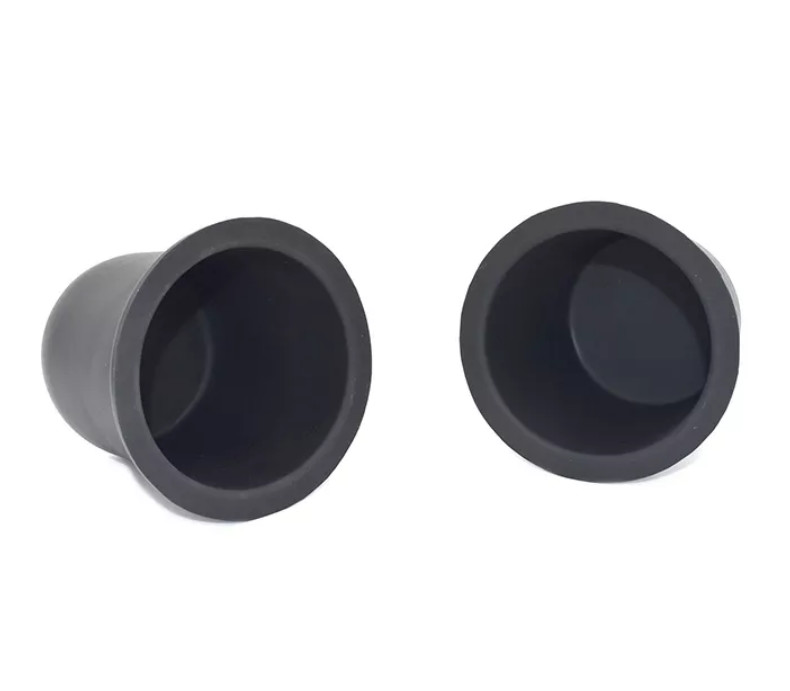

Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder 0Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder 1Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder 2Industrial Rolling Pump Valve Rubber Diaphragm For Air Pneumatic Actuator Cylinder 3



Air Pneumatic Actuator Cylinder Valve Rubber Diaphragm Introduction:



In the design of some medium and low pressure regulators, in order to solve the problem of unbalanced pressure regulating valve disc and improve the performance of the pressure regulator, the method of installing a balance diaphragm is often used. When a balancing diaphragm is installed, the differential pressure between the inlet pressure and the outlet pressure of the regulator can be increased. In the regulator industry, it is called a balance diaphragm in terms of use, and it is called a rolling diaphragm in the rubber, instrument, machinery and other industries.
The rolling diaphragm is in the shape of a top hat in the free state. It is made of rubber with silk cloth. The top middle hole is used to install the valve stem. In order to install, fix and seal, the top and bottom can have O-ring edges. Or in the form of fixing holes around the bottom edge.





Valve Rubber Diaphragm Series:



• ZMA-1#, ZMA-2#, ZMA-3#, ZMA-4#, ZMA-5#, ZMA-6#AB type ZMA regulating valve diaphragm
• ZHA22#, 23#, 24#, 34#, 45#, 56# small ZHA series regulating valve diaphragm
• HA-1, HA-2, HA-3, HA-4, HA-5, CV3000 series control valve diaphragm
• 20, 201, 21S, 34, SM1, SM2, ST series GMA high pressure rolling diaphragm
• MF2, MF3, MF4, MF5, etc. MF, ECOTROL series multi-spring actuator diaphragm
• 811-U series, 812-MFI-20, 812-MFI-30, 812-MFIII-30, 812-MFIII-60 and other ARCA diaphragms
• KOSO 5200LA series diaphragm 5221, 5227, 5235, 524S, 524L, 524E, 526S, 526L
• Fisher Series 657, 667 Series Pneumatic Film Actuator Diaphragms
• 657-30#, 657-34-40#, 657-45-50#, 657-46-60#, 657-70#, 657-80#, 657-100#

  667-30#, 667-34-40#, 667-45-50#, 667-46-60#, 667-70#, 667-80#, 667-100#
• ZMA series, ZH series, HA series, MF series





Air Pneumatic Actuator Cylinder Valve Rubber Diaphragm Material details:



For the present, common materials for rolling diaphragm are: natural rubber (NR), nitrile butadiene rubber (NBR), the performance of the two materials can meet the needs of most industrial environments. In special industrial environments (high temperature resistance, acid and alkali resistance) could use EPDM, fluorine rubber (FKM), neoprene rubber (CR) for production, but the cost is relatively high.





Air Pneumatic Actuator Cylinder Valve Rubber Diaphragm Specifications:



Rolling Diaphragm Model

Outer diameter(mm)

Inside diameter(mm)

 Base diameter(mm) Height(mm) Thickness(mm) Pressure
GMA-20 38 22 17 21 0.6 0.1-1MPa
GMA-201 45 40 33 28 0.7 0.1-1MPa
GMA-202 49 37 26 22 0.7 0.1-1MPa
GMA-21S 61 50 39 29 0.7 0.1-1MPa
GMA-21 63 53 43 33 0.7 0.1-1MPa
GMA-22 65 50 45 51 0.7 0.1-1MPa
GMA-23 80 72 55 35 0.7 0.1-1MPa
GMA-24 94 74 64 45 0.7 0.1-1MPa
GMA-31 96 90 79 90 0.8 0.1-1MPa
GMA-301 98 80 70 34 1.5 0.1-1MPa
GMA-311 120 102 94 60 0.8 0.1-1MPa
GMA-32 140 93.2 83.2 56 1 0.1-1MPa
GMA-33 184 167 155 80 1 0.1-1MPa
GMA-34 216 170 142 40 1.1 0.1-1MPa
GMA-SMI 118 108 100 72 0.9 0.1-1MPa
GMA-SM2 95 87 80 90 0.9 0.1-1MPa
GMA-ST 155 137 110 128 0.8 0.1-1MPa





Our service:



1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.





Tags:

Air Compressor Diaphragm

Valve Rubber Diaphragm

Rubber Rolling Diaphragm
