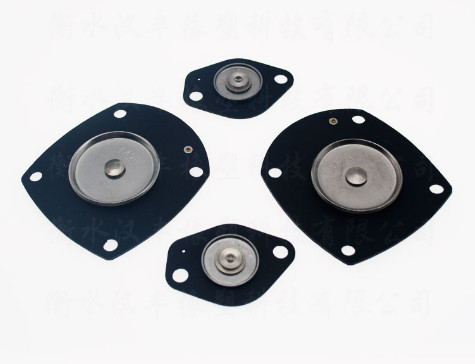

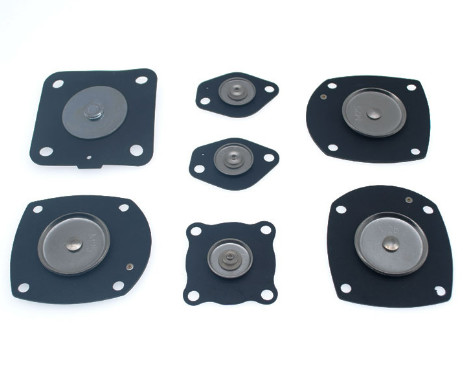

Goyen Pulse Valve Diaphragm Kit CA50T CA62T K5004 K5000 K5002 K5005

K5004 K5000 K5002 K5005 Diaphragm Kit For Goyen Pulse Valve CA50T CA62T

Brief introduction of electromagnetic pulse valve diaphragm:

K5004 (M1638A), K5002 (M1639A), K5005 (M1639A), K5000 Diaphragm for Goyen pulse valve CA50T, RCA50T, CA62T, RCA62T; NBR material is standard, working temperature range is -5 to +80 ℃; material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.

Working principle:

The electromagnetic pulse valve diaphragm divides the pulse valve into two air chambers. When the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, the pulse valve is in a closed state, the pulse controller outputs a signal to move the armature of the pulse valve, the vent hole of the air chamber behind the valve is opened, and the rear air chamber quickly loses pressure, making the The diaphragm moves backward, the compressed air is blown through the outlet of the valve, the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the electromagnetic pilot of the pulse valve is reset, the vent hole of the rear air chamber is closed, and the back When the pressure of the air chamber rises, the diaphragm of the pulse valve is close to the air outlet of the valve, the pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.

Application:

Referred to the dust collector, it applies to waste gas dust filtering of Cement plant, Steel mill, Power station, Electrolytic

aluminium factory, Incineration plant, crushing mixing conveying of Chemical plant, crushing mixing sieving grinding of

Pharmaceutical plant, raw material mixing packing of Paper mill, bagging mixing of Dyeing mill, crushing gagging conveying and mixing of Fertilizer plant, crushing plasticzation conveying of Kilns, sawing polishing filing of Log mill, etc.
