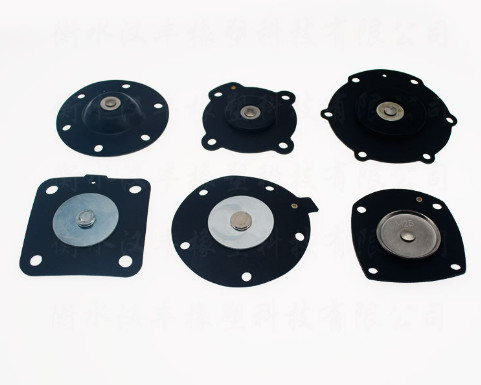

C113443 C113444 Diaphragm For ASCO Pulse Valve SCG353A043 SCG353A044
Brief introduction of electromagnetic pulse valve diaphragm:
The electromagnetic pulse valve diaphragm is a whole piece of rubber diaphragm installed with a riveting head used to block the compressed air pipeline or the air outlet of the blocking valve, a venting unloading hole and a bolt hole for fixed support around it. It is the key control part in the electromagnetic pulse valve.
C113443, C113444, C113-443, C113-444 Diaphragm (Membrane) for ASCO pulse valve SCG353A043, SCG353A044, G353A041, G353A042; TPE, NBR, are all available; Pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Working principle:
The electromagnetic pulse valve diaphragm divides the pulse valve into two air chambers. When the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, the pulse valve is in a closed state, the pulse controller outputs a signal to move the armature of the pulse valve, the vent hole of the air chamber behind the valve is opened, and the rear air chamber quickly loses pressure, making the The diaphragm moves backward, the compressed air is blown through the outlet of the valve, the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the electromagnetic pilot of the pulse valve is reset, the vent hole of the rear air chamber is closed, and the back When the pressure of the air chamber rises, the diaphragm of the pulse valve is close to the air outlet of the valve, the pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.
Ordering Number of Diaphragm For ASCO Pulse Valve:
Valve Port Size | Pulse Valve Model | Diaphragm Model | Diaphragm Material (FKM is also available) |
3/4'' | SCG353A043 | C113444 | TPE (White), NBR (Black) |
1'' | SCG353A044 | ||
3/4'' | SCG353-052 | ||
1'' | SCG353-053 | ||
3/4'' | SGG353A043 | ||
1'' | SGG353A044 | ||
3/4'' | SGG353-052 | ||
1'' | SGG353-053 | ||
1 1/2'' | SCG353A047 | C113827 | NBR |
SGG353A065 | |||
2'' | SCG353A050 | C113685, C113686 | NBR |
2 1/2'' | SCG353A051 | ||
3'' | SCXE353.060 | C123432, C123433 | NBR |
SCG353D060 | |||
3/4'' | G3530A41 | C113443 | NBR |
1'' | G353A042 | ||
3/4'' | G353-055 | ||
1'' | G353-056 | ||
1 1/2'' | G353A045 | C113825 | NBR |
G353-066 | |||
1 1/2'' | G353A046 | C113826 | NBR |
G353A063 | |||
2'' | G353A048 | C113684 | NBR |
2 1/2'' | G353A049 |
Structural properties:
It consists of a single layer or multiple layers coated with glue on both sides, and there are also rubber-free fabrics. According to its shape, the method is divided into membrane pressing method. According to the requirements of use, different rubber materials and diaphragms of different fabrics can be manufactured. The diaphragm has the properties of a blend of nitrile rubber and polysulfide rubber, the properties of the rubber used for the canvas disc diaphragm (commonly called diaphragm), and some silicone rubber, fluororubber, and chlorohydrin rubber developed in recent years.
