Membrane For ASCO Pulse Valve SCG353A043 SCG353A044 G353A041 G353A042
Introduction:

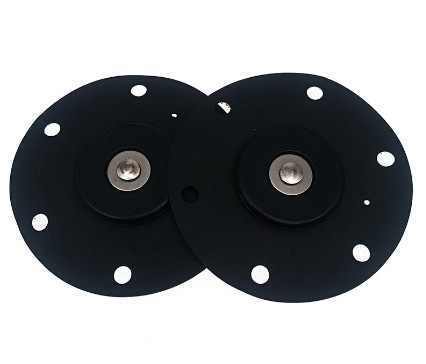

C113443, C113444, C113-443, C113-444 Diaphragm (Membrane) for ASCO pulse valve SCG353A043, SCG353A044, G353A041, G353A042; TPE, NBR, are all available; Pulse valves are the "switch" for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.
Model:
Valve Diaphragms Features:
Fabrication technics of textile makes the product tear resistance stronger
High quality raw materials ensure the excellent performance of the material itself
| Product Materials | NBR,NR |
| Operating Temperature | -20℃~80℃ |
| Service Life | ≥1000000 times |
| Usage Scenario | Bag filter devices /precipitator equipment |
Skills requirement:
Since the electromagnetic pulse valve diaphragm is a flexible mechanism that needs to be opened and closed frequently to control air circulation, it requires not only good flexibility, but also the highest possible sealing performance, so the material of the pulse valve diaphragm is It is directly related to the service life and use effect of the pulse valve diaphragm. In other words, the quality of the pulse valve diaphragm directly affects the working stability of the pulse bag filter dust cleaning system, and is also directly related to the use cost of the dust removal equipment. Generally All pulse valve diaphragms have a promise of service life or the number of actions, and the pulse valve diaphragm used can directly reduce the use cost of dust removal equipment.
Application:
Referred to the dust collector, it applies to waste gas dust filtering of Cement plant, Steel mill, Power station, Electrolytic
aluminium factory, Incineration plant, crushing mixing conveying of Chemical plant, crushing mixing sieving grinding of
Pharmaceutical plant, raw material mixing packing of Paper mill, bagging mixing of Dyeing mill, crushing gagging conveying and mixing of Fertilizer plant, crushing plasticzation conveying of Kilns, sawing polishing filing of Log mill, etc.
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
