M25 Turbo Pulse Valve Diaphragm Kit FP25 DP25 EP25 SQP25 pulse valve diaphragm

  • M25 Turbo Pulse Valve Diaphragm Kit FP25 DP25 EP25 SQP25 pulse valve diaphragm
  • M25 Turbo Pulse Valve Diaphragm Kit FP25 DP25 EP25 SQP25 pulse valve diaphragm
  • M25 Turbo Pulse Valve Diaphragm Kit FP25 DP25 EP25 SQP25 pulse valve diaphragm
  • M25 Turbo Pulse Valve Diaphragm Kit FP25 DP25 EP25 SQP25 pulse valve diaphragm
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number Customized
Minimum Order Quantity 5 PCS
Price USD 5-150/PCS
Packaging Details Poly bag+carton box
Delivery Time 7-15 days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month
Product Details

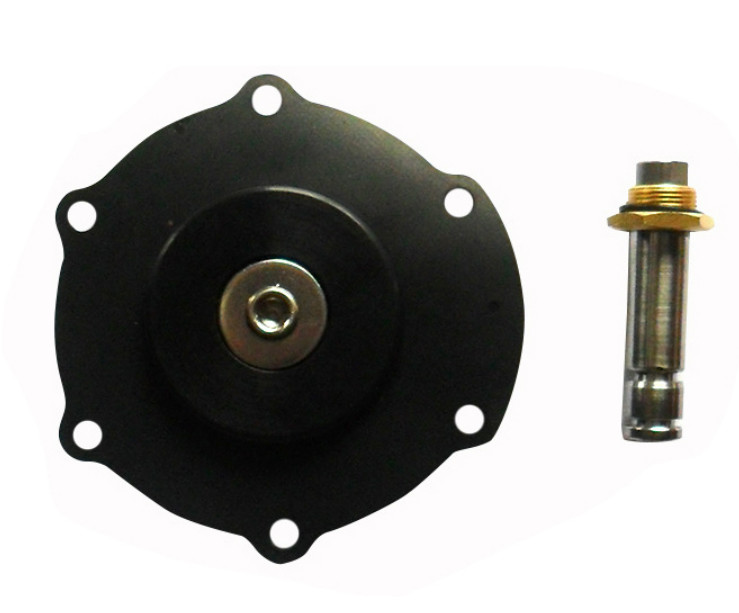

Set 1pc M25 Diaphragm, 1pc Spring Fit Valves FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25
Work Temperature Of Media -20℃~80℃ Materials NBR,
Usage Scenario Precipitator Equipment Service Life More Than 1000000 Times
Highlight

Turbo Pulse Valve Diaphragm Kit

,

M25 Pulse Valve Diaphragm

,

EP25 NBR Diaphragm Kit
Leave a Message
Product Description

M25 Diaphragm Kit For Turbo Pulse Valve FP25 DP25 EP25 SQP25





Introduction:



M25 Diaphragm (Membrane) for Turbo pulse valve FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25; NBR material is standard, working temperature range is -5 to +80 ℃; material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.



Product Materials NBR,NR
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario Bag filter devices /precipitator equipment





Features:



Fabrication technics of textile makes the product tear resistance stronger

High quality raw materials ensure the excellent performance of the material itself



M25 Turbo Pulse Valve Diaphragm Kit FP25 DP25 EP25 SQP25 pulse valve diaphragm 0





Working principle:



The electromagnetic pulse valve diaphragm divides the pulse valve into two air chambers. When the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, the pulse valve is in a closed state, the pulse controller outputs a signal to move the armature of the pulse valve, the vent hole of the air chamber behind the valve is opened, and the rear air chamber quickly loses pressure, making the The diaphragm moves backward, the compressed air is blown through the outlet of the valve, the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the electromagnetic pilot of the pulse valve is reset, the vent hole of the rear air chamber is closed, and the back When the pressure of the air chamber rises, the diaphragm of the pulse valve is close to the air outlet of the valve, the pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.





Application:



Referred to the dust collector, it applies to waste gas dust filtering of Cement plant, Steel mill, Power station, Electrolytic aluminium factory, Incineration plant, crushing mixing conveying of Chemical plant, crushing mixing sieving grinding of Pharmaceutical plant, raw material mixing packing of Paper mill, bagging mixing of Dyeing mill, crushing gagging conveying and mixing of Fertilizer plant, crushing plasticzation conveying of Kilns, sawing polishing filing of Log mill, etc.
