M75 Diaphragm For Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100

  • M75 Diaphragm For Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100
  • M75 Diaphragm For Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100
  • M75 Diaphragm For Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100
  • M75 Diaphragm For Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100
Place of Origin China
Brand Name Hongum
Certification 3A、CE、SGS approval
Model Number M75
Minimum Order Quantity 5 PCS
Price USD 5-150/PCS
Packaging Details Poly bag+carton box
Delivery Time 7-15 days
Payment Terms Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability 5000PCS/Month
Product Details
Product M75 Diaphragm For Turbo Pulse Jet Solenoid Valve Fit Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100
Usage Scenario Precipitator Equipment Work Temperature Of Media -20℃~80℃
Materials NBR, Service Life More Than 1000000 Times
Highlight

Pulse Jet Solenoid Valve Diaphragm

,

FP65 Diaphragm Kit

,

M75 Pulse Valve Diaphragm
Leave a Message
Product Description

M75 Diaphragm For Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100





Introduction:



M75 Diaphragm (Membrane) for Turbo pulse valve FP65, FM65, SQP75, SQM75, SQP100, SQM100; NBR material is standard, working temperature range is -5 to +80 ℃; material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valve has just one moving part - diaphragm. The high speed operation besides saving of compressed air, helps to provide shock air wave for dislodging of dust from filter bags. High flow, long life and fast diaphragm action produce reliable and economical operation.



Product Materials NBR,NR
Operating Temperature -20℃~80℃
Service Life ≥1000000 times
Usage Scenario Bag filter devices /precipitator equipment





Features:



Fabrication technics of textile makes the product tear resistance stronger

High quality raw materials ensure the excellent performance of the material itself

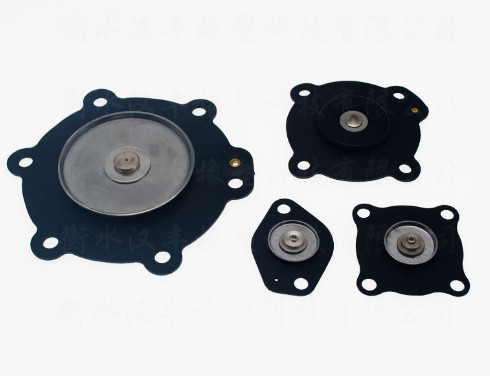

M75 Diaphragm For Turbo Pulse Jet Solenoid Valve FP65 SQP75 SQP100 0





Working principle:



The electromagnetic pulse valve diaphragm divides the pulse valve into two air chambers. When the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, the pulse valve is in a closed state, the pulse controller outputs a signal to move the armature of the pulse valve, the vent hole of the air chamber behind the valve is opened, and the rear air chamber quickly loses pressure, making the The diaphragm moves backward, the compressed air is blown through the outlet of the valve, the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the electromagnetic pilot of the pulse valve is reset, the vent hole of the rear air chamber is closed, and the back When the pressure of the air chamber rises, the diaphragm of the pulse valve is close to the air outlet of the valve, the pulse valve is in the closed state, and the injection stops. The length of the injection time is controlled by the controller.





Application:



Referred to the dust collector, it applies to waste gas dust filtering of Cement plant, Steel mill, Power station, Electrolytic aluminium factory, Incineration plant, crushing mixing conveying of Chemical plant, crushing mixing sieving grinding of Pharmaceutical plant, raw material mixing packing of Paper mill, bagging mixing of Dyeing mill, crushing gagging conveying and mixing of Fertilizer plant, crushing plasticzation conveying of Kilns, sawing polishing filing of Log mill, etc.





Our service:



1. Packaging is neutral packing or customized packing.



2. We will reply you within 24 hours.



3. We will also provide you with good after-sales service.



4. OEM or ODM orders are welcomed.



5. Trial orders are acceptable.



6. High quality and factory price.



7. 100% ensured the quality.
