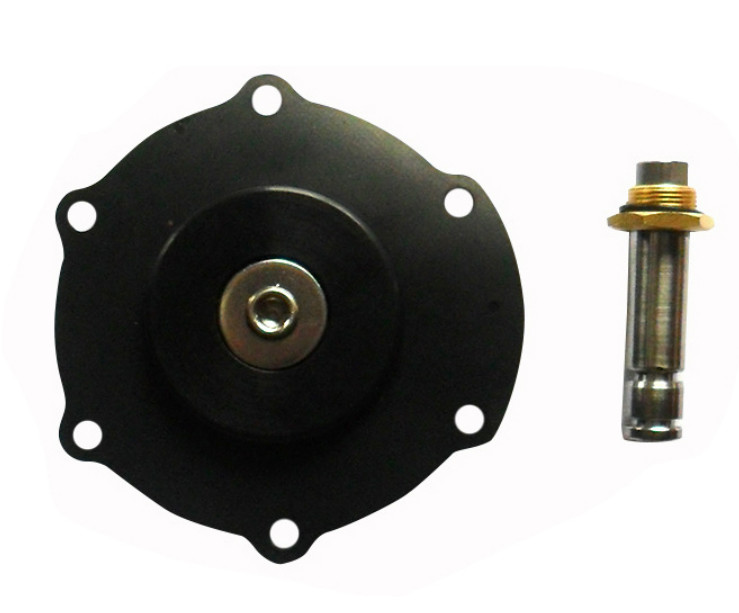

DB18M Diaphragm For Mecair Pulse Jet Solenoid Valve VNP608 VNP708
Brief introduction of electromagnetic pulse valve diaphragm:
The electromagnetic pulse valve diaphragm is a whole piece of rubber diaphragm installed with a riveting head used to block the compressed air pipeline or the air outlet of the blocking valve, a venting unloading hole and a bolt hole for fixed support around it. It is the key control part in the electromagnetic pulse valve.
DB18M Diaphragm ( Membrane ) for Mecair pulse valve VNP608, VEM608, VNP708, VEM708; NBR material is standard, working temperature range is -5 to +80 ℃; material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.
Features:
Fabrication technics of textile makes the product tear resistance stronger
High quality raw materials ensure the excellent performance of the material itself
| Product Materials | NBR,NR |
| Operating Temperature | -20℃~80℃ |
| Service Life | ≥1000000 times |
| Usage Scenario | Bag filter devices /precipitator equipment |
Application:
Referred to the dust collector, it applies to waste gas dust filtering of Cement plant, Steel mill, Power station, Electrolytic
aluminium factory, Incineration plant, crushing mixing conveying of Chemical plant, crushing mixing sieving grinding of
Pharmaceutical plant, raw material mixing packing of Paper mill, bagging mixing of Dyeing mill, crushing gagging conveying and mixing of Fertilizer plant, crushing plasticzation conveying of Kilns, sawing polishing filing of Log mill, etc.
Structural properties:
The operating temperature range and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work under the conditions of -50~100 degrees Celsius and 0.4~0.8MPa; the fluororubber and silicone rubber diaphragms can work under the conditions of -80~232 degrees Celsius. Chlorohydrin rubber diaphragm can work under the pressure of 0.4~0.8MPa, has good air tightness, anti-aging, and its life is equal to that of engine overhaul.
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
