3-12mm Custom Flexible Hose Flange Type Pipe OEM Pressure 0-50MPa

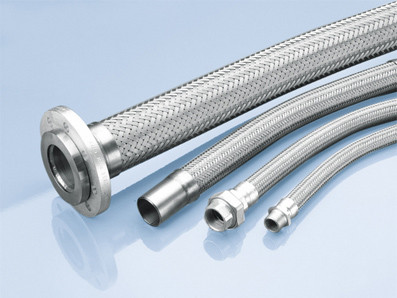

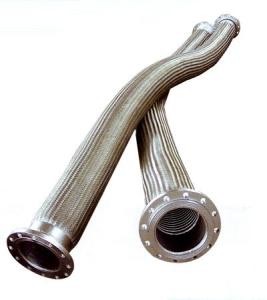

Flanged metal hose:
• The outer net is made of 10 strands of high-strength 304 stainless steel wire, which has a compact structure and high-strength compression resistance. The small-diameter pipe can reach 2.5MPA working pressure, and the large-diameter pipe can reach 1.6MPA working pressure.
• Made of stainless steel 304, with a nickel content of 8%, it has strong corrosion resistance. Long service life, withstand high temperature without deformation and damage.
• The wave spacing is dense, and the weight of the bellows meets the standard. Long fatigue life and long service life. High-quality 304 steel strips are used to make tube blanks, which are resistant to fatigue, high temperature, aging, rust, and leak-proof absorption, which is safer.
Advantage:
1. Strict material selection: product material selection is strict, we refuse to cut corners
2. Rigorous craftsmanship: the surface of the product is smooth, without bumps and black spots, and the structure is reasonable
3. Various specifications: large quantity favorably
Flange standard: Flange defaults to carbon steel, can be customized 304 stainless steel, thickened material, sturdy and durable, precision welding, tight packaging connection.
Explosion-proof and leak-proof: The pipe wall is made of high-quality 304 stainless steel. The pressure-resistance grade of the thick-walled pipe reaches 1.6MPA, which is compressive and explosion-proof. The length is optional, the pipe body is soft, and the tensile performance is strong.
Bending at will: The tube body has the characteristics of high pressure resistance, good explosion-proof flexibility, etc., and can be bent at will.
Specifications:
| Category |
Normal inner diameter (mm) |
Small inner diameter (mm) |
Large outer diameter | Work pressure | Test pressure | Burst pressure | Small bending radius | ||
| (mm) | Mpa | PSI | (Mpa) | (Mpa) | Static(mm) | Dynamic(mm) | |||
| High pressure |
4 6 8 10 72 14 18 20 25 32 |
2.5 4.5 6.5 8.5 10 12 16 18 22 30 |
8.5 12 14 16 20 22 26 28 34 42 |
35 23 21 17 15 10 7 |
5071 3332 3043 2463 2175 1449 1014 |
1.5PN | 3PN | >=10DN | ≥2Rj |
| Medium pressure |
4 6 8 10 |
2.5 4.5 8.5 6.5 8.5 |
8.5 12.5 4.5 6.4 |
10 | 1449 | 4PN | |||
|
12 14 18 |
12 14 18 |
20 22 26 |
8.0 | 1159 | |||||
|
20 25 |
20 24 |
28 34 |
6.4 | 927 | |||||
|
32 40 |
32 40 |
42 52 |
4.0 | 579 | |||||
|
4 6 8 10 |
4 6 8 10 |
8.5 12 14 16 |
2.5 | 362 | |||||
| Low pressure |
12 14 18 20 |
2 4 8 10 |
1.6 | 231 | |||||
|
25 32 |
24 32 |
34 42 |
1.0 | 144 | |||||
|
40 50 |
40 50 |
52 64 |
2.5 | 362 | |||||
|
75 100 |
75 100 |
92 22 |
1.6 | 231 | |||||
|
125 150 |
25 50 |
61 93 |
1.0 | 144 | |||||
|
200 250 |
200 250 |
252 302 |
0.8 | 116 | Note: PN, PS, Pb are all values at 20°C |
||||
Q&A
Q: Could you follow the customer's specific requirement?
A: Yes, we could do it according to your specific requirement.
Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.
Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
