High-Quality NBR Rubber Diaphragm Kit DB112 for Dust Collector Pulse Jet Valves

  • High-Quality NBR Rubber Diaphragm Kit DB112 for Dust Collector Pulse Jet Valves
  • High-Quality NBR Rubber Diaphragm Kit DB112 for Dust Collector Pulse Jet Valves
Place of Origin China
Brand Name HONGUM
Model Number DB112
Minimum Order Quantity 10
Price 20
Packaging Details Carton
Delivery Time 3 work days
Payment Terms ,T/T
Supply Ability 10000PCS/Month
Product Details
Model Number DB112 Material NBR+Stainless Steel
Package Carton, Wooden Case, Etc. Advantage Tear Resistance, Aging Resistance
Working Pressure 0.15~0.85MPa Colour Black
Port Size 1.5'' Weight 150 Grams
Diaphragm Number 1 Usage Scenario Precipitator Equipment
Fluid Air Working Temperature -20℃~+100℃
HS Code 8481901000
Highlight

NBR rubber diaphragm kit

,

dust collector pulse valve diaphragm

,

DB112 diaphragm for pulse jet valves
Leave a Message
Product Description


Product Description

Pulse valve diaphragm is one of the core components of pulse valve, which plays the role of air blowing circuit switch in the dust removal system of pulse bag filter. This kind of diaphragm is usually made of rubber cloth or pure rubber, has the characteristics of double-sided pressure bearing, can ensure normal working and long service life in extremely harsh working environment. The working temperature range and pressure range of the diaphragm depend on its glue, fabric and structure, generally working at -20~80ºC, 0.3~0.8MPa, while the fluorine rubber and silicone rubber diaphragm can work at a wider temperature range of -40~220ºC.



Main Dimension


High-Quality NBR Rubber Diaphragm Kit DB112 for Dust Collector Pulse Jet Valves 0


Product Features

1.High strength tear resistance to ensure the flexibility of the diaphragm;

2.Good adhesion and tensile strength to ensure the sealing of the diaphragm;

3.Good corrosion resistance, can be used normally in compressed air containing oil, water and other components.

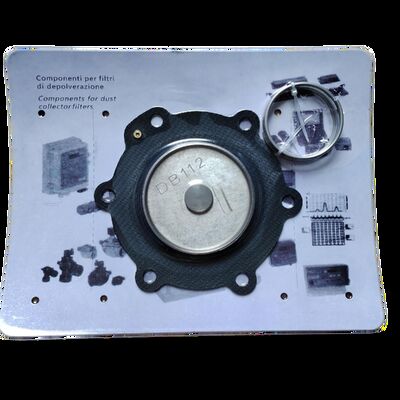

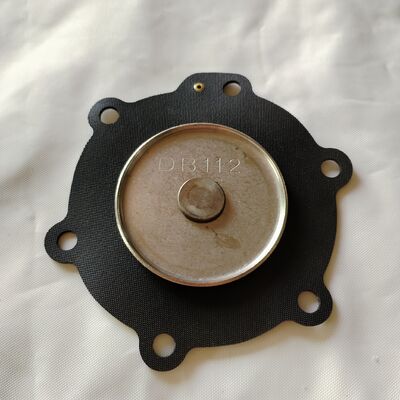

Detailed Photos


High-Quality NBR Rubber Diaphragm Kit DB112 for Dust Collector Pulse Jet Valves 1

High-Quality NBR Rubber Diaphragm Kit DB112 for Dust Collector Pulse Jet Valves 2

High-Quality NBR Rubber Diaphragm Kit DB112 for Dust Collector Pulse Jet Valves 3
