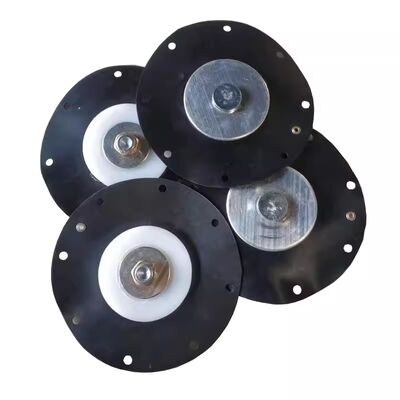

Temperature Range Minus 20 to 150 Degrees Celsius Pulse Valve Diaphragm Polished Surface with 304 Stainless Steel Screws Durable

Product Description:

The Pulse Valve Diaphragm is a critical component designed to ensure optimal performance and reliability in valve systems, particularly those utilizing valve actuators for precise control. Engineered with high-quality materials and meticulous craftsmanship, this valve diaphragm is essential for maintaining the integrity and efficiency of pulse valves across various industrial applications.

One of the standout features of this Pulse Valve Diaphragm is its membrane material, made from Thermoplastic Elastomer (TPE). TPE offers excellent flexibility, durability, and chemical resistance, making it ideal for use in demanding environments where the diaphragm must withstand continuous movement and exposure to various fluids and gases. The TPE membrane ensures a long service life and reduces the need for frequent replacements, thereby minimizing downtime and maintenance costs.

The pressure rating of this valve diaphragm ranges from 0.2 to 0.8 MPa, accommodating a wide array of operating conditions. This pressure tolerance makes the diaphragm suitable for use in systems requiring moderate to high pressure control, ensuring reliable sealing and actuation performance. Whether the application involves pneumatic or hydraulic pulse valves, the diaphragm maintains consistent functionality under varying pressure loads.

Mounting the Pulse Valve Diaphragm is hassle-free thanks to its bolt-on mounting type. This design facilitates easy installation and removal, streamlining maintenance processes and enabling quick diaphragm replacements without the need for specialized tools or extensive downtime. The bolt-on configuration enhances the overall stability and alignment of the diaphragm within the valve actuator assembly, contributing to precise valve operation.

Packaging options for the Pulse Valve Diaphragm are thoughtfully designed to protect the product during transit and storage. The diaphragm is available in sturdy cartons or wooden cases, among other packaging solutions, ensuring that it reaches the customer in pristine condition. This attention to packaging detail reflects the commitment to quality and customer satisfaction, reducing the risk of damage and preserving the diaphragm’s performance characteristics.

The Pulse Valve Diaphragm plays a pivotal role in the function of actuated diaphragms within valve actuators. By acting as a flexible barrier that responds to pressure changes, it enables the valve actuator to modulate fluid flow efficiently. This interaction is vital for applications such as dust collector systems, pneumatic conveying, and other industrial processes where precise valve control is necessary to optimize system performance and longevity.

Furthermore, the versatility of this valve diaphragm makes it compatible with a diverse range of pulse valve models. Whether integrated into new installations or used as a replacement part, the diaphragm meets stringent quality standards and industry requirements. Its robust construction and reliable sealing capabilities ensure that the valve diaphragm consistently delivers high performance, minimizing leaks and enhancing system responsiveness.

In summary, the Pulse Valve Diaphragm with HS Code 8481901000 is an indispensable component in valve actuator assemblies. Its TPE membrane material, pressure rating of 0.2 to 0.8 MPa, and bolt-on mounting type collectively contribute to its durability, ease of installation, and operational efficiency. Packaged securely in cartons or wooden cases, this valve diaphragm is ready to meet the needs of various industrial applications requiring precise and reliable valve control. Choosing this actuated diaphragm ensures enhanced performance, reduced maintenance, and prolonged service life for your pulse valve systems.

Features:

• Product Name: Pulse Valve Diaphragm
• Working Temperature Range: -10~60℃
• Material: Nitrile Rubber (NBR) for durability and flexibility
• Compatibility: Suitable for Pulse Jet Valves ensuring seamless integration
• Screws made of 304 Stainless Steel for enhanced corrosion resistance
• Pressure Rating: 0.2 to 0.8 MPa to meet various operational needs
• Designed as an Actuated Diaphragm for efficient performance
• Optimized for use within Valve Actuation Systems
• Ensures reliable operation in Valve Actuation System applications

Technical Parameters:

Applications:

The HONGUM Pulse Valve Diaphragm is an essential component designed for use in various valve actuation systems, particularly those involving pulse jet valves. Crafted from high-quality nitrile rubber (NBR), this diaphragm offers exceptional durability, flexibility, and resistance to wear, making it ideal for demanding industrial environments. The surface treatment options, including polishing and sandblasting, enhance the diaphragm’s performance by ensuring smooth operation and preventing premature degradation, which is crucial for maintaining the integrity of the valve actuator over extended periods.

This product is highly compatible with a broad range of pulse jet valves, making it a versatile choice for companies seeking reliable valve actuation solutions. The inclusion of 304 stainless steel screws in the assembly ensures robust fastening and corrosion resistance, which is vital for maintaining the diaphragm’s stability and function within the valve actuation system. Packaging options such as cartons and wooden cases protect the diaphragm during transportation and storage, preserving its quality until installation.

Typical application occasions for the HONGUM Pulse Valve Diaphragm include industrial filtration systems, dust collector equipment, pneumatic control systems, and other scenarios where precise valve actuation is required. It is particularly suited for pulse valve actuators that demand rapid and repetitive actuation cycles, as its nitrile rubber composition provides excellent sealing performance and responsiveness. This makes it indispensable in environments where efficient dust removal and air flow control are critical, such as cement plants, power stations, chemical processing facilities, and manufacturing lines.

In scenarios where valve actuation systems are subjected to harsh chemical exposure, temperature fluctuations, or mechanical stress, the HONGUM valve diaphragm’s durable material and advanced surface treatments ensure long-lasting performance and reduced maintenance intervals. Its compatibility with pulse jet valves further extends its usability in automated systems that rely on precise valve diaphragm operation for optimal functionality.

Overall, the HONGUM Pulse Valve Diaphragm is an optimal choice for engineers and maintenance professionals seeking a reliable, high-performance valve diaphragm to enhance the efficiency and longevity of their valve actuation systems. Its superior material properties, meticulous surface treatment, and sturdy construction make it well-suited for a variety of industrial applications requiring dependable valve actuator components.

Customization:

HONGUM offers comprehensive product customization services for the Pulse Valve Diaphragm model PM-60, designed to enhance the performance of your Valve Actuation System. Our actuated diaphragm is crafted with a thickness of 2.5mm to ensure durability and reliable operation within a working temperature range of -10 to 60℃. The diaphragm features 304 stainless steel screws for superior strength and corrosion resistance. We provide various surface treatment options including polishing and sandblasting to meet your specific application requirements. Trust HONGUM to deliver high-quality components tailored to optimize your Valve Actuation System.

Support and Services:

Our Pulse Valve Diaphragm product is designed to deliver reliable performance and long service life in a variety of industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal operation.

We offer detailed documentation and user manuals to help you understand product specifications and proper handling procedures. Our technical support team is equipped to address any questions regarding compatibility, replacement parts, and system integration.

Additionally, we provide repair and refurbishment services to extend the lifespan of your pulse valve diaphragms. Regular inspection and timely replacement are advised to prevent unexpected downtime and maintain system efficiency.

For service inquiries, please refer to the resources provided in the product package or visit our official website for further information on warranty and support policies.

Packing and Shipping:

Product Packaging: Each Pulse Valve Diaphragm is carefully packaged in a protective plastic bag to prevent any damage during transit. The diaphragms are then placed in a sturdy cardboard box with adequate padding to ensure they remain secure and intact. The packaging is labeled with product details, including part number, quantity, and batch information for easy identification.

Shipping: We offer reliable shipping options to ensure timely delivery of your Pulse Valve Diaphragm orders. Products are shipped via trusted courier services with tracking available for all shipments. We take extra care to handle the packages with care during loading and transportation to avoid any damage. Shipping times may vary depending on the destination, and expedited shipping options are available upon request.
