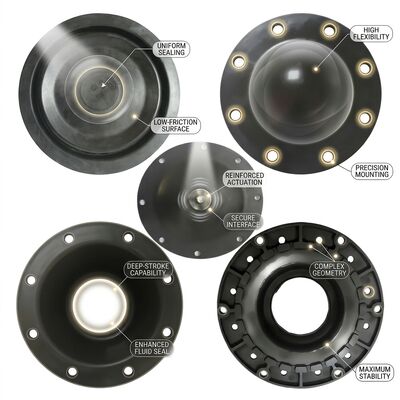

High Precision Plus Minus 0.05mm Tolerance Valve Rubber Diaphragm Laser Measured Injection Molded

  • High Precision Plus Minus 0.05mm Tolerance Valve Rubber Diaphragm Laser Measured Injection Molded
Place of Origin Guangdong, China
Brand Name WNRLN
Certification ISO 9001:2015
Model Number VRD-PREC-05
Minimum Order Quantity 100 Pieces
Price USD 2.50-15.00 / Piece
Packaging Details Individual tray packaging for dimensional protection, export-grade carton
Delivery Time 7-10 days for stock, 20-25 days for production
Payment Terms T/T, L/C, PayPal, Western Union
Supply Ability 40000 Pieces per Month
Product Details
Tolerance +/-0.05mm Critical Inspection Laser Measurement 100%
Process Precision Injection Molding CPK 1.67 Minimum
Material Options NBR/EPDM/FKM/Silicone Hardness 40-90 Shore A
Highlight

Precision valve rubber diaphragm

,

Laser measured rubber diaphragm

,

Injection molded valve diaphragm
Leave a Message
Product Description

High Precision ±0.05mm Tolerance Valve Rubber Diaphragm

Precision injection molded rubber diaphragm achieving ±0.05mm dimensional tolerance with laser measurement verification. Engineered for critical valve applications where exact dimensional consistency is essential for reliable sealing performance.

Key Features

  • Tolerance: ±0.05mm on critical dimensions
  • Manufacturing: Precision injection molding for superior consistency
  • Inspection: Laser measurement system, 100% dimensional verification
  • Material: Available in NBR, EPDM, FKM, Silicone
  • Hardness: Customer specified, 40-90 Shore A
  • Batch Consistency: CPK ≥1.67 on critical dimensions
  • Surface Finish: Smooth, defect-free molding surface

Applications

Precision metering valves, analytical instrumentation, medical device fluid control, semiconductor gas handling, and laboratory equipment requiring exact diaphragm dimensions.

Quality Assurance

100% laser dimensional inspection with statistical process control (SPC) data. CPK reports available. ISO 9001:2015 certified.
