Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM
  • Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM
  • Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM
  • Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM
  • Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM
Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM

Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM

Place of Origin CHINA
Brand Name HONGUM
Certification SGS CE
Model Number Customized
Product Details
Features:
Ozone Resistance
Name:
Large Diameter Rubber Duct
Aplication:
Extraction Of Dust, Exhaust Gas, Ash
Product Specifications:
6mm-1000mm
Temperature:
-20℃--45℃
Material:
Rubber
Working Pressure:
1kg-10kg
Length:
Customized
Highlight:

Customized Low Pressure Hydraulic Hose

,

1000mm Low Pressure Hydraulic Hose

,

6mm Hydraulic Hose

Payment & Shipping Terms
Minimum Order Quantity
10meters
Price
USD 4-50/Meter
Packaging Details
Colorful Nylon Tape Wrapped Coils / Carton/ Wooden Plante or as Request
Delivery Time
5-20days
Payment Terms
L/C, T/T
Supply Ability
50000 meters per week
Product Description
Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM



1. Product structure:

The cloth conveying hose is composed of an inner rubber layer, a multi-layer cloth winding layer and an outer rubber layer.

The cloth suction hose is composed of an inner rubber layer, a multi-layer cloth winding layer, a spiral steel wire reinforcement layer and an outer rubber layer.



2. Product Features:

The hose has the characteristics of small outer diameter tolerance, excellent oil resistance and heat resistance, light weight, soft and durable hose body, etc. The small burst pressure of the hose is four times the working pressure.



3. Product use:

Various types of cloth conveying (or suction) hoses are made of corresponding materials according to different conveying media. The product structure is reasonable in design, high in quality, and durable. Flexible hoses for various liquid viscous fluids and powdered solids and other material media.

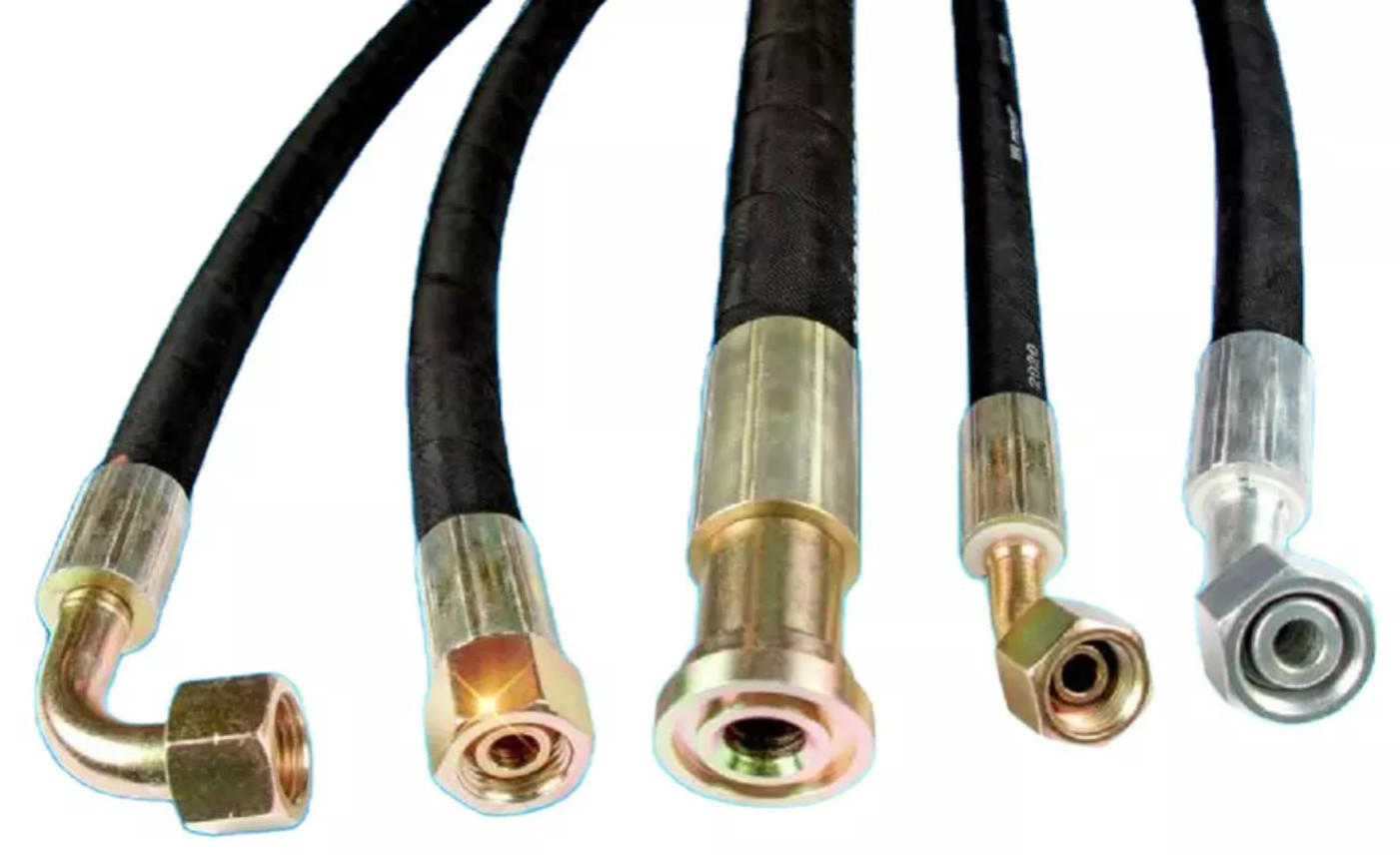

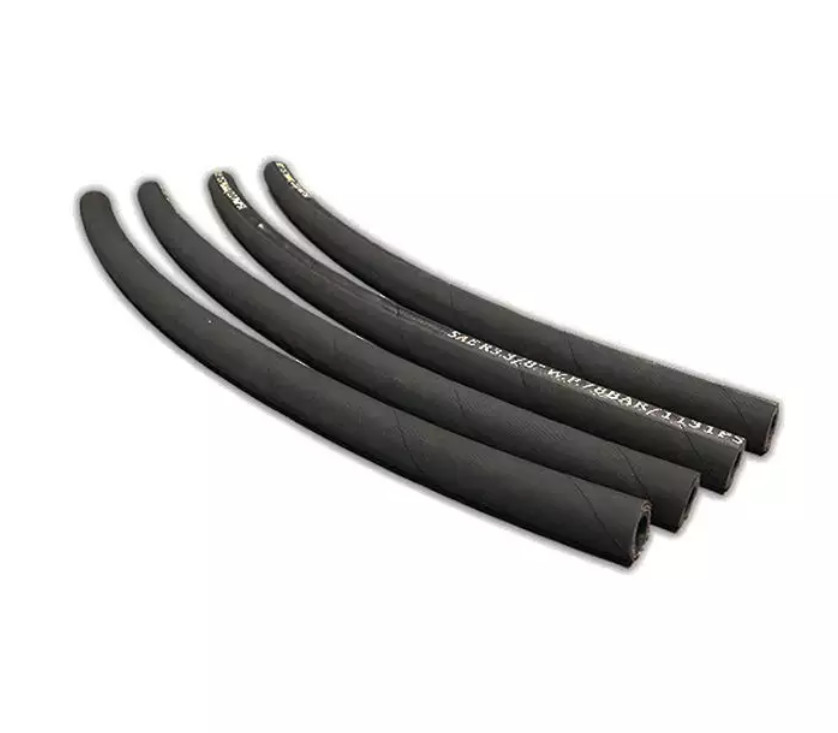

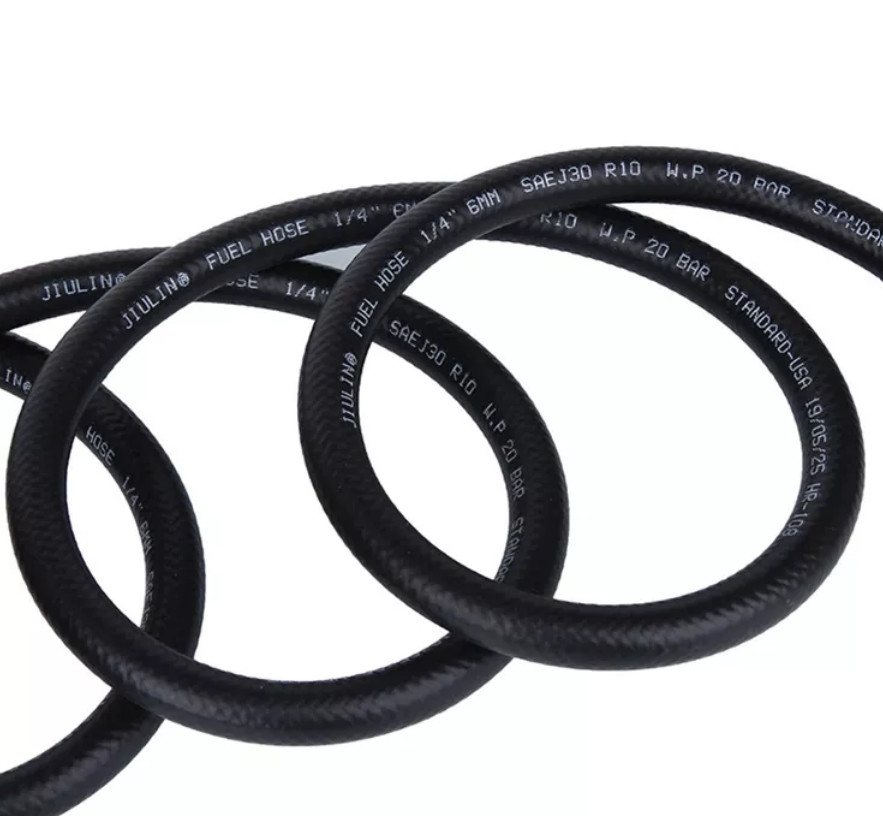

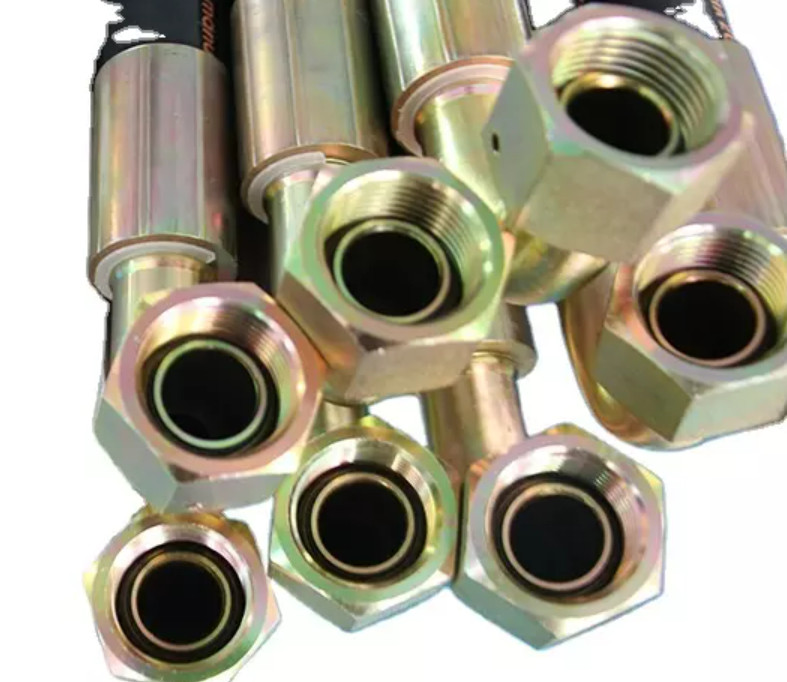

Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM 0Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM 1Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM 2Customized Low Pressure Hydraulic Hose Rubber Duct 6mm-1000mm OEM 3





Quick details:



Category Rubber duct
Product Specifications 6mm-1000mm
Area of Application Extraction of dust, exhaust gas, ash

Length Size

 Can be customized according to engineering requirements
Working Pressure 1kg-10kg





Technical parameters of general-purpose cloth conveying hose and suction hose:



Cloth hose parameters
Inner diameter (mm) Work pressure Corresponding burst pressure Hose length
Nominal size Tolerance (Mpa) (Mpa) Size (m) Tolerance(mm)
13 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
16 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
19 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
25 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
32 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
38 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
51 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
64 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200
76 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200



Suction hose parameters
Inner diameter (mm)

Number of interlayers

(layer)

 Diameter of spiral wire (mm) Pipe joint length (mm) Hose length
Nominal size



Tolerance

 Size Tolerance Size (m) Tolerance(mm)
38 1.2 2 3 2.0 75 10 10 150
51 1.2 3 4 2.6 100 15 10 150
64 1.5 3 4 2.6 100 15 10 150
76 1.5 4 5 2.6 100 15 10 150
89 1.5 4 5 3.2 100 15 10 150
102 2.0 4 5 3.2 125 20 10 150
127 2.0 5 6 3.2 125 20 10 150
152 2.0 5 6 4.0 150 20 10 150
203 2.5 6 7 5.0 200 25 10 150
254 2.5 7 8 5.0 200 25 10 150
305 2.5 7 8 5.0 250 25 10 150





Packing & Delivery

Packing Details :
1. Colorful nylon tape wrapped coils
2. Transparent PVC sea worthy tape wrapped coils
3. Plastic hose reels
4. Wooden hose reels
5. Pallets with hose coils
6. Wooden case with hose coils

Delivery Details :
1. Less than 1000 Meters will delivery within 7days;
2. Less than 5000 Meters will delivery within 10 days.
3. Less than 10000 Meters will delivery within 15 days.
4. One full container will be delivery within 30 days.
