Lightweight High Temperature Resistant Hose Rubber Stainless Steel Braided Steam Hose

  • Lightweight High Temperature Resistant Hose Rubber Stainless Steel Braided Steam Hose
  • Lightweight High Temperature Resistant Hose Rubber Stainless Steel Braided Steam Hose
  • Lightweight High Temperature Resistant Hose Rubber Stainless Steel Braided Steam Hose
  • Lightweight High Temperature Resistant Hose Rubber Stainless Steel Braided Steam Hose
Place of Origin CHINA
Brand Name HONGUM
Certification SGS CE
Model Number Customized
Minimum Order Quantity 10meters
Price USD 4-50/Meter
Packaging Details Colorful Nylon Tape Wrapped Coils / Carton/ Wooden Plante or as Request
Delivery Time 5-20days
Payment Terms L/C, T/T
Supply Ability 50000 meters per week
Product Details
Features Heat Resistance, Lightweight Category Steam Hose / High Temperature Resistant Hose
Aplication Steam, High Temperature Medium, Water Product Specifications 6mm-102mm
Working Temperature Below 170°C Material Rubber
Working Pressure 0-50MPA Length Customized
Highlight

Lightweight High Temperature Resistant Hose

,

102mm High Temperature Resistant Hose

,

Rubber stainless steel steam hose
Leave a Message
Product Description

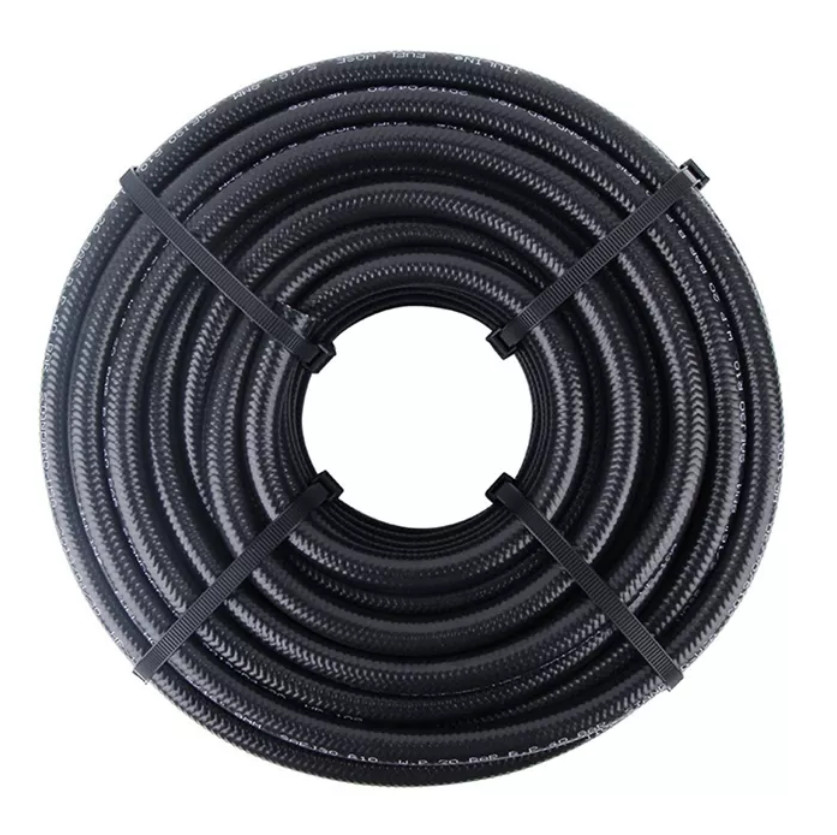

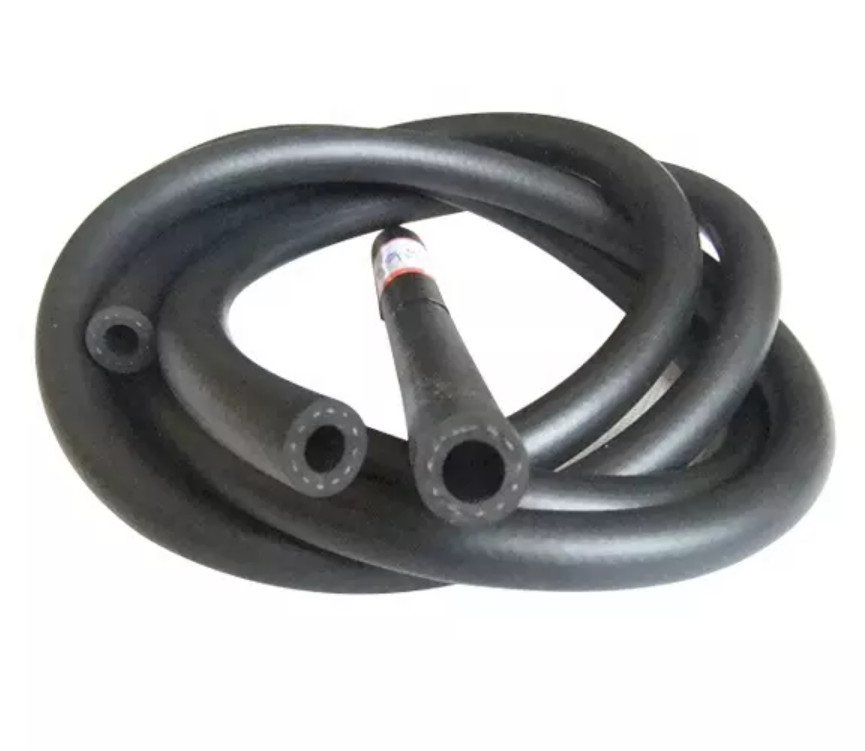

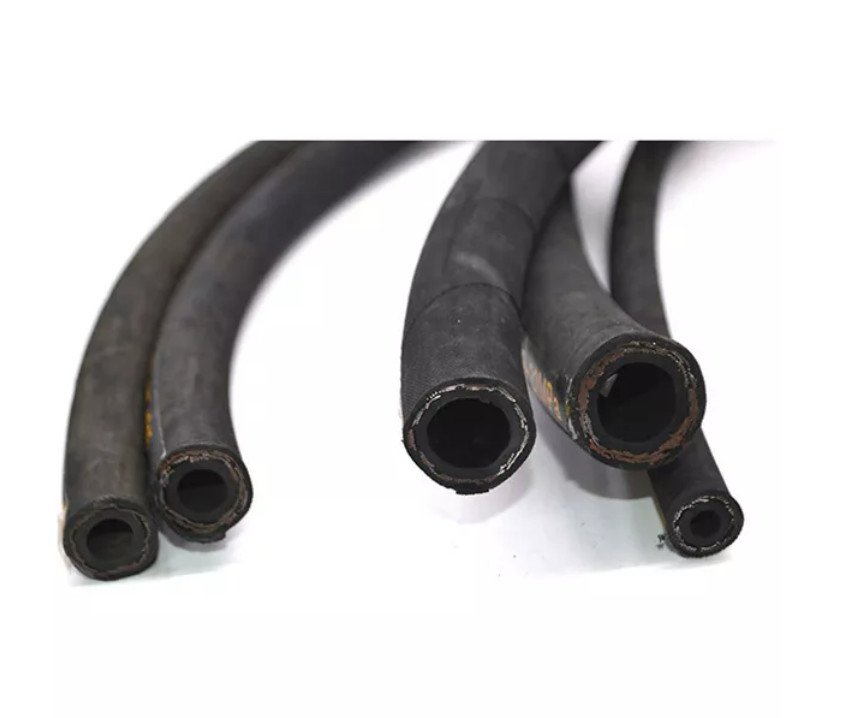

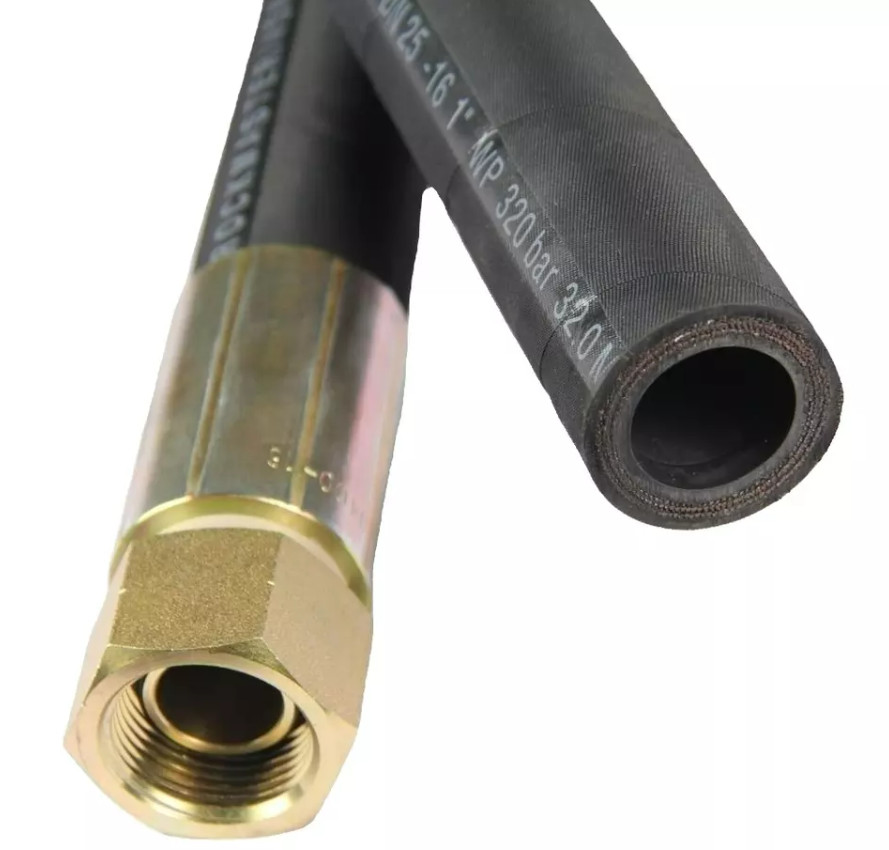

Lightweight High Temperature Resistant Hose Rubber Stainless Steel Braided Steam Hose



1. Product structure:

The cloth conveying hose is composed of an inner rubber layer, a multi-layer cloth winding layer and an outer rubber layer.

The cloth suction hose is composed of an inner rubber layer, a multi-layer cloth winding layer, a spiral steel wire reinforcement layer and an outer rubber layer.



2. Product Features:

The hose has the characteristics of small outer diameter tolerance, excellent oil resistance and heat resistance, light weight, soft and durable hose body, etc. The small burst pressure of the hose is four times the working pressure.



3. Product use:

Various types of cloth conveying (or suction) hoses are made of corresponding materials according to different conveying media. The product structure is reasonable in design, high in quality, and durable. Flexible hoses for various liquid viscous fluids and powdered solids and other material media.



Steel wire braided steam hose

Category Steam Hose / High Temperature Resistant Hose
Product Specifications 6mm-102mm
Application Range Steam, high temperature medium, water
Length Size Can be customized according to engineering requirements
Working Pressure 0-50MPA



Technical parameters of general-purpose cloth conveying hose and suction hose:

Cloth hose parameters
Inner diameter (mm) Work pressure Corresponding burst pressure Hose length
Nominal size Tolerance (Mpa) (Mpa) Size (m) Tolerance(mm)
13 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
16 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
19 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
25 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
32 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
38 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
51 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
64 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200
76 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200



Packing & Delivery

Packing Details :
1. Colorful nylon tape wrapped coils
2. Transparent PVC sea worthy tape wrapped coils
3. Plastic hose reels
4. Wooden hose reels
5. Pallets with hose coils
6. Wooden case with hose coils

Delivery Details :
1. Less than 1000 Meters will delivery within 7days;
2. Less than 5000 Meters will delivery within 10 days.
3. Less than 10000 Meters will delivery within 15 days.
4. One full container will be delivery within 30 days.
