Fluorine EPDM Steam Hose Low Pressure Hydraulic Hose 6mm-1000mm Size

  • Fluorine EPDM Steam Hose Low Pressure Hydraulic Hose 6mm-1000mm Size
  • Fluorine EPDM Steam Hose Low Pressure Hydraulic Hose 6mm-1000mm Size
  • Fluorine EPDM Steam Hose Low Pressure Hydraulic Hose 6mm-1000mm Size
  • Fluorine EPDM Steam Hose Low Pressure Hydraulic Hose 6mm-1000mm Size
Place of Origin CHINA
Brand Name HONGUM
Certification SGS CE
Model Number Customized
Minimum Order Quantity 10meters
Price USD 4-50/Meter
Packaging Details Colorful Nylon Tape Wrapped Coils / Carton/ Wooden Plante or as Requestment
Delivery Time 5-20days
Payment Terms L/C, T/T
Supply Ability 50000 meters per week
Product Details
Features Heat Resistance, Light Weight Category Steam Hose / High Temperature Resistant Hose
Aplication Range High Temperature Medium, Water Product Material Rubber
Specifications 6mm-1000mm Temperature Below 170°C
Highlight

102mm Low Pressure Hydraulic Hose

,

Fluorine Low Pressure Hydraulic Hose

,

EPDM Steam Hose
Leave a Message
Product Description

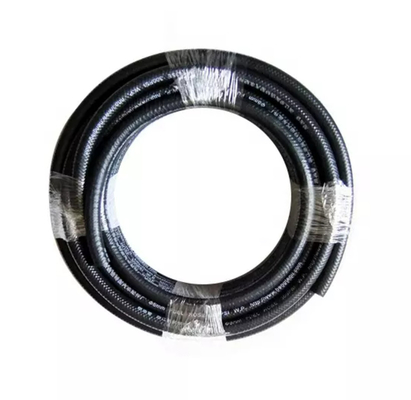

Fluorine EPDM Steam Hose Low Pressure Hydraulic Hose 6mm-1000mm Size

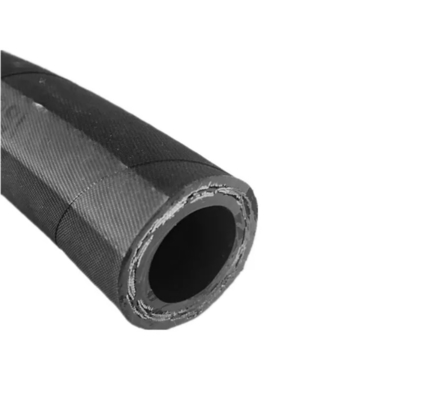

1. Product structure:

The cloth conveying hose is composed of an inner rubber layer, a multi-layer cloth winding layer and an outer rubber layer.

The cloth suction hose is composed of an inner rubber layer, a multi-layer cloth winding layer, a spiral steel wire reinforcement layer and an outer rubber layer.



2. Product Features:

The hose has the characteristics of small outer diameter tolerance, excellent oil resistance and heat resistance, light weight, soft and durable hose body, etc. The small burst pressure of the hose is four times the working pressure.



3. Product use:

Various types of cloth conveying (or suction) hoses are made of corresponding materials according to different conveying media. The product structure is reasonable in design, high in quality, and durable. Flexible hoses for various liquid viscous fluids and powdered solids and other material media.





Quick details:



Category Steam Hose / High Temperature Resistant Hose
Product Specifications 6mm-102mm
Application Range Steam, high temperature medium, water
Length Size Can be customized according to engineering requirements
Working Pressure 0-50MPA





Technical parameters of general-purpose cloth conveying hose and suction hose:

Cloth hose parameters
Inner diameter (mm) Work pressure Corresponding burst pressure Hose length
Nominal size Tolerance (Mpa) (Mpa) Size (m) Tolerance(mm)
13 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
16 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
19 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
25 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
32 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
38 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
51 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
64 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200
76 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200



Suction hose parameters
Inner diameter (mm)

Number of interlayers

(layer)

 Diameter of spiral wire (mm) Pipe joint length (mm) Hose length
Nominal size



Tolerance

 Size Tolerance Size (m) Tolerance(mm)
38 1.2 2 3 2.0 75 10 10 150
51 1.2 3 4 2.6 100 15 10 150
64 1.5 3 4 2.6 100 15 10 150
76 1.5 4 5 2.6 100 15 10 150
89 1.5 4 5 3.2 100 15 10 150
102 2.0 4 5 3.2 125 20 10 150
127 2.0 5 6 3.2 125 20 10 150
152 2.0 5 6 4.0 150 20 10 150
203 2.5 6 7 5.0 200 25 10 150
254 2.5 7 8 5.0 200 25 10 150
305 2.5 7 8 5.0 250 25 10 150





Our service:



1. Packaging is neutral packing or customized packing.



2. We will reply you within 24 hours.



3. We will also provide you with good after-sales service.



4. OEM or ODM orders are welcomed.



5. Trial orders are acceptable.



6. High quality and factory price.



7. 100% ensured the quality.





Q&A:



Q: Could you follow the customer's specific requirement?

A: Yes, we could do it according to your specific requirement.

Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.

Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.

Q: Do you accept small quantity order?
A: Of course we do.

Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
