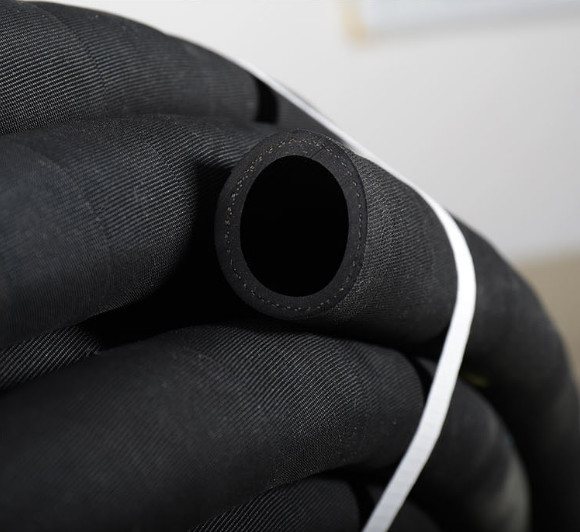

Rubber Ventilation Telescopic Low Pressure Hydraulic Hose Customized Size 6mm-1000mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | HONGUM |
| Certification | SGS CE |
| Model Number | Customized |
| Minimum Order Quantity | 10meters |
| Price | USD 5-40/Meter |
| Packaging Details | Colorful Nylon Tape Wrapped Coils / Carton/ Wooden Plante or as Requestment |
| Delivery Time | 5-20days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 meters per week |
Product Details
| Name | Rubber Ventilation Telescopic Low Pressure Hydraulic Hose | Aplication | Extraction Of Dust, Exhaust Gas, Ash |
|---|---|---|---|
| Product Features | Aging Resistance, Ozone Resistance | Specifications | 6mm-1000mm |
| Product Material | Rubber | Working Temperature | -20℃--45℃ |
| Working Pressure | 1kg-10kg | Length Size | Can Be Customized According To Engineering Requirements |
| Highlight | Ventilation Low Pressure Hydraulic Hose,Telescopic Low Pressure Hydraulic Hose,6mm Rubber Hydraulic Hose |
||
Product Description
Rubber Ventilation Telescopic Low Pressure Hydraulic Hose Customized Size 6mm-1000mm
1. Product structure:
The cloth conveying hose is composed of an inner rubber layer, a multi-layer cloth winding layer and an outer rubber layer.
The cloth suction hose is composed of an inner rubber layer, a multi-layer cloth winding layer, a spiral steel wire reinforcement layer and an outer rubber layer.
2. Product Features:
The hose has the characteristics of small outer diameter tolerance, excellent oil resistance and heat resistance, light weight, soft and durable hose body, etc. The small burst pressure of the hose is four times the working pressure.
3. Product use:
Various types of cloth conveying (or suction) hoses are made of corresponding materials according to different conveying media. The product structure is reasonable in design, high in quality, and durable. Flexible hoses for various liquid viscous fluids and powdered solids and other material media.
Quick details:
| Category | Rubber duct |
| Product Specifications | 6mm-1000mm |
| Area of Application | Extraction of dust, exhaust gas, ash |
|
Length Size
|
Can be customized according to engineering requirements |
| Working Pressure | 1kg-10kg |
Specifications:
| Suction hose parameters | ||||||||
| Inner diameter (mm) |
Number of interlayers (layer) |
Diameter of spiral wire (mm) | Pipe joint length (mm) | Hose length | ||||
| Nominal size |
Tolerance |
Size | Tolerance | Size (m) | Tolerance(mm) | |||
| 38 | 1.2 | 2 | 3 | 2.0 | 75 | 10 | 10 | 150 |
| 51 | 1.2 | 3 | 4 | 2.6 | 100 | 15 | 10 | 150 |
| 64 | 1.5 | 3 | 4 | 2.6 | 100 | 15 | 10 | 150 |
| 76 | 1.5 | 4 | 5 | 2.6 | 100 | 15 | 10 | 150 |
| 89 | 1.5 | 4 | 5 | 3.2 | 100 | 15 | 10 | 150 |
| 102 | 2.0 | 4 | 5 | 3.2 | 125 | 20 | 10 | 150 |
| 127 | 2.0 | 5 | 6 | 3.2 | 125 | 20 | 10 | 150 |
| 152 | 2.0 | 5 | 6 | 4.0 | 150 | 20 | 10 | 150 |
| 203 | 2.5 | 6 | 7 | 5.0 | 200 | 25 | 10 | 150 |
| 254 | 2.5 | 7 | 8 | 5.0 | 200 | 25 | 10 | 150 |
| 305 | 2.5 | 7 | 8 | 5.0 | 250 | 25 | 10 | 150 |
Q&A:
Q: Could you follow the customer's specific requirement?
A: Yes, we could do it according to your specific requirement.
Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.
Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
