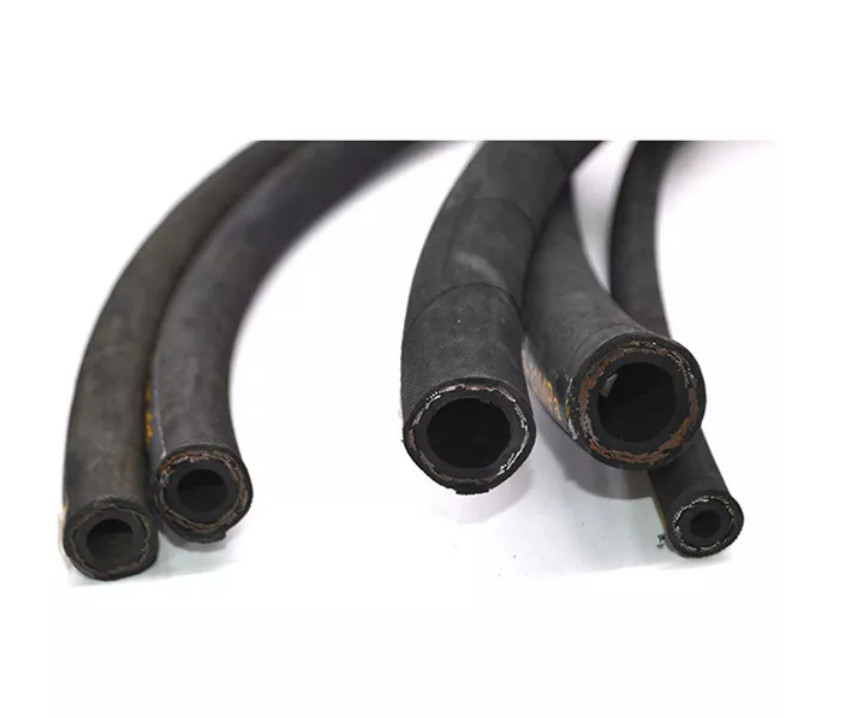

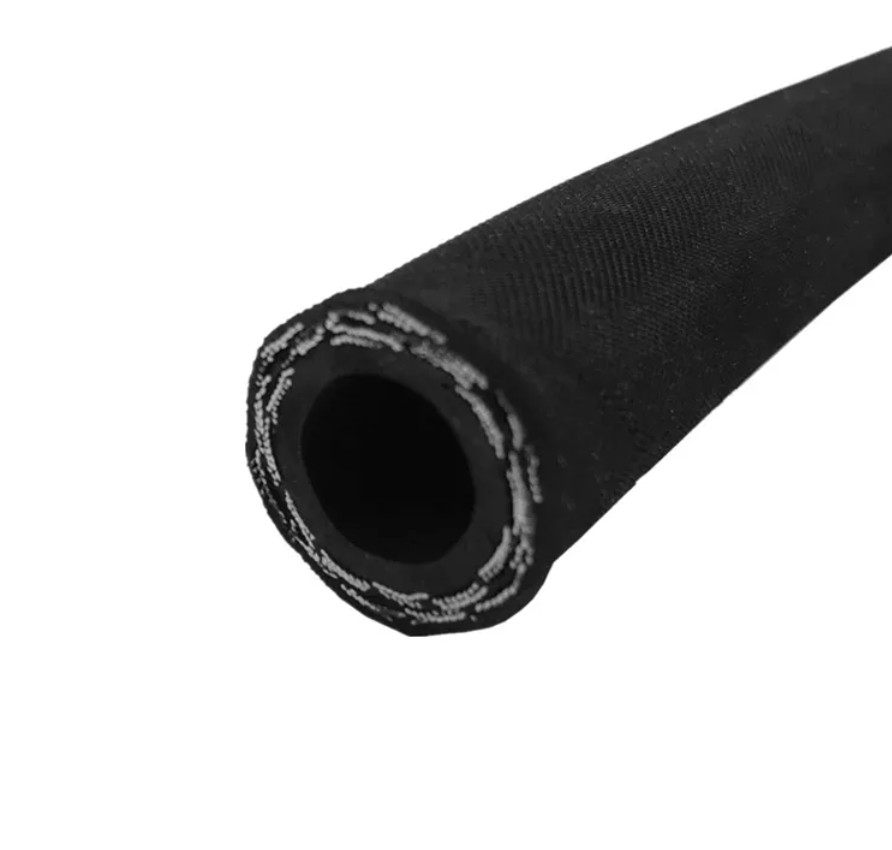

Air hose, also known as compressed air hose, rubber duct, air belt, etc.
Uses: Widely used in mining, construction, engineering, shipbuilding, steel production and other industries to transport air, inert gas and water. , details:
Tube: NR and SBR synthetic rubber, black.
Reinforcing layer: high-strength synthetic fibers, single-layer/double-layer fiber weaving or winding reinforcement.
Cover: NR and SBR synthetic rubber, the color is black or red, yellow, blue, etc.
Performance characteristics: wear resistance, aging resistance, ozone resistance, high pressure bearing, soft, lightweight, good bending performance, small deformation, beautiful appearance.
Temperature range: -20℃~+60℃(-4℉to+140℉).
Quick details:
| Category | Air Hose |
| Product Specifications | 6mm-1000mm |
| Scope of Application | Suction of dust, waste gas, ash, gas extraction |
| Length Size | Can be customized according to engineering requirements |
Specifications:
| Inner diameter (mm) | Outer diameter (mm) | Working pressure (bar) | Burst pressure (bar) | Weight (kg/m) | Length of each roll (m) |
| 12.0 | 30.0 | 10.0 | 30.0 | 0.80 | 120 |
| 16.0 | 24.0 | 10.0 | 30.0 | 0.32 | 120 |
| 20.0 | 30.0 | 10.0 | 30.0 | 0.55 | 120 |
| 22.0 | 32.0 | 10.0 | 30.0 | 0.59 | 120 |
| 25.0 | 34.0 | 10.0 | 30.0 | 0.56 | 120 |
| 30.0 | 41.5 | 10.0 | 30.0 | 0.88 | 120 |
| 30.0 | 42.0 | 10.0 | 30.0 | 0.95 | 120 |
| 35.0 | 48.0 | 10.0 | 30.0 | 1.15 | 120 |
| 40.0 | 54.5 | 10.0 | 30.0 | 1.46 | 120 |
| 45.0 | 61.0 | 10.0 | 30.0 | 1.77 | 120 |
| 51.0 | 69.0 | 10.0 | 30.0 | 2.32 | 120 |
