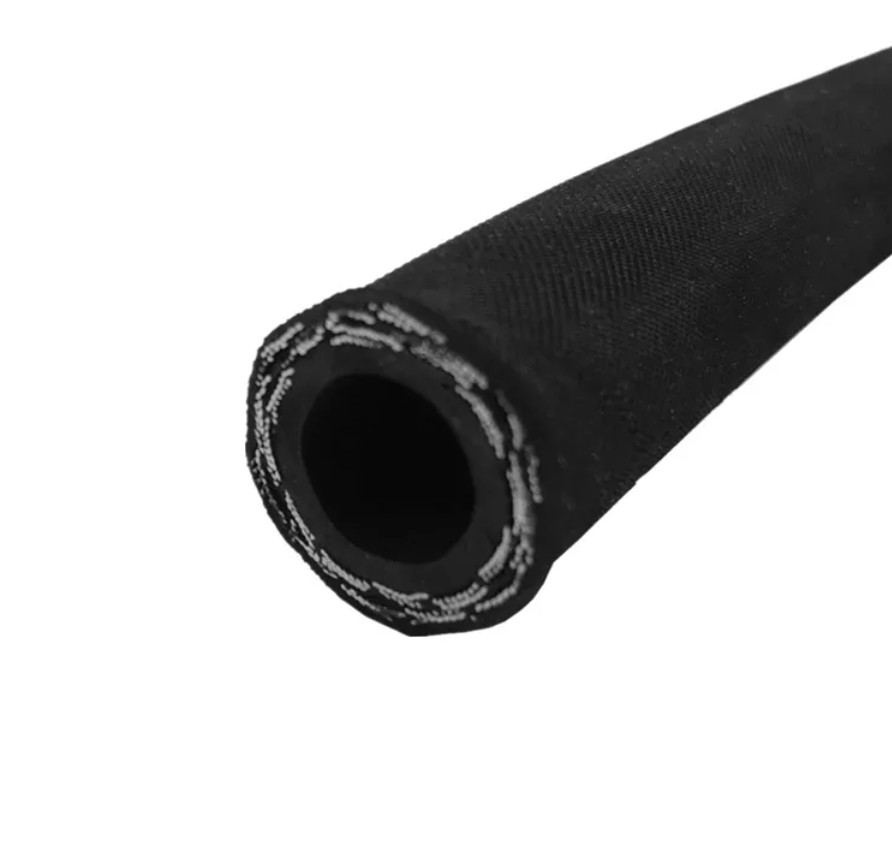

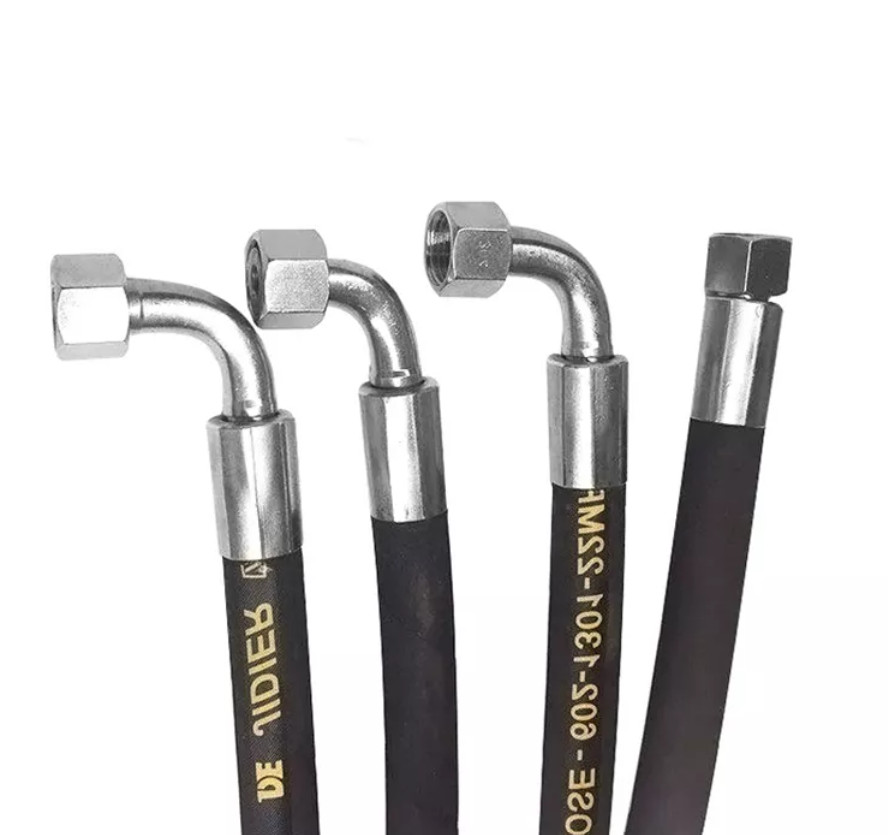

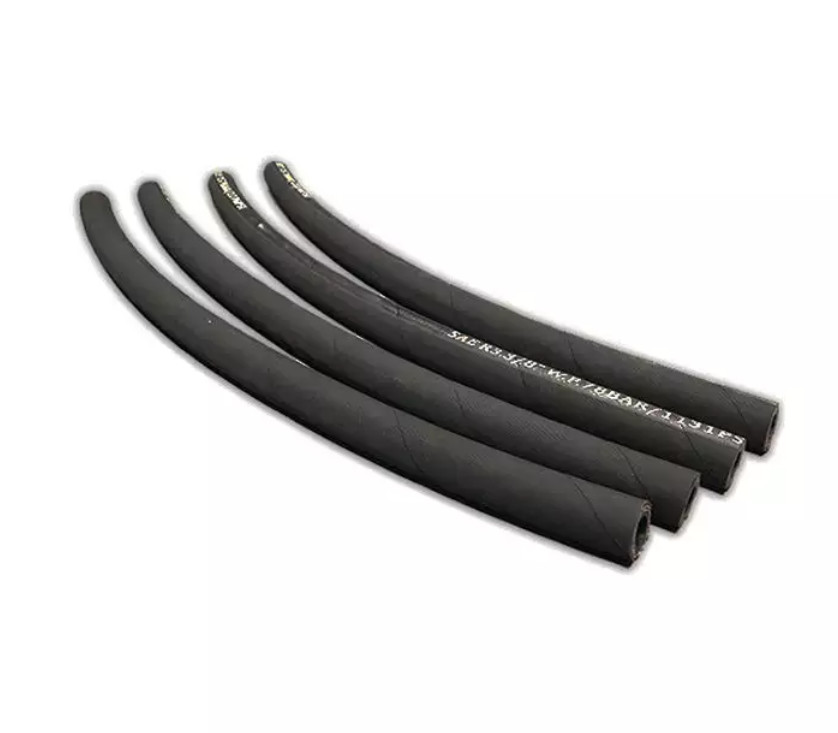

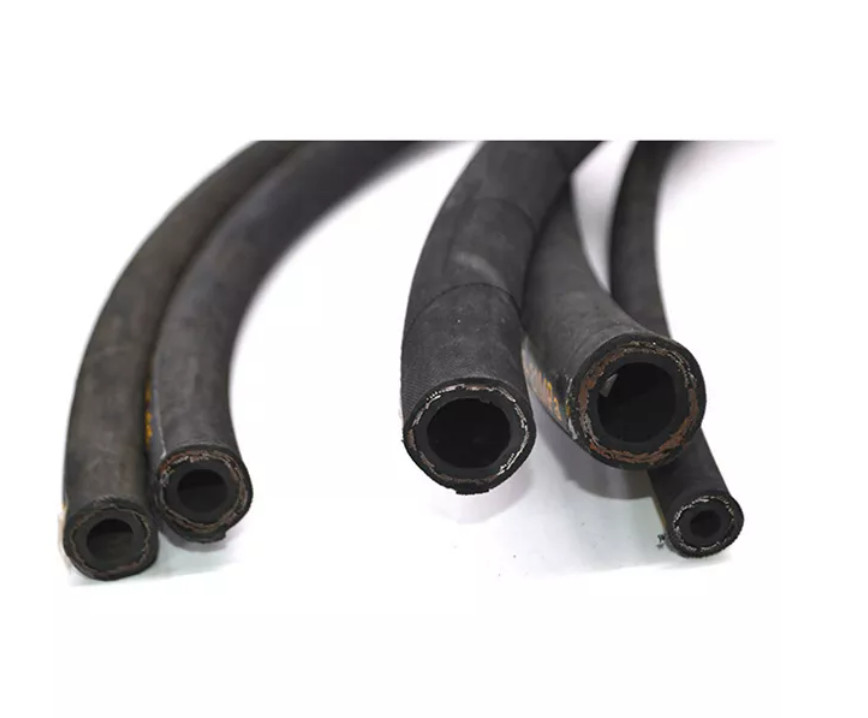

NR SBR Low Pressure Hydraulic Hose Fiber Braided Air Compressor Hose

  • NR SBR Low Pressure Hydraulic Hose Fiber Braided Air Compressor Hose
  • NR SBR Low Pressure Hydraulic Hose Fiber Braided Air Compressor Hose
  • NR SBR Low Pressure Hydraulic Hose Fiber Braided Air Compressor Hose
  • NR SBR Low Pressure Hydraulic Hose Fiber Braided Air Compressor Hose
Place of Origin CHINA
Brand Name HONGUM
Certification SGS CE
Model Number Customized
Minimum Order Quantity 10meters
Price USD 4-50/Meter
Packaging Details Colorful Nylon Tape Wrapped Coils / Carton/ Wooden Plante or as Requestment
Delivery Time 5-20days
Payment Terms L/C, T/T
Supply Ability 50000 meters per week
Product Details
Name Low Pressure Hydraulic Fiber Braided Air Hose Product Characteristics Aging Resistance, Ozone Resistance
Material NR, SBR, Etc Cover Fiber
Product Specifications 6mm-1000mm Working Temperature -20℃~+60℃(-4℉to+140℉)
Color Black Or Customized Length Size Customized
Highlight

NR Low Pressure Hydraulic Hose

,

SBR Low Pressure Hydraulic Hose

,

Steel Braided Air Compressor Hose
Leave a Message
Product Description
NR SBR Low Pressure Hydraulic Hose Fiber Braided Air Compressor Hose


Introduction:


Air hose, also known as compressed air hose, rubber duct, air belt, etc.

Uses: Widely used in mining, construction, engineering, shipbuilding, steel production and other industries to transport air, inert gas and water. , details:

Tube: NR and SBR synthetic rubber, black.

Reinforcing layer: high-strength synthetic fibers, single-layer/double-layer fiber weaving or winding reinforcement.

Cover: NR and SBR synthetic rubber, the color is black or red, yellow, blue, etc.

Performance characteristics: wear resistance, aging resistance, ozone resistance, high pressure bearing, soft, lightweight, good bending performance, small deformation, beautiful appearance.

Temperature range: -20℃~+60℃(-4℉to+140℉).





Quick details:



Category Air Hose
Product Specifications 6mm-1000mm
Scope of Application Suction of dust, waste gas, ash, gas extraction
Length Size Can be customized according to engineering requirements





Specifications:



Inner diameter (mm) Outer diameter (mm) Working pressure (bar) Burst pressure (bar) Weight (kg/m) Length of each roll (m)
12.0 30.0 10.0 30.0 0.80 120
16.0 24.0 10.0 30.0 0.32 120
20.0 30.0 10.0 30.0 0.55 120
22.0 32.0 10.0 30.0 0.59 120
25.0 34.0 10.0 30.0 0.56 120
30.0 41.5 10.0 30.0 0.88 120
30.0 42.0 10.0 30.0 0.95 120
35.0 48.0 10.0 30.0 1.15 120
40.0 54.5 10.0 30.0 1.46 120
45.0 61.0 10.0 30.0 1.77 120
51.0 69.0 10.0 30.0 2.32 120





Inside Diameter mm

Working Pressure

MPa

Corresponding Burst Pressure

MPa

 Length of Hose

Nominal Size

Tolerance

Size

m

Tolerance

mm
13 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
16 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
19 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
25 0.8 0.5 0.7 1.0 2.0 2.8 4.0 20 200
32 1.2 0.3 0.5 0.7 1.2 2.0 2.8 20 200
38 1.2 0.3 0.5 0.7 1.2 2.O 2.8 20 200
51 1.2 0.3 0.5 0.7 1.2 2.O 2.8 20 200
64 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200
76 1.5 0.3 0.5 0.7 1.2 2.0 2.8 20 200





Our service:



Q: Could you follow the customer's specific requirement?

A: Yes, we could do it according to your specific requirement.

Q: What are your payment terms?
A: T/T (50% as desposit paid, the rest 50% will be paid before delivery), L/C at sight, and others you viable, others.

Q: And what's your packing methods?
A: Wrap the products with plastic film first, then pack it into wooden cases.

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, in China.

Q: Do you accept small quantity order?
A: Of course we do.

Q: And what are your terms of shipment and delivery?
A: The shipment usually by sea or air.
